308C Excavator Electrical and Electronic System – Alarm Indicator for Engine Oil Pressure Is Illumi

Problem: The alarm indicator for the engine oil pressure is illuminated and the action alarm is activated.

Solution: Check that the following connectors and components are connected properly: “CONN 40”, “CONN 46” and “CONN 55”. If the problem still exists, use the following procedure to troubleshoot the system.

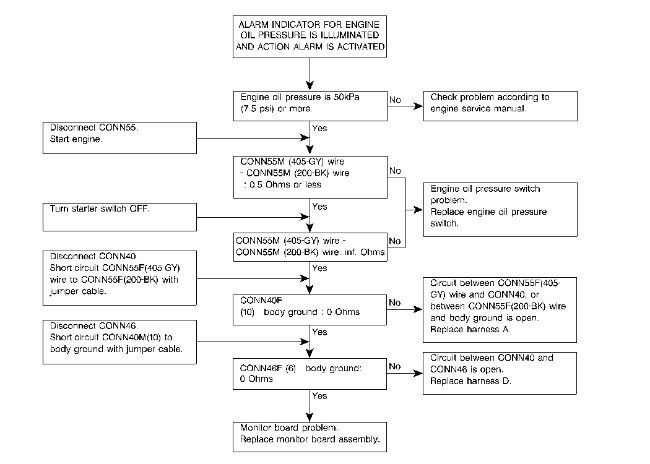

Illustration 1	g00853103

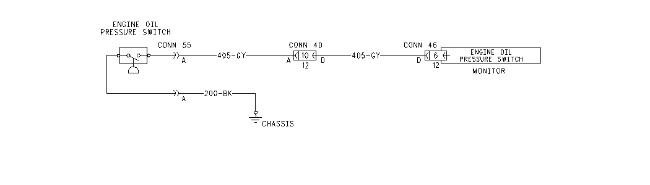

Illustration 2	g00862318
Schematic for “Alarm Indicator for Engine Oil Pressure is Illuminated and Action Alarm is Activated”
