308C Excavator Electrical and Electronic System – High Speed Mode for Travel Does Not Activate – Tr

Problem: The high speed mode for travel does not activate.

Solution: Check that the connectors and components are connected properly: “CONN 2”, “CONN 29”, “CONN 37” and “CONN 60”. If the problem still exists, use the following procedure to troubleshoot the system.

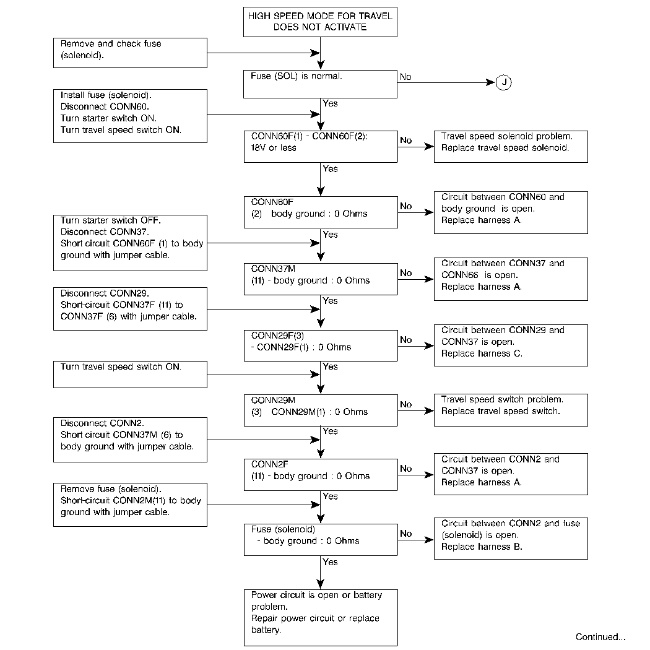

Illustration 1 g00852491

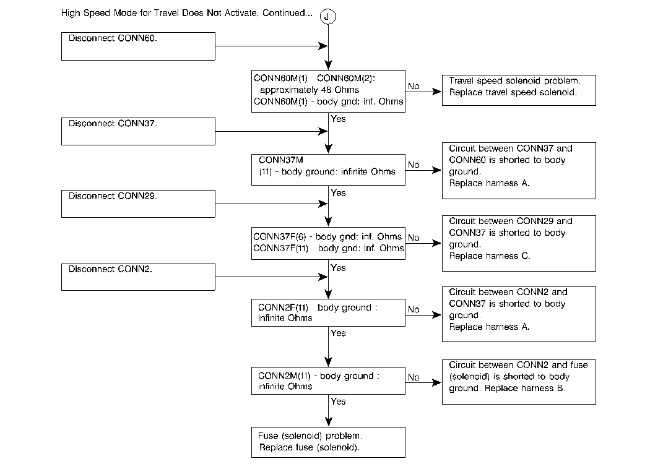

Illustration 2 g00852493

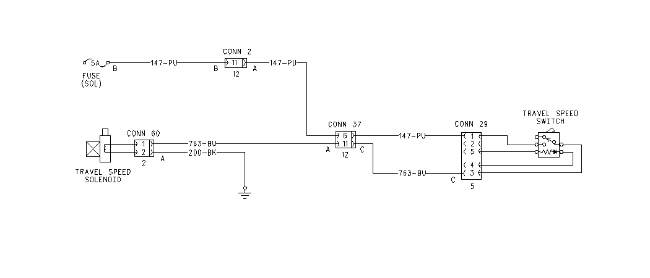

Illustration 3 g00861867

Schematic for “High Speed Mode for Travel Does Not Activate”
