312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Logged Error Mode

The logged error mode allows a person to view a logged diagnostic code or an error code that was cleared previously.

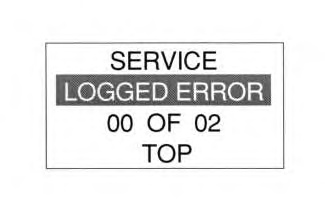

    Illustration 1 g00688124

  1. Enter the service mode. Highlight the second line and scroll through the display by using the keys for direction until the display reads “LOGGED ERROR”. See the illustration above.
  1. The third line will display the errors that were previously logged.

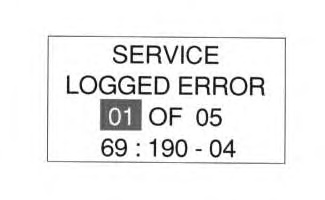

    Illustration 2 g00688148

  1. Highlight the displayed number by using the keys for direction. The area that is highlighted in the illustration shows the number of the error out of the total number of errors. The keys for direction are used in order to scroll through the logged errors.

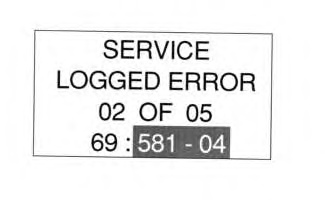

    Illustration 3 g00688213

  1. The area that is highlighted in the above illustration shows the code for the CID and the FMI on the fourth line.

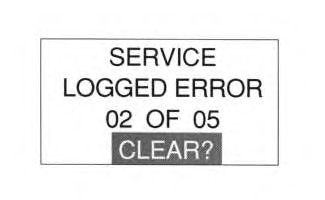

    Illustration 4 g00688236

  1. The display will change to read “CLEAR?” when the setting key is pressed. See the above illustration. Then, press the “OK” key. The error code has been erased and the screen will show the next error. The logged error can also be erased from the screen for setting configurations.
