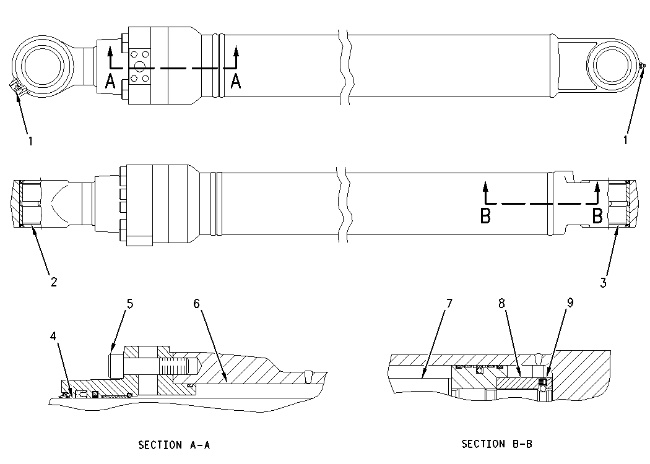

| Illustration 1 | g00761043 |
(1) Torque for two fittings … 9.3 ± 4.9 N·m (82.31 ± 43.37 lb in)
Note: Make sure that the bearings are installed in the bore so that the identification numbers of the bearings are facing outward.
(2) 240-2915 Bushing
- Outside diameter … 95.180 ± 0.013 mm (3.7472 ± 0.0005 inch)
- Inside diameter … 80.20 ± 0.04 mm (3.157 ± 0.002 inch)
- Install the bearing in the bearing bore. … Centered
(3) 163-3748 Sleeve Bearing
- Outside diameter … 85.102 ± 0.011 mm (3.3505 ± 0.0004 inch)
- Inside diameter … 70.11 ± 0.02 mm (2.760 ± 0.001 inch)
- Install the bearing in the bearing bore. … Centered
(4) Bore of head … 90.0 mm (3.54 inch)
(5) Torque for 12 bolts … 367 ± 55 N·m (271 ± 41 lb ft)
(6) Bore of cylinder … 130.0 mm (5.12 inch)
(7) Rod assembly
- Diameter of rod … 90.0 mm (3.54 inch)
- Minimum thickness for plating … 0.03 mm (0.001 inch)
(8) Torque for locknut … 9460 ± 470 N·m (6977 ± 347 lb ft)
(9) After tightening the setscrew (9) , stake the setscrew in two places.
- Torque for setscrew … 57 ± 10 N·m (42 ± 7 lb ft)
