308C CR Excavator Hydraulic System – Blade Cylinder Lines

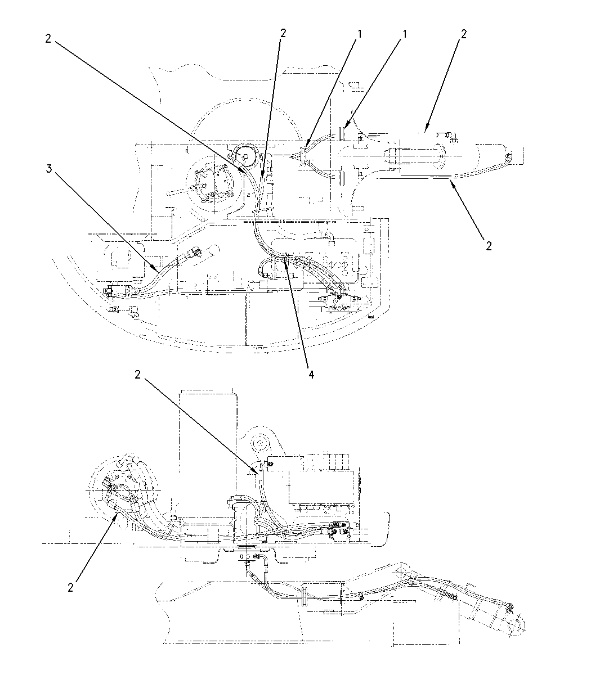

Illustration 1 g00858939

(1) Apply 3M Fastbond Contact Adhesive to the swing frame.

(2) Torque for six hose assemblies … 76 ± 4 N·m (55 ± 3 lb ft)

(3) Torque for one hose assembly … 150 ± 15 N·m (110 ± 11 lb ft)

(4) Blend the corners of the cutting edges of the straps.
