308C CR Excavator Hydraulic System – Boom Cylinder Lines

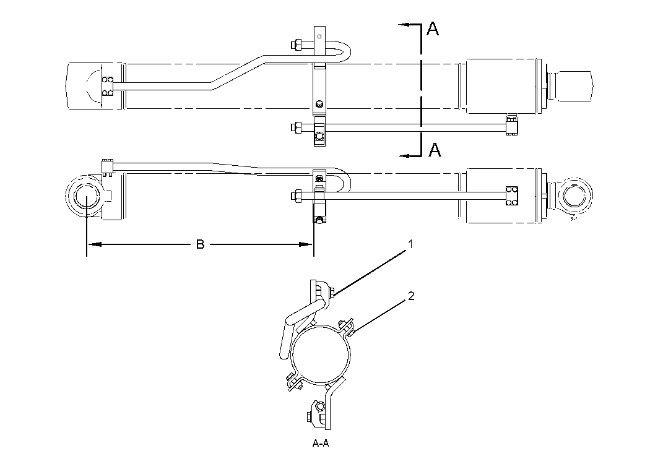

Illustration 1 g01450949

(1) Torque for two bolts … 50 ± 10 N·m (37 ± 7 lb ft)

(2) Torque for two bolts … 39 ± 8 N·m (29 ± 6 lb ft)

(B) Distance from the centerline of the mounting pin to the support assembly … 652 ± 5 mm (25.7 ± 0.2 inch)
