308C CR Excavator Hydraulic System – Swing Motor – Remove

Removal Procedure

Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     6V-9829     Cap As     3
6V-9508 Face Seal Plug     3
6V-9507 Face Seal Plug     1
6V-9828 Cap As     1
6V-9830 Cap As     3
6V-9509 Face Seal Plug     3
B     1U-8222     Sling     2

Note: SERVICE DATA: TOOLING (A) AND TOOLING (B) WILL NOT BE IDENTIFIED IN PHOTOGRAPHS IN THE REMOVAL OR THE INSTALLATION. THIS TOOLING IS SHOWN IN ORDER TO ASSIST THE EXPERIENCED SERVICEMAN.

------ WARNING! ------

Personal injury can result from hydraulic oil pressure and hot oil.

Hydraulic oil pressure can remain in the hydraulic system after the engine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system.

Make sure all of the attachments have been lowered, oil is cool before removing any components or lines. Remove the oil filler cap only when the engine is stopped, and the filler cap is cool enough to touch with your bare hand.

----------------------


NOTICE

Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar Tools and Shop Products Guide” for tools and supplies suitable to collect and contain fluids on Caterpillar products.

Dispose of all fluids according to local regulations and mandates.

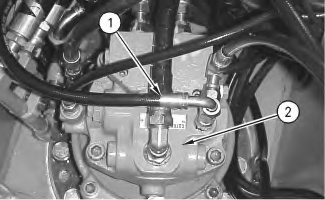

    Illustration 1 g00907765

  1. Disconnect hose assemblies (1) from swing motor (2) .

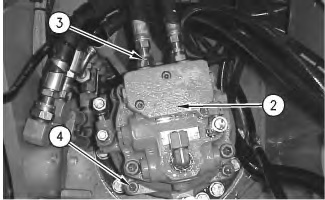

    Illustration 2 g00907769

  1. Disconnect hose assemblies (3) from swing motor (2) .
  1. Remove mounting bolts (4) .

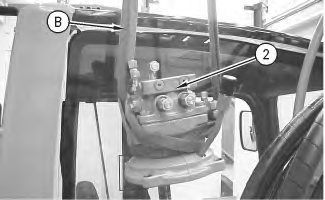

    Illustration 3 g00907770

  1. Install Tooling (B). Remove swing motor (2) .
