308C Excavator Electrical and Electronic System – Chassis Light Does Not Illuminate – Troubleshoot

Problem: The chassis light does not illuminate.

Solution: Check that the following wire terminals and components are connected properly: chassis light, chassis/boom relay, “CONN 4”, “CONN 6”, “CONN 26” and “CONN 37”. If the problem still exists, use the following procedure to troubleshoot the system.

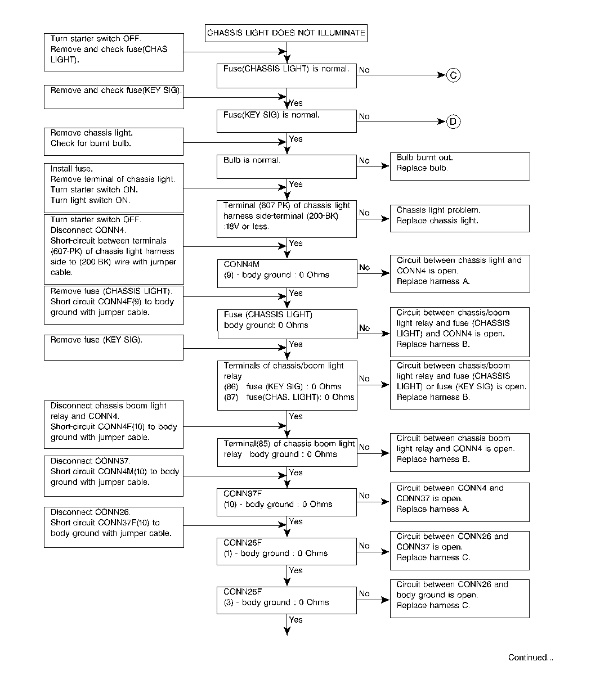

Illustration 1 g00851160

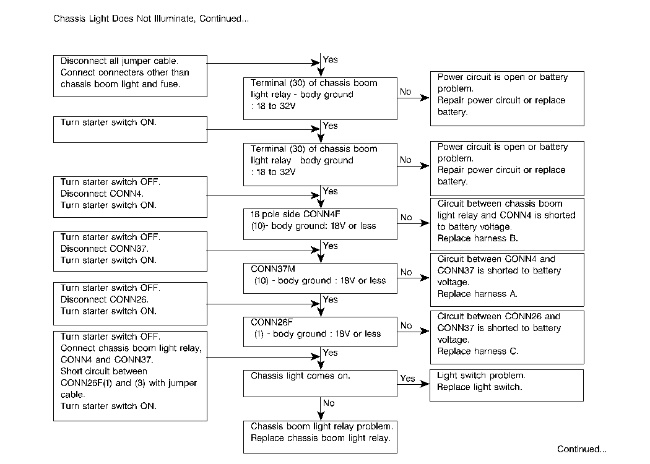

Illustration 2 g00851161

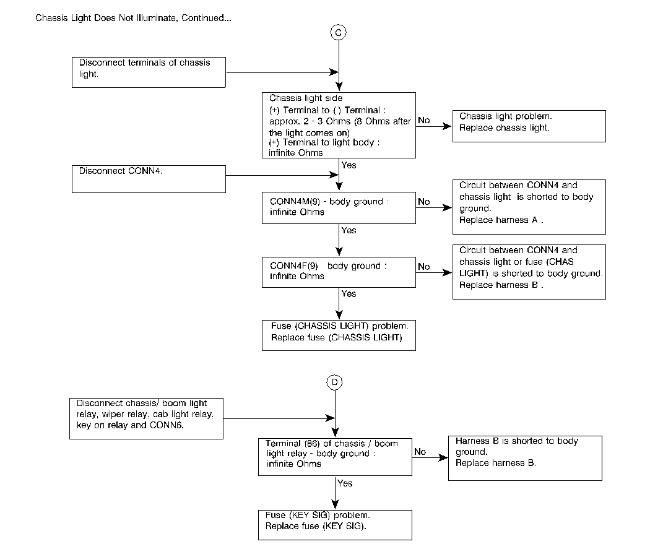

Illustration 3 g00851162

Illustration 4 g00859763

Schematic for “Chassis Light Does Not Illuminate”
