320C and 322C Excavators Attachment Hydraulic System – Boom Cylinder Lines – Left Hand

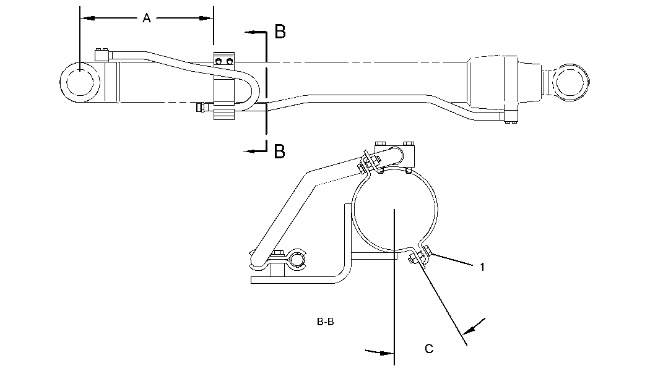

Illustration 1 g02742957
Table 1
Specification for 115-8902 Boom Cylinder Lines Gp
Item     Qty     Part     Specification description
A     –     –     Distance from the centerline of the mounting pin to the support assembly is
480.0 ± 2.0 mm (19.00 ± 0.08 inch).
1     4     8T-4196 Bolt     Torque to
39 ± 8 N·m (29 ± 6 lb ft).
C     –     –     Orient the support assemblies to (30 ± 3 degrees).
