416C, 426C, 428C, 436C and 438C Backhoe Loaders Operation and Maintenance Manual Page 32

Operation and Maintenance Manual
217
Maintenance Section
Hydraulic System Oil - Change

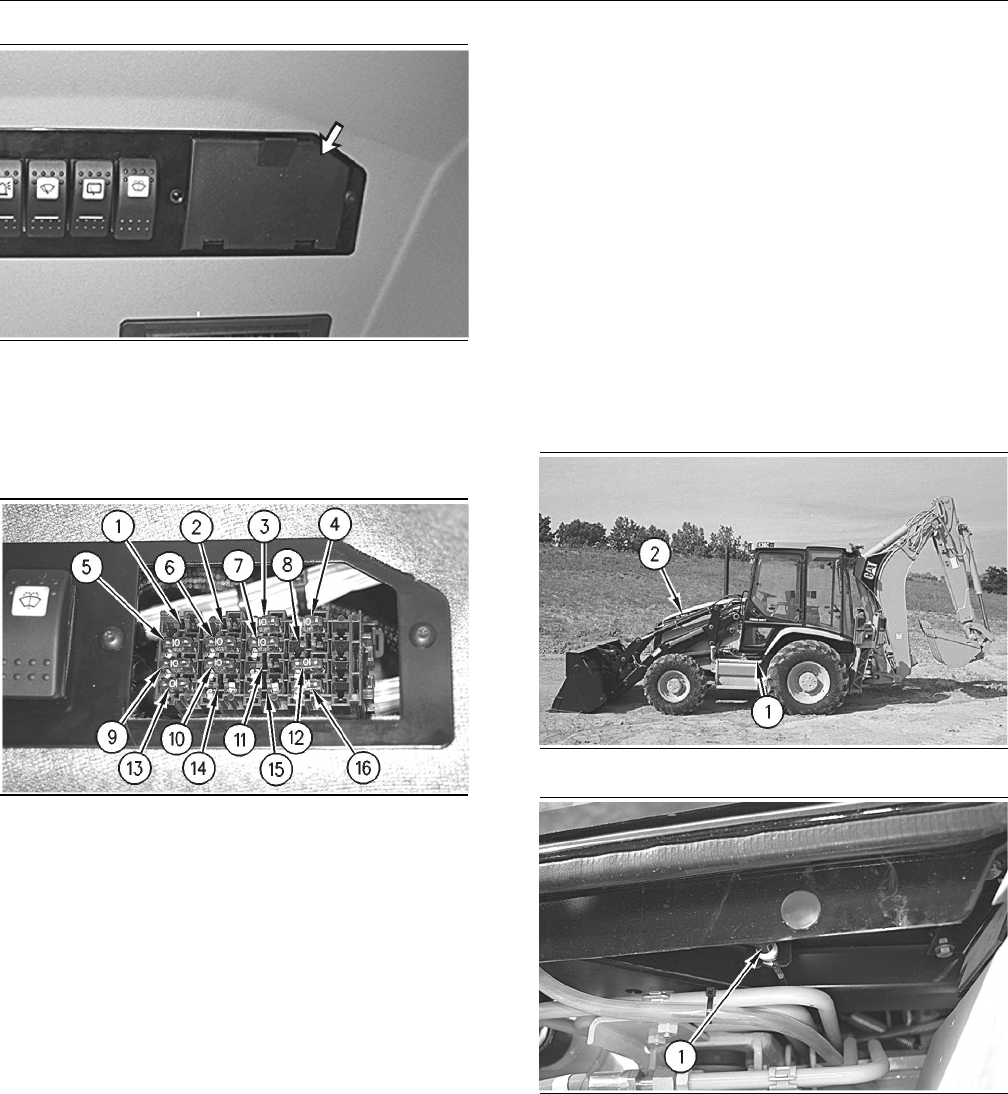

g00287571
Illustration 351
The fuse panel is located in the switch panel on
the headliner of the cab.
Remove the cover in order to access the fuses.
g00287572
Illustration 352
Spare (1) – Open
Spare (2) – Open
Left Tail Light (3) – 10 Amp
Right Tail Light (4) – 10 Amp
Rear Flood Lights (5) – 10 Amp
Auxiliary Rear Flood Lights (6) – 10 Amp
Radio Memory (7) – 10 Amp
Auxiliary Front Flood Lights (8) – 10 Amp
Front Windshield Wiper (9) – 10 Amp
Rear Windshield Wiper (10) – 10 Amp
Spare (11) – Open
Rotating Beacon (12) – 10 Amp
Dome Light (13) – 10 Amp
Radio Power (14) – 10 Amp
Air Conditioner Compressor (15) – 10 Amp
Air Conditioner Blower (16) – 10 Amp
i00611301
Hydraulic System Oil - Change
SMCS Code: 5056
Operate the machine for a few minutes in order to
warm the hydraulic system oil.
The machine should be level . Lower the bucket to
the ground and apply slight downward pressure.
Engage the parking brake and stop the engine.
g00287385
Illustration 353
g00287410
Illustration 354
The hydraulic tank filler cap is located under the
access door on the top of the engine compartment.
1. Pull the hood release lever (1) in order to open
the engine access door (2) on the top of the
machine.
