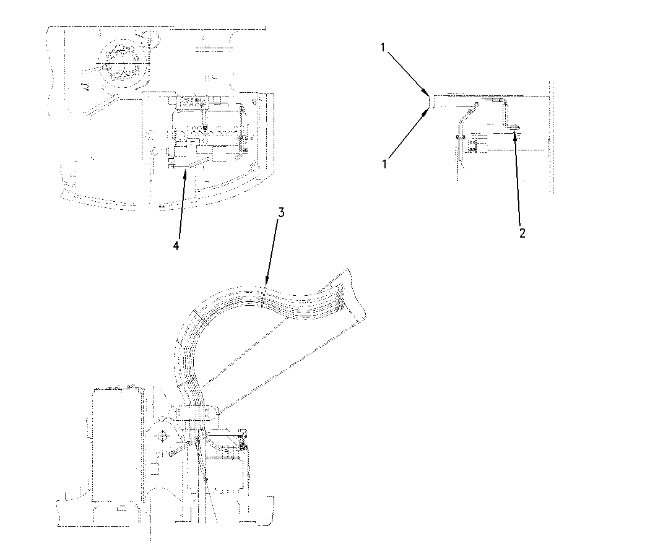

| Illustration 1 | g00857219 |
(1) Torque for two hose assemblies … 76 ± 4 N·m (55 ± 3 lb ft)
(2) One 140-0727 Relief Valve
- Rated pressure … 30500 kPa (4400 psi)
- Torque for two relief valves … 64 ± 5 N·m (47 ± 4 lb ft)
(3) Blend corners of cutting edges of straps.
(4) Torque for one tube assembly … 108 ± 10 N·m (80 ± 7 lb ft)
