308C Excavator Electrical and Electronic System – Fuel Gauge Reads Low or Gauge Does Not Move – Tro

Problem: The fuel gauge indicates a lower level or the gauge does not move.

Solution: Check that the following connectors and components are connected properly: “CONN 41”, “CONN 46” and “CONN 57”. If the problem still exists, use the following procedure to troubleshoot the system.

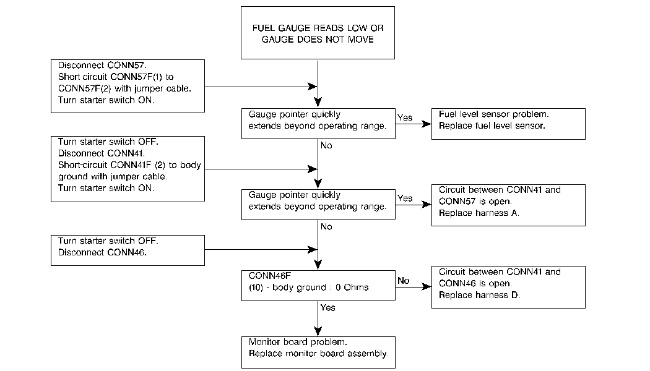

Illustration 1 g00853224
