The power circuit supplies electrical power to the electrical components of the machine. The components that are included are listed: the battery, the disconnect switch, breaker for the alternator and main relay.
|
|
|
|
|
|

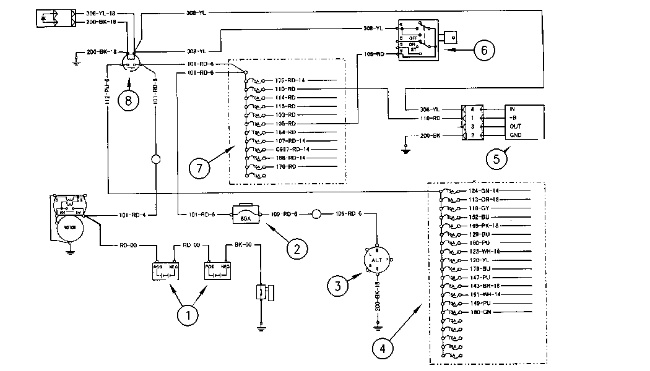

| Illustration 1 | g00776416 |
|
Schematic Of The Power Circuit For The 312C, 315C, and 318C (1) Batteries (2) Circuit breaker for alternator (3) Alternator (4) Fuse panel (5) Timer relay (6) Start switch (7) Fuse panel (8) Main relay |
|
|
|
|
|
|
|

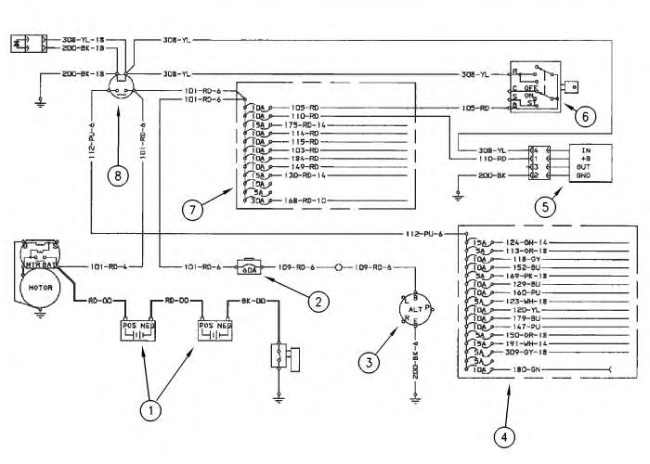

| Illustration 2 | g00695637 |
|
Schematic Of The Power Circuit For The 319C, 320C and 321C (1) Batteries (2) Circuit breaker for alternator (3) Alternator (4) Fuse panel (5) Timer relay (6) Start switch (7) Fuse panel (8) Main relay |
|
|
|
|
|
|
|

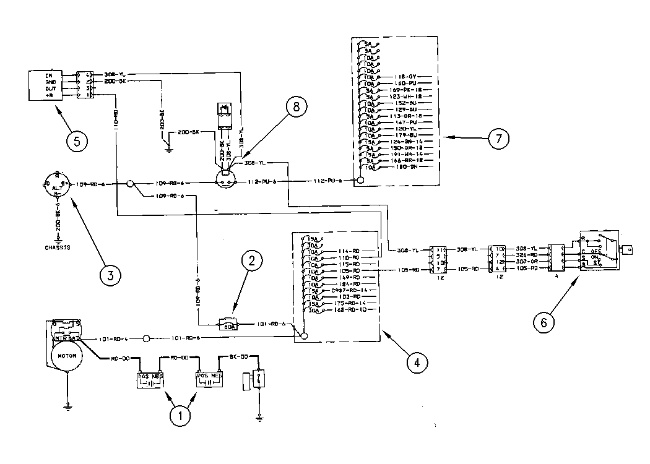

| Illustration 3 | g00776419 |
|
Schematic Of The Power Circuit For The 322C (1) Batteries (2) Circuit breaker for alternator (3) Alternator (4) Fuse panel (5) Timer relay (6) Start switch (7) Fuse panel (8) Main relay |
|
|
|
|
|
|
|

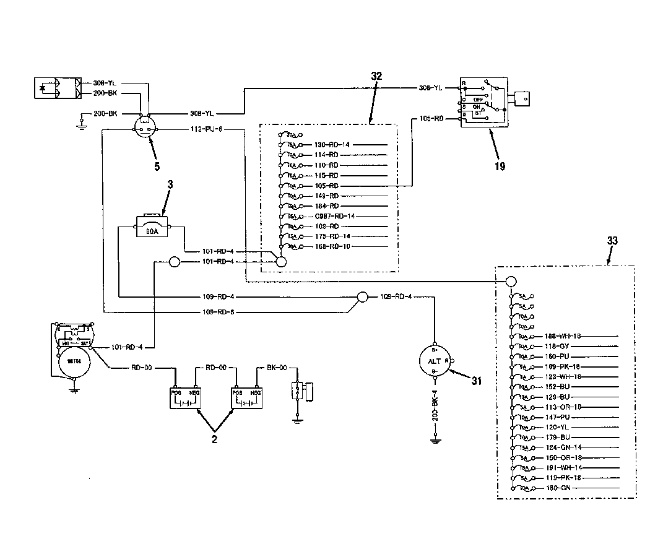

| Illustration 4 | g00824683 |
|
Schematic Of The Power Circuit For The 325C And 330C (2) Batteries (3) Circuit breaker for alternator (5) Main Relay (19) Starter Switch (31) Alternator (32) Fuse Panel (33) Fuse Panel |
|
