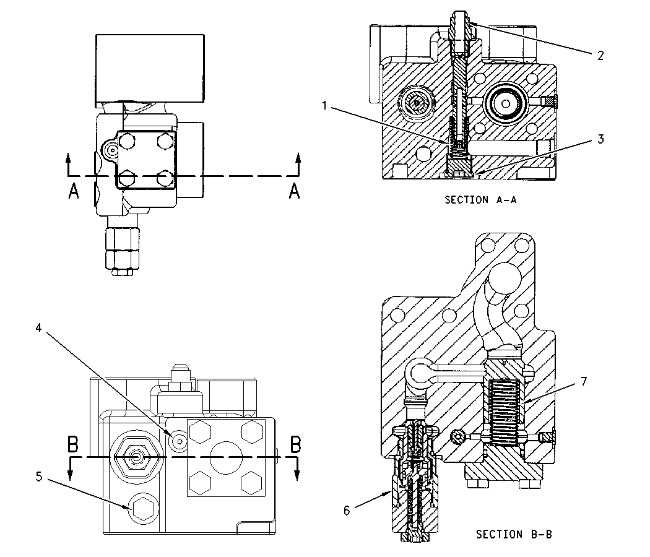

| Illustration 1 | g00757913 |
(1) 5I-8511 Spring
- Free length … 61.4 mm (2.42 inch)
- Outside diameter … 13.2 mm (0.52 inch)
(2) Connector
- Torque for Connector … 48.0 ± 5.0 N·m (35.0 ± 4.0 lb ft)
(3) Plug
- Torque for plug … 50.0 ± 7 N·m (36.9 ± 5.0 lb ft)
(4) Plug
- Torque for plug … 5.0 ± 1.5 N·m (44.0 ± 13.0 lb in)
(5) Straight Thread Plug
- Torque for plug … 48.0 ± 5.0 N·m (35.4 ± 3.7 lb ft)
(6) Line Relief Valve
- Pressure setting … 36800 ± 1470 kPa (5337 ± 213 psi)
- Torque for valve … 95.0 ± 14.0 N·m (70.0 ± 10.0 lb ft)
(7) 087-5166 Spring
- Free length … 70.0 mm (2.76 inch)
- Outside diameter … 21.8 mm (0.86 inch)
