330D, 336D, 336D2, 340D and 340D2 Excavators Machine System Specifications – Gear Pump

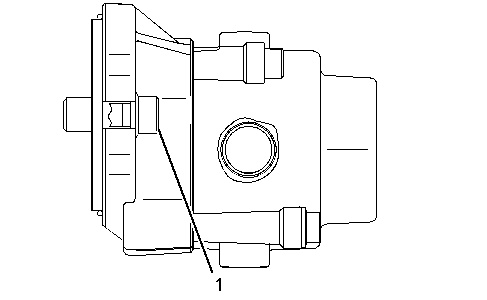

Illustration 1 g01628516
Table 1
Specification for 274-2490 Gear Pump Gp and 289-7917 Gear Pump Gp
Item     Qty     Part     Specification Description
1     1     247-8841 Bolt     Torque for the bolts to
33 ± 5 N·m (292 ± 44 lb in).
