330D, 336D, 336D2, 340D and 340D2 Excavators Machine System Specifications – Pump Lines (Main)

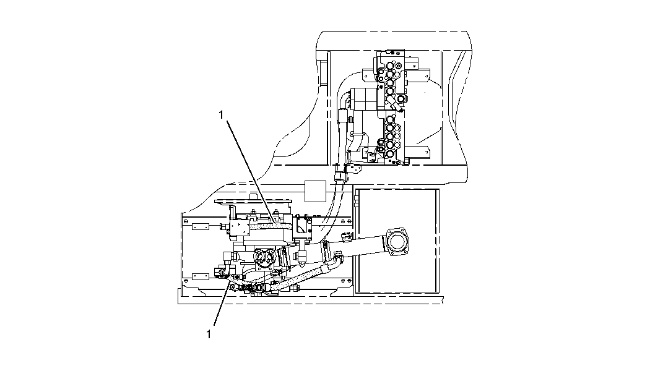

Illustration 1 g02595536

Top view
Table 1
Specification for 248-9839 Pump Lines Gp
Item     Qty     Part number     Part name     Specification Description
1     2     286-6528     Hose As     Torque to
190 ± 20 N·m (140 ± 15 lb ft)
