330D, 336D, 336D2, 340D and 340D2 Excavators Machine System Specifications – Relief Valve (Pilot)

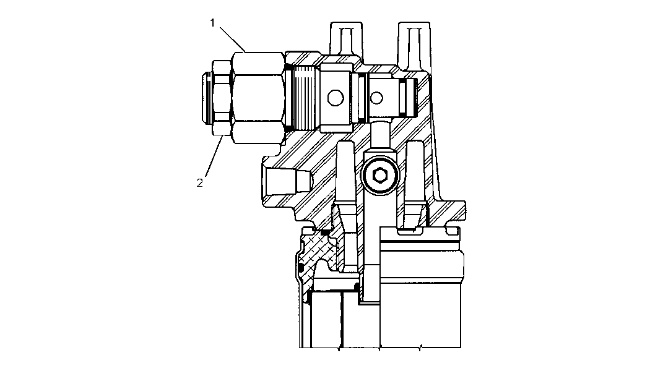

Illustration 1 g02931596
Table 1
Specification for 215-4909 Pilot Relief Valve Gp
Item     Qty     Part     Specification Description
1     1     215-4909 Pilot Relief Valve Gp     Torque to 117.6 ± 9.8 N·m (86.7 ± 7.2 lb ft).
2     –     –     Torque the nut to
49.0 ± 4.9 N·m (36.1 ± 3.6 lb ft).
