330D, 336D, 336D2, 340D and 340D2 Excavators Machine System Specifications – Return and Oil Filter Lines

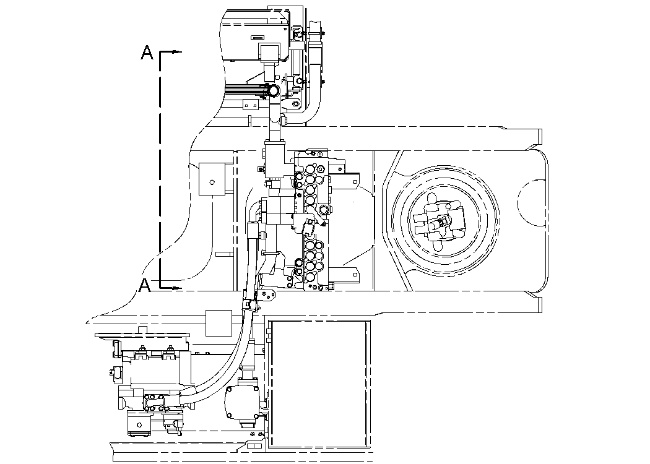

Illustration 1 g01427335

Top view

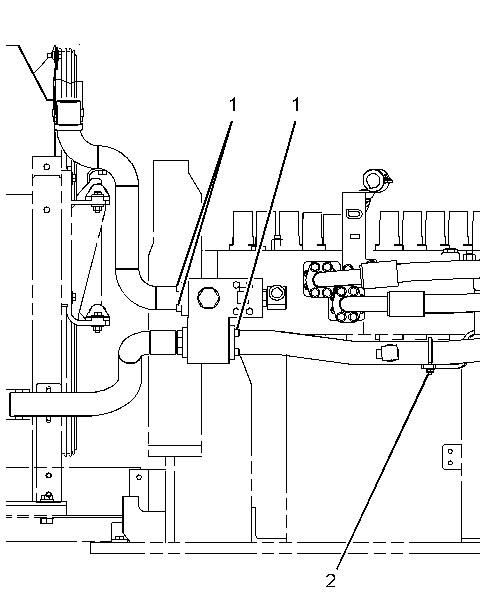

Illustration 2 g01427336

View A-A

Table 1
Specification for 248-9838 Return Lines Gp
Item     Qty     Part     Specification Description
1     12     101-7402 Bolt     Torque for the bolts to
50 ± 10 N·m (37 ± 7 lb ft).
2     2     096-4883 Locknut     Torque for the locknuts to
22 ± 3 N·m (195 ± 27 lb in).
