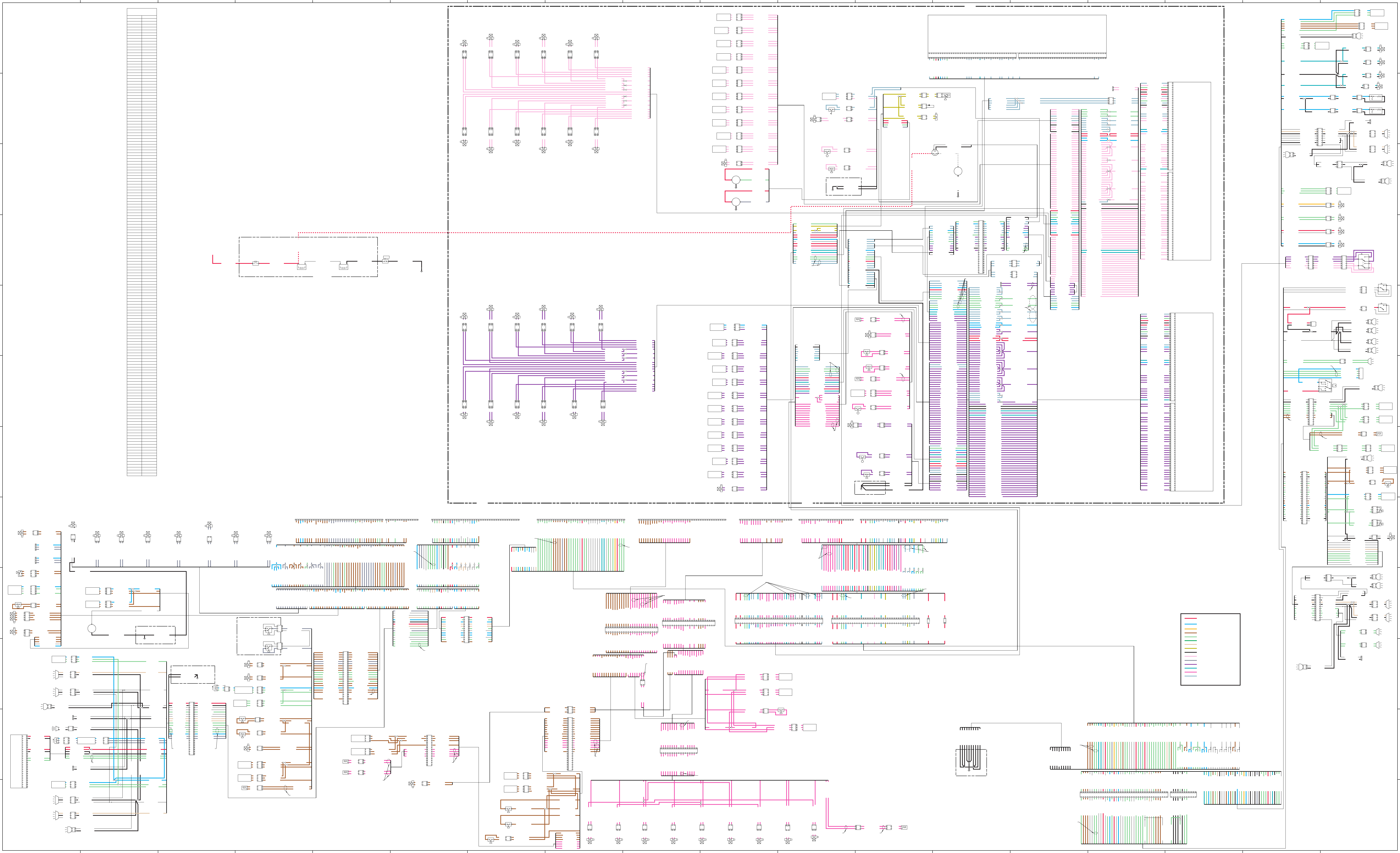

797 TRUCK ELECTRICAL SYSTEM SCHEMATIC (PKG CONTAINS VOL1 & VOL2)

Volume 1 - CAB
RENR2570
December 1999
797 Truck
Electrical System
©
1999 Caterpillar
All Rights Reserved
Printed in U.S.A.
5YW1-UP
VIMS (MID NO's. 49, 57, 58, 59, 60, 65, 66, 67, and 68)
CID No. Component CID No. Component
0041 8 Volt Sensor Power Supply 0558 Autolube Relay
0075 Steering Oil Temperature Sensor 0559 Boom Float Relay
0091 Throttle Position Sensor 0562 Caterpillar Monitoring System
0096 Fuel Level Sensor 0569 Oil Injection Solenoid
0098 Engine Oil Level Sensor 0580 Power Shift Pressure Sensor
0100 Engine Oil Pressure Sensor 0581 Power Shift Solenoid
0101 Crankcase Air Pressure Sensor 0590 Engine Electronic Control Module
0102 Boost Pressure Sensor 0592 Lift Raise Solenoid #2
0110 Engine Coolant Temperature Sensor 0593 Lift Lower Solenoid #2
0127 Transmission Oil Pressure Sensor 0594 Tilt Rackback Solenoid #2
0168 Electrical System Voltage 0595 Tilt Dump Solenoid #2
0171 Ambient Air Temperature Sensor 0596 Implement Electronic Control Module
0177 Transmission Oil Temperature Sensor 0600 Hydraulic Oil Temperature Sensor
0190 Engine Speed Sensor 0621 Downshift Switch
0248 CAT Data Link 0623 Directional Switch
0253 Personality Module (Engine Control) 0626 Steering/Transmission Lock Switch
0245 Electronic Control Module (ECM) 0627 Parking Brake Pressure Switch
0261 Engine Timing Calibration 0628 Quickshift Switch
0262 5 Volt Sensor Power Supply 0641 Transmission Solenoid #1
0263 8V (or 12V) Sensor Pwr Supply 0642 Transmission Solenoid #2
0267 Engine Shutdown Switch (Remote) 0643 Transmission Solenoid #3
0268 Programmable Parameters (Eng Ctrl) 0644 Transmission Solenoid #4
0269 Sensor Power Supply 0645 Transmission Solenoid #5
0271 Action Alarm 0646 Transmission Solenoid #6
0272 Turbo Outlet High Press Sensor 0650 Harness Code
0273 Turbocharger Outlet Pressure Sensor 0654 Trailer Right Brake Oil Temp Sensor
0274 Atmospheric Pressure Sensor 0655 Trailer Left Brake Oil Temp Sensor
0275 Right Turbo Inlet Press Sensor 0656 Trailer Brake Oil Cooler Inlet Temp Sen
0276 Left Turbo Inlet Press Sensor 0657 Trailer Brake Oil Cooler Temp Sensor
0277 Timing Calibration Sensor 0658 Trailer Rt Suspension Cyl Press Sensor
0278 AESC Enable Lamp 0659 Trailer Lt Suspension Cyl Press Sensor
0279 Aftercooler Coolant Temp Sensor 0670 Torque Converter Pedal Pos Sensor
0280 Gear Box Temperature Sensor 0671 Transmission Output Speed Sensor
0291 Engine Coolant Cooling Fan Solenoid 0672 Torque Converter Output Spd Sensor
0292 Hydraulic Oil Cooling Fan Solenoid 0678 Torque Converter Impeller Clutch Sol
0295 Electronic Control Module (ECM) 0679 Torque Converter Lockup Clutch Sol
0296 Transmission ECM 0700 Transmission Gear Actuator Sensor
0298 Service Brake Pedal Switch 0701 Transmission Output Speed Sensor
0324 Action (Warning) Lamp 0702 Transmission Gear Selector Switch
0341 Hyd Ctrl Valve Warm Up Sol #4 0703 Trailer Door Position Sensor
0350 Lift Linkage Position Sensor 0704 Service Brake Pressure Switch
0351 Tilt Linkage Position Sensor 0705 Body Raise Switch
0352 Lift Lever (Cab) Sensor 0706 Body Up Sensor
0353 Tilt Lever (Cab) Sensor 0707 Transmission Upshift Solenoid
0354 Lift Raise Solenoid #1 0708 Transmission Downshift Solenoid
0355 Lift Lower Solenoid #1 0709 Trans Lockup Clutch Sol
0356 Tilt Dump Solenoid #1 0710 ARC Supply Valve
0357 Tilt Rackback Solenoid #1 0711 ARC Control Valve
0358 Pilot Pressure Solenoid (Supply) 0712 ARC Lamp
0359 Lift Raise Kickout Solenoid 0713 ARC ON/OFF Switch
0360 Lift Lower Kickout Solenoid 0714 ARC Pressure Switch
0361 Tilt Kickout Solenoid 0715 Retarder Pressure Switch
0363 Machine Ride Control Actuator 0800 VIMS Main Module
0364 Lift Cylinder Head Pressure Sensor 0801 VIMS Interface Module #1
0365 Kickout Set Switch 0802 VIMS Interface Module #2
0367 Ride Control Switch 0803 VIMS Interface Module #3
0370 Boom Float Solenoid 0804 VIMS Interface Module #4
0371 Horn Solenoid (Forward) 0805 VIMS Interface Module #5
0372 Bucket/Shovel Open Solenoid 0806 VIMS Interface Module #6
0373 Bucket/Shovel Close Solenoid 0807 VIMS Interface Module #7
0374 Swing Brake Solenoid 0808 VIMS Interface Module #8
0376 Travel Alarm (Solenoid/Switch) 0809 Speedometer/Tachometer #1
0377 Travel Brake Solenoid 0810 Speedometer/Tachometer #2
0378 Machine Autolube Solenoid 0811 Gauge (Quad) Cluster #1
0379 Machine Autolube Pressure Sensor 0812 Gauge (Quad) Cluster #2
0423 Front Brake Accumulator Press Sw 0813 Gauge (Quad) Cluster #3
0424 Rear Brake Accumulator Press Sw 0814 Gauge (Quad) Cluster #4
0425 Front Brake Oil Pressure Sensor 0815 Message Center #1
0426 Rear Brake Oil Pressure Sensor 0816 Message Center #2
0427 Front Axle Oil Temperature Sensor 0817 ECM Internal Backup Battery
0428 Rear Axle Oil Temperature Sensor 0819 Display Data Link
0429 Steering Pump Oil Pressure Sensor 0820 Keypad Data Link
0430 Steering Pilot Pressure Sensor 0821 Display Power Supply (9 Volt)
0431 Steering Oil Level Switch 0822 Display Lighting Power Supply
0432 Steering Filter By-Pass Switch 0823 VIMS Service Lamp
0433 Implement Filter Switch 0824 Truck Payload Lamp #1 (Green)
0434 Hyd Pilot Oil Press Sensor 0825 Truck Payload Lamp #2 (Red)
0436 Torque Converter Oil Pressure Sensor 0856 Torque Converter Oil Temp Sensor
0438 Hyd Ctrl Valve Warm Up Sol #1 0827 Left Exhaust Temp Sensor
0439 Hyd Ctrl Valve Warm Up Sol #2 0828 Right Exhaust Temp
0440 Hyd Ctrl Valve Warm Up Sol #3 0829 Rear Aftercooler Cool Temp Sensor
0444 Start Relay 0830 Front Brake Oil Temperature Sensor
0457 Brake Oil Temperature Sensor 0833 Rear Brake Oil Temperature Sensor
0458 Tilt Cylinder Rod Pressure Sensor 0835 Differential (Axle) Oil Temp Sensor
0459 Impeller Clutch System Switch 0838 Lt Front Suspension Cyl Press Sensor
0489 Implement Select Switch 0839 Rt Front Suspension Cyl Press Sensor
0490 Implement Lockout Switch 0840 Lt Rear Suspension Cyl Press Sensor
0499 Implement Variable Hyd Oil Pump Sol 0841 Rt Rear Suspension Cyl Press Sensor
0526 Turbocharger Wastegate Valve 0849 System Air Pressure Sensor
0533 Auto Retarder Control (ARC) 0851 Gear Box Pressure Sensor
0541 Differential (Axle) Oil Pressure Sensor 0852 Brake Oil Temp Sensor (Rt Front)
0542 Engine Oil Pressure/uh/Unfiltered Sensor 0853 Brake Oil Temp Sensor (Lt Front)
0544 Engine Fan Speed Sensor 0854 Brake Oil Temp Sensor (Rt Rear)
0545 Start Aid Relay 0855 Brake Oil Temp Sensor (Lt Rear)
0546 Start Aid Hold Relay 0890 Broadcast Port (Data Link)
0548 Throttle Lock Lamp
The CID is a diagnostic code that indicates which component is faulty. The MID is a diagnostic code that indicates which electronic control module diagnosed
the fault.
Component Identifiers (CID) and Module Identifiers (MID) For
CID No. Component
0041 +8 Volt Sensor Supply
0127 Transmission Oil Pressure Sensor
0168 System Voltage
0177 Transmission Oil Temperature Sensor
0190 Engine Output Speed(EOS) Signal
0248 CAT Data Link
0268 Programmable Parameters
0533 Brake Control
0585 Transmission Output Speed I
0672 Converter Output Speed(COS)
0673 Transmission Output Speed II
0674 Transmission Intermediate Speed 1
0709 Lockup Solenoid
0826 Torque Converter Oil Temperature Sensor
0967 Machine Application
1233 Transmission Latching Pressure Sensor 1
1235 Transmission Latching Solenoid
1244 Transmission Second Stage Relief Solenoid
1273 Chassis Electronic Control Module
1401 Transmission Solenoid 1
1402 Transmission Solenoid 2
1403 Transmission Solenoid 3
1404 Transmission Solenoid 4
1405 Transmission Solenoid 5
1406 Transmission Solenoid 6
1407 Transmission Solenoid 7
1427 Machine Lockout Indicator Lamp
1428 Requested Gear Command Signal
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for
the Transmission Control (MID 081)
CID No. Component
0144 Backup Alarm Relay
0168 System Voltage
0248 CAT Data Link
0296 Transmission Electronic Control Module
0444 Start Relay
0533 Brake Control
0702 Gear Selector Lever
0733 Hoist Lever
0967 Machine Application
1175 Body Position Sensor
1236 Body Up Lamp
1237 Hoist Pump Bypass 1 Solenoid
1238 Hoist Pump Bypass 2 Solenoid
1239 Hoist Control To Tank Head Solenoid
1240 Hoist Control To Tank Rod Solenoid
1241 Hoist Pump To Control Head Solenoid
1242 Hoist Pump To Control Rod Solenoid
1243 Hoist Pilot System Enable Solenoid
1245 Accumulator Bleed Relay
1274 Machine Operation State
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for
the Chassis Control (MID 087)
CID No. Component
0001 Cylinder 1
0002 Cylinder 2
0003 Cylinder 3
0004 Cylinder 4
0005 Cylinder 5
0006 Cylinder 6
0007 Cylinder 7
0008 Cylinder 8
0009 Cylinder 9
0010 Cylinder 10
0011 Cylinder 11
0012 Cylinder 12
0091 Throttle Sensor Output
0100 Filtered Oil Pressure
0101 Crankcase Pressure Signal
0110 Coolant Temperature
0168 Battery Voltage
0190 Engine RPM Signal
0248 CAT Data Link
0253 Personality Module
0254 ECM
0261 Timing Calibration
0262 Analog Sensor Supply
0263 Digital Sensor Supply
0267 Shutdown Inputs
0268 System Parameters
0273 Turbocharger Outlet Pressure
0274 Atmospheric Pressure
0275 Right Turbocharger Inlet Pressure
0276 Left Turbocharger Inlet Pressure
0291 Engine Cooling Fan Solenoid
0296 Communicate w/Trans
0338 Prelube Pump Relay
0526 Wastegate Solenoid
0542 Unfiltered Oil Pressure Signal
0543 Filtered Oil Pressure
0544 Engine Fan Speed Sensor Signal
0545 Start Aid Relay
0546 Start Aid Hold Relay
0562 Caterpillar Monitoring System Communications
0569 Oil Renewal Solenoid
0800 CAT Data Link Communication
0827 Left Exhaust Temp Signal
0828 Right Exhaust Temp Signal
0829 Rear Aftercooler Coolant Temperature Signal
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for the
Engine Controls (MID 033,034, and 036)
CID No. Component
0041 +8 Volt Sensor Supply
0070 Operator Park Brake On/Off Switch
0168 System Voltage
0190 Engine Output Speed(EOS) Signal
0248 CAT Data Link
0269 Sensor Supply Voltage
0291 Engine Cooling Fan Solenoid
0296 Transmission Control
0544 Engine Cooling Fan Speed
0607 Left Wheel Speed Sensor
0608 Right Wheel Speed Sensor
0627 Parking Brake Switch
0681 Parking Brake Solenoid
0689 TCS Left Brake Solenoid
0690 TCS Right Brake Solenoid
0704 Brake System Pressure Switch
0710 ARC Supply Solenoid
0711 ARC Control Solenoid
0712 ARC Lamp
0713 Operator ARC On/Off Switch
0714 ARC Pressure Switch
0719 TCS Proportional Solenoid
0742 Service Brake Lamp Relay
0796 Differential High Speed Fan Solenoid
0835 Rear Differential Temperature Sensor
0852 Right Front Brake Temperature Sensor
0853 Left Front Brake Temperature Sensor
0854 Right Rear Brake Temperature Sensor
0855 Left Rear Brake Temperature Sensor
0966 TCS Lamp
0967 Machine Application
1225 Left Rear Park Brake Pressure Sensor
1226 Right Rear Park Brake Pressure Sensor
1227 Retarder Lever
1229 Brake Cooling Pump Speed
1230 Brake Cooling Pump Drive Solenoid
1231 Brake Oil Diverter Solenoid
1232 Rear Differential Lube Bypass Solenoid
1269 Operator Service Brake Pressure Switch
1271 Final Drive Lube Pressure Switch
1422 Front Engine Electronic Control Module
1437 Rear Axle Pump Diverter Solenoid Valve
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for
the Brake Control (MID 116)
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
Failure Mode Identifiers (FMI)
The FMI is a diagnostic code that indicates what type of failure has occurred.
Connector Number
Location
Cab Location
CONN 1 B-15 3
CONN 2 B-14 3
CONN 3 B-13 3
CONN 4 B-12 3
CONN 5 B-10 3
CONN 6 B-10 3
CONN 7 B-9 3
CONN 8 B-8 3
CONN 9 XMSN Lockout G-17 64
CONN 10 G-17 64
CONN 11 G-16 64
CONN 12 K-18 63
CONN 13 K-16 63
CONN 14 G-15 64
CONN 15 G-15 64
CONN 16 L-14 65
CONN 17 J-13 56
CONN 18 Telemetry Download K-12 56
CONN 19 Cab Serial Download K-12 56
CONN 20 Diagnostic K-12 56
CONN 21 Power Port K-11 56
CONN 22 K-10 75
CONN 23 K-10 56
CONN 24 J-9 71
CONN 25 J-9 71
CONN 26 J-9 71
CONN 27 K-9 56
CONN 28 User Defined Shutdown C-8 3
CONN 29 H-8 F
CONN 30 L-7 76
CONN 31 B-6 75
CONN 32 H-6 C
CONN 33 I-6 C
CONN 34 I-6 C
CONN 35 J-6 E
CONN 36 L-6 E
CONN 37 L-6 E
CONN 38 B-4 72
CONN 39 C-4 74
CONN 40 D-4 74
CONN 41 D-4 74
CONN 42 E-4 74
CONN 43 G-4 D
CONN 44 G-4 D
CONN 45 H-4 D
CONN 46 J-13 56
CONN 47 CAN Link K-13 56
Cab Connector Location
The connectors shown in this chart are harness to harness and special use
connectors. Connectors which join a harness to a component are generally
located at or near the component. See the component location chart
Off Machine Switch Specification
Part No. Function Actuate Deactuate Contact Position
1900 kPa MAX 1400 ± 140 kpa B-A Normally Open
(275 psi MAX) (205 ± 20 psi) B-C Normally Closed
13800 kPa MAX 12300 ± 345 kpa 1-2 Normally Open
(2001.5 psi) (1784 ± 50 psi) 1-3 Normally Closed
Diff Lube Filter Bypass 210 ± 70 kpa Normally
Fan Drive Filter (30 ± 10 psi) Open
Final Drive Filter Bypass
275 to 1750 kpa¹ Normally ²
(40 to 255 psi) Open
ARC Pressure 551 kPa 344 ± 20 kpa B-A Normally Open
Brake System Pressure (36.3 psi) (49.9 ± 2.9 psi) A-C Normally Closed
Foot Brake Pressure
93 ± 20 kpa 70 ± 20 kpa Normally
(13.5 ± 2.9 psi) (10.2 ± 2.9 psi) Open
362 ± 29 mN (45.6 mm ID
point)
303 mN MIN Normally
(1.3 ± 0.1 oz, 1.8 in ID
point)
(1.1 oz MIN) Open
137.9 ± 13.8 kpa 82.7 kPa MIN Normally
(20.0 ± 2.0 psi) (12.0 psi) Closed
276 ± 28 kpa 79 kPa MIN Normally
(40 ± 4 psi) (26 psi) Closed
14350 kPa MAX 12350 ± 350 kpa B-A Normally Open
(2081.28 psi MAX) (1791.20 ± 50.76 psi) B-C Normally Closed
² Contact position at the contacts of the harness connector.
144-5661
156-1382
173-2679
--
--114-5333
128-5091
130-7459
138-3672
3E-7809
9X-6855
9X-7781
¹ A hysteresis band exists: with increasing pressure the closed condition can be maintained up to 2800 kpa (405 psi), with decreasing pressure the closed
condition can be maintained down to 170 kpa (25 psi).
Coolant Flow
Fuel Filter Diff
Brake Oil Filter
Steering High Press
Steering Low Press
Brake Oil Accum Pressure
Refrigerant Pressure (AC)
Diff Lube Pressure
Component
Schematic
Location
Cab
Location
Component
Schematic
Location
Cab
Location
Actuator - Water Valve B-2 72 Relay - Backup Alarm Light G-8 F
Alarm - VIMS Action D-4 B Relay - Condensor J-9 71
Assembly - Stud B-7 3 Relay - Foglamp G-9 F
Breaker - 12V ACC Lighter L-9 56 Relay - Headlamp G-9 F
Breaker - 24V Accessories L-10 56 Relay - Main L-12 56
Breaker - AC L-11 56 Relay - Prelube G-10 F
Breaker - AC Condenser L-11 56 Relay - Start Aid Hold G-10 F
Breaker - ACC Lamp L-11 56 Relay - Start Aid Hold G-10 F
Breaker - ADEM Master L-10 56 Relay - Start Aid Pull In G-10 F
Breaker - ADEM Front Engine L-10 56 Relay - Start Aid Pull In G-10 F
Breaker - ADEM Rear Engine L-10 56 Relay - Steering Brake Bleed G-8 F
Breaker - Air Dryer L-10 56 Relay - Stoplamp G-9 F
Breaker - Alternator K-12 56 Relay - Wiper Motor G-9 F
Breaker - Alternator L-12 56 Resistor - Blower Motor C-3 72
Breaker - Backup Alarm L-11 56 Resistor - Start Aid (4) H-12 F
Breaker - Brake Retract L-11 56 Sensor - Hoist Lever Pos H-5 C
Breaker - Chassis Control L-10 56 Sensor - Throttle Position G-5 70
Breaker - Converter L-11 56 Sensor - XMSN Cane Pos I-5 C
Breaker - Floodlamp L-11 56 Solenoid - Park Brake J-7 73
Breaker - Headlamp L-11 56 Switch - AC On K-4 E
Breaker - IBC Control L-9 56 Switch - ARC Press K-7 73
Breaker - Key L-12 56 Switch - Auto Retarder J-2 E
Breaker - Power Window L-9 56 Switch - Blower K-4 E
Breaker - Start Aid L-12 56 Switch - Brake Retract K-3 E
Breaker - Start Aid L-12 56 Switch - Brake System Press J-7 73
Breaker - Stop/Turn/Dome L-12 56 Switch - Dimmer L-2 E
Breaker - VIMS L-9 56 Switch - Fog Lamp E-2 B
Breaker - Wiper L-9 56 Switch - Foot Brake Press J-7 73
Breaker - XMSN Control L-10 56 Switch - Hazard F-4 B
Cluster - Four Gauge H-2 D Switch - Horn F-5 A
Cluster - Speed Tach H-2 59 Switch - Key Start J-5 E
Cluster - VIMS Message Center G-2 D Switch - Ladder Lamp E-3 B
Condensor Group J-9 71 Switch - LH Door E-4 69
Conditioner Group B-3 72 Switch - LH Power Window H-4 C
Control - Chassis C-16 62 Switch - Park Brake On/Off H-5 C
Control - Component Life L-14 65 Switch - Rear Backup Lamp E-4 B
Control - IBC K-18 61 Switch - Retarder F-5 A
Control - VIMS L-16 63 Switch - RH Door D-4 68
Control - Water Valve B-2 72 Switch - RH Power Window H-4 C
Control - XMSN E-16 64 Switch - Running Lamp D-2 B
Converter - 5A 24 to 12 Volt J-11 67 Switch - Start Aid K-2 E
Converter - 15A 24 to 12 Volt J-11 67 Switch - Strobe Lamp F-2 B
Flasher F-5 60 Switch - TCS Test K-2 E
Ground Boss 1 - Rear Cab H-13 66 Switch - Temp Selector L-3 E
Ground Boss 2 - Rear Cab H-13 66 Switch - Thermostat C-3 72
Junction Block (6)
B-17,B-18,D-
18,E-18,F-18
64 Switch - Throttle Backup K-2 E
Lamp - Cane Lever I-5 C Switch - Wiper/Washer Turn F-5 A
Module - Int Wiper G-5 60 Terminal Stud K-13 56
Module - VIMS Keypad G-2 D Terminal Stud #2 K-13 56
Motor - Blower B-3 72 Thermister C-2 72
Motor - Condensor J-9 71 Valve - ARC Control K-7 73
Motor - Front Wiper L-5 58 Valve - ARC Supply K-7 73
Motor - Washer L-5 57 Window - LH Electric L-7 75
Radio D-3 B Window - RH Electric B-6 76
Locations are repeated for components located close together.
A = Located in Steering Column.
B = Located in Overhead Panel.
C = Located in Center Console.
D = Located in Instrument Panel.
E = Located in Switch Panel.
F = Located in Relay Panel.
Cab Component Location
Wire
Number
Wire
Color
Description
Wire
Number
Wire
Color
Description
Power Distribution Circuits Control Circuits Continued
101 RD Bat (+) R709 OR Injector 9 Sol
102 RD Hd Lmp R710 GY Injector 10 Sol
103 RD Aux Ckt R711 PU Injector 11 Sol
105 RD Key Sw R712 BR Injector 12 Sol
109 RD Alt Output (+) Term. R718 BU Eng Oil Low Sw
110 RD Aux Ckt R719 BR Eng Oil Very Low Sw
112 PU Main Power Rly Output R723 PK Timing Cal +
113 OR VIMS B+ Switched R724 PU Timing Cal -
115 PK Aux Ckt R725 WH Fuel Filter Sw
119 PK Aux Ckt R726 PU Injector 1 & 3 Sol Return
120 YL Aux Ckt R727 YL Injector 2 & 4 Sol Return
121 YL Back Alarm To Lamp R728 BR Injector 5 & 7 Sol Return
122 BU Aux Ckt R729 GN Injector 6 & 8 Sol Return
123 WH Aux Ckt R730 GY Injector 9 & 11 Sol Return
124 GN A/C R731 OR Injector 10 & 12 Sol Return
125 OR Aux Ckt R746 PK Turbo Outlet Press Sensor
126 RD Xmsn Ctrl R747 GY Atmospheric Press Sensor
127 RD Aux Ckt R751 YL Aftercooler Temp Sensor
128 RD Aux Ckt R795 YL Crankcase Press Sensor
135 BU Aux Ckt R796 GN Oil Press Sensor Unfiltered
139 OR Aux Ckt R797 WH Wastegate Return
149 PU Aux Ckt R798 PK Wastegate Solenoid
150 RD Bat (+) R799 BR PWM Return 1&2
151 GN Aux Ckt T701 GY Injector 1 Sol
170 RD Aux Ckt T702 PU Injector 2 Sol
173 RD Aux Ckt T703 BR Injector 3 Sol
176 RD Aux Ckt T704 GN Injector 4 Sol
185 YL Aux Ckt T705 YL Injector 5 Sol
Ground Circuits T706 GY Injector 6 Sol
200 BK Main Chassis T707 PU Injector 7 Sol
201 BK Operator Monitor Return T708 BR Injector 8 Sol
229 BK Bat (-) T709 OR Injector 9 Sol
A234 BK J1939 Shield Gnd T710 GY Injector 10 Sol
A251 BK VIMS Ser Mod #1 T711 PU Injector 11 Sol
A252 BK VIMS Ser Mod #2 T712 BR Injector 12 Sol
A253 BK VIMS Ser Mod #3 T718 BU Eng Oil Low Sw
A274 BK Power Neg T719 BR Eng Oil Very Low Sw
Basic Machine Circuits T723 PK Timing Cal +
301 BU Starter No. 1 Sol T724 PU Timing Cal -
307 OR Key SW To VIMS Sensor Module T725 WH Fuel Filter Sw
308 YL Main Power Relay Coil T726 YL Injector 1 & 3 Sol Return
321 BR Backup Alarm Lamp Travel Alarm T727 GN Injector 2 & 4 Sol Return
322 GY Warning Horn (Forward) T728 BR Injector 5 & 7 Sol Return
326 PU Key SW "C" Term. T729 GN Injector 6 & 8 Sol Return
327 PK Shutdown Solenoid T730 GY Injector 9 & 11 Sol Return
393 BR Dimmer Relay Coil T731 OR Injector 10 & 12 Sol Return
R317 YL Start Aid Relay to Start Aid Sol Front Eng. T746 PK Turbo Outlet Press Sensor
T317 YL Start Aid Relay to Start Aid Sol Rear Eng. T747 GY Atmospheric Press Sensor
X337 WH Prelube Signal from ECM to Relay T751 YL Aftercooler Temp Sensor
Monitoring Circuits T795 YL Crankcase Press Sensor
403 GN Alternator (R) Term. T796 GN Oil Press Sensor Unfiltered
410 WH Opr Mon Action Alarm T797 WH Wastegate Return
411 PK Opr Mon Master T798 PK Wastegate Solenoid
417 GY Primary Ster SW T799 BR PWM Return 1&2
425 PK Opr Mon Power Train Oil Level X717 YL Throttle Bypass
426 BR Opr Mon Power Train Oil Filter X720 GN Start Aid Switch
428 OR Opr Mon Xmsn Oil Temp X721 BR User Defined Shutdown
429 YL Opr Mon Brake Oil Temp 801 PK Auto Lube Sol Or Motor
432 PK Opr Mon Brake Press. (Oil) 858 GY Payload Mon Right Front Sensor
447 PK Fuel Level Gage 859 YL Payload Mon Left Front Sensor
450 YL Tach Sender (+) 860 PK Payload Mon Right Rear Sensor
451 BR Tach Sender (-) 861 PU Payload Mon Left Rear Sensor
454 GN Retarder Indicator Lamp 875 BU VIMS RS 232 Port Trans
481 GN Converter Temp SW To Brake Oil Temp SW 876 OR VIMS RS 232 Port Receive
A451 WH Opr Mon Steering Oil Temp 892 BR VIMS Start Mod Right (-) Port/CAT Data Link (-)
A491 WH Trans Supply SW To Torque Conv Inlet Filter SW 893 GN VIMS Start Mod Right (+) Port/CAT Data Link (+)
A492 OR Hoist Filter SW To Hoist Filter SW H801 PU Proportional Driver Return (1-4)
A493 YL Hoist Filter SW To T.C. SW H802 GY Proportional Driver Return (5-8)
A495 GY Alternator (R) Terminal #2 H803 BU Proportional Driver Return (9-12)
C413 YL VIMS Display Data H807 YL On/Off Driver Return (1-8)
C414 BU VIMS Display Load H809 YL Timer Output / Shutdown Timer Output
C415 WH VIMS Display Keydata H863 BU Proportional Driver Return (Rear Eng ECM)
C428 GN Brake Cooling Filter SW H864 GN Proportional Driver Return (Rear Eng ECM)
C429 GY Differential Oil Temp H865 BR Proportional Driver Return (Rear Eng ECM)
C453 YL Ambient Temp H867 YL On/Off Driver Return (Rear Eng ECM)
C466 YL LF Brake Oil Temp J800 OR ABL (IBC) +12 Volts
C467 BU LR Brake Oil Temp J802 OR Differential Pump Pressure Switch
C473 GN Rear Pump Press J803 BR Radiator Fan Shaft Speed +
C484 YL Rear Differential Filter Press SW J804 WH Radiator Fan Shaft Speed -
E456 WH Autolube Pressure J805 YL Brake Filter Switch
F418 GN VIMS RS232 Port 2 Trans J806 GY Rear Differential Filter Switch
F419 YL VIMS RS232 Port 2 Receive J810 PU Brake Cooling Filter
F433 PU Brake Temp J811 BK On/Off Return
F447 PU Steering HI Press SW To LO Press SW J812 PK Fan Drive Oil Filter Bypass Switch
G427 BU T/C Inlet Filter SW To Hoist Screen SW J813 BK Proportional Return
G428 BU Transmission Oil Press J814 BK Proportional Return
G439 YL Steering Oil Tank Level SW (VIMS) J815 BK Proportional Return
H428 GY Left Rear Brake Oil Pressure J816 GN Radiator Pump Drive
H429 BU Right Rear Brake Oil Pressure J817 WH Brake Cooling Pump Drive
H430 BU Body Up Indicator J818 OR Brake Cooling Mtr Speed (+)
X412 BU Coolant Flow Switch J819 BR Brake Cooling Mtr Speed (-)
Accessory Circuits J820 OR Hoist Pressure Sensor 2
500 BR Wiper - Front (Park) J821 BR Hoist Pressure Sensor 1
501 GN Wiper - Front (Low) J822 WH Hoist Position Sensor
502 OR Wiper - Front (HI) J823 YL XMSN Latching Press Sensor
506 PU Washer - Front J824 GY Hoist CT Head Prop Sol (Body Up)
508 PU Radio Speaker - Left J825 PU Hoist PC Head Prop Sol (Body Up)
509 WH Radio Speaker - Left (Commom) J826 PK Hoist Pilot System On/Off Sol
511 BR Radio Speaker - Right J827 GN Hoist CT Rod Prop Sol (Body Down)
512 GN Radio Speaker - Right (Common) J828 BU Hoist PC Rod Prop Sol (Body Down)
513 OR A/C Compressor/Refrigerant Pressure SW J829 OR Hoist Pump Bypass 1 Sol
515 GY Blower Motor (HI) J830 BR Hoist Pump Bypass 2 Sol
516 GN Blower Motor (Medium) J831 GY XMSN 2 Stage Relief Valve
517 BU Blower Motor (Low) J832 YL XMSN Latch Sol
518 OR Hazard Flasher To SW J840 WH Lamp HS Return
520 WH Opr A/C SW To Thermostat/Fuse J841 YL Lamp HS Return
521 YL A/C SW To Refrigerant SW J842 BK Digital Return
522 WH A/C Clutch To Thermostat SW J845 PU Rear Differential Bypass Sol
526 YL Wiper - Right (Park) J846 BR Lamp HS Return
527 GN Wiper - Right (Low) J847 GN VIMS Action Alarm Return
539 BU Turn Signal Indicator Basic/Right J848 BU VIMS Service Lamp Return
540 WH Turn Signal Indicator Left J849 WH VIMS ABL PWM Return
575 YL Wiper - Aux (Park) J878 YL Switch/Sensor Return #5
590 GY Wiper SW To Intermittent Module J879 GN Switch/Sensor Return #6
591 WH Intermittent Module To Wiper Motor J881 YL Xmsn Control State
592 BU DC/DC Converter Power Output J882 BR Cab Control State
593 GN Condensor Fan Relay To Motors J883 BU Gear Select State
A513 PK DC/DC Converter Memory Output R800 OR +8v Digital Sensor Power
A524 BR Temp Potentiometer Pos 2 R803 GY LH Turbo Exh Temp Sensor
A589 OR Power Window Up R804 GY RH Turbo Exh Temp Sensor
A590 BU Power Window Down R807 WH Start Aid Hold Relay
C569 YL Second DC/DC Converter Power Output R810 BR Start Aid Pull In Relay
C597 BU Right Power Window Up R814 PK RH Turbo Exh Press Sensor
C598 OR Right Power Window Down T800 OR +8v Digital Sensor Power
E501 BU Floating Blade Relay #2 to Blade Relay T803 GY LH Turbo Exh Temp Sensor
Lighting Circuits T804 OR RH Turbo Exh Temp Sensor
602 WH Dome Lamp T807 WH Start Aid Hold Relay
603 PK Rotary Beacon T810 BR Start Aid Pull In Relay
604 OR Stop Lamp T814 OR RH Turbo Exh Press Sensor
605 YL Turn Lamp - Left X800 OR +8v Sensor Power
606 GY Turn Lamp - Right X809 BU Prelube Relay
607 PK Flood Lamp - Front X815 PU Ground Level Shutdown N/O
608 GN Flood Lamp - Rear X816 WH Ground Level Shutdown N/C
610 OR Head Lamp Basic 900 PU XMSN Shift Sol No. 5 or 4
611 PU Head Lamp Hi 901 WH XMSN Shift Sol No. 6
612 GY Backup Lamp 902 BR XMSN Shift Sol No. 7
614 PU Park/Tail/Dash/Lamp 958 YL Relay Logic
619 GN Head Lamp Lo 987 WH Diverter Sol
620 WH Flood Lamp - Front (Eng. Flood Lamp) A958 WH Park Brake Sol
622 PU Flood Lamp 3-Way SW Jumper C976 YL Parking Brake Switch
623 BU Flood Lamp 3-Way SW Jumper C985 BU +8V
626 BU Dash Lamp Dimmer C989 PU Oil Level
627 YL Fog Lamp E900 WH ECPC Trans Output SPD +
630 GY Flood Lamp Rear E901 GN ECPC Trans Output SPD -
631 GY Fog Lamp - Right E902 PU ECPC Trans Intermediate SPD +
635 BU Payload Mon Red Lamp E903 YL ECPC Trans Intermediate SPD -
636 GN Payload Mon Green Lamp E906 OR ECPC Trans Output SPD Q+
Control Circuits E907 GY ECPC Trans Output SPD Q-
700 PK AETA Test SW E908 BR ECPC Trans Input SPD +
705 PK XMSN Lockup Clutch Sol Basic E909 WH ECPC Trans Input SPD -
706 BR XMSN Retarder SW E972 BU SPI Datalink End
711 BR XMSN Lever Code 1 K983 BU VIMS Sensor Module 1 - +8V Supply
712 WH XMSN Lever Code 2 K985 BR Auto Retard On SW
713 OR XMSN Lever Code 3 K986 PK Auto Regard Off SW
714 YL XMSN Lever Code 4 K988 WH Auto Retard Air Cont Valve
715 GN XMSN Lever Code 5 K989 BU Auto Retard AIr Supply Valve
716 BU XMSN Lever Code 6 K991 OR Auto Retard Press SW
751 GN XMSN Shift Sol No. 1 Or 3 K992 PU Auto Retard Manual Retard SW
752 YL XMSN Shift Sol No. 2 M901 YL Aux Lamp Driver 1
754 BU XMSN Shift Sol No. 3 Or 1 M914 WH VIMS System Air Pressure Sensor
755 OR XMSN Shift Sol No. 4 Or 5 M966 GY VIMS Aftercooler Coolant Level
769 BU Wheel Speed Pickup Left M967 OR VIMS Jacket Coolant Level
770 GN Wheel Speed Pickup Right M996 PK Hoist Lever Position
773 GY AETA Servovalve R914 OR Throttle Signal
774 YL AETA Sol - Left R915 YL Oil Renewal Sol
775 BR AETA Sol - Right R982 YL Dash Lamp Driver (-)
777 PU Brake Release Motor R984 GY E/P Controller to Aux/Hyd Controller (RS485 -)
799 WH Sensor Power R988 PK Transmision Lockdown Sw
E707 GN VIMS Display +V R989 PU Park Brake Lockdown Sw
E708 PK VIMS Display Clock R993 BR Analog Sensor Return
E709 WH VIMS Service Lamp R994 GY Eng Oil Press Sensor Unfiltered
E710 BU VIMS LCD Lamp Driver R995 BU Coolant Temp Sensor
E793 BU ATA Data Link - R996 GN +V TIMING
E794 YL ATA Data Link + R997 OR +5v Analog Sensor Power
F708 YL Dout 3 R998 BR Digital Sensor Return
F711 GN CAN Link + R999 WH Engine Speed / Timing Sensor
F712 GY CAN Link - T914 GN Throttle Signal
F780 PK Parking Brake SW T915 YL Oil Renewal Sol
F790 BR Service Brake Pedal T984 GY Start Aid Timer Output Rear Eng.
G736 PK Oil Cooler Motor T993 BR Analog Sensor Return
J764 BR Switch/Sensor Return #1 T994 GY Eng Oil Press Sensor Unfiltered
J765 BU Switch/Sensor Return #2 T995 BU Coolant Temp Sensor
J766 PU Switch/Sensor Return #3 T996 GN +V TIMING
J767 GY Switch/Sensor Return #4 T997 OR +5v Analog Sensor Power
R701 GY Injector 1 Sol T998 BR Digital Sensor Return
R702 PU Injector 2 Sol T999 WH Engine Speed / Timing Sensor
R703 BR Injector 3 Sol X900 YL Master Engine Speed Sensor
R704 GN Injector 4 Sol X912 GN Throttle Position Sensor
R705 YL Injector 5 Sol X996 GN +V TIMING
R706 GY Injector 6 Sol X998 BR Digital Sensor Return
R707 PU Injector 7 Sol X999 GN Master Engine Speed Sensor
R708 BR Injector 8 Sol
Wire Description
Related Electrical Service Manuals
Title Form Number
3524B Troubleshooting RENR2275
Brake/Cooling ECM for 797 Truck RENR2677
Chassis ECM for 797 Truck RENR2676
Transmission ECM for 797 Truck RENR2678
Vital Information Management System (VIMS) SENR6059
T
Normally open switch that will close with an increase of a specific condition (temp-press-etc.).
Normally open switch that is closed due to an applied condition, and will open again with a
specific decrease in that condition.
Normally closed switch that will open with an increase of a specific condition.
Normally closed switch that is open due to an applied condition, and will close again
with a specific decrease in that condition.
The circle indicates that the component has screw terminals and a wire can be disconnected
from it.
No circle indicates that the wire cannot be disconnected from the component.
This indicates that the component has a wire connected to it that is connected to ground.
This indicates that the component does not have a wire connected to ground. It is grounded
by being fastened to the machine.
Electrical Schematic Symbols And Definitions
Pressure
Symbol
Temperature
Symbol
Level
Symbol
Flow
Symbol
1
2
T
FUSE - A component in an electrical circuit that will open the circuit if too much
current flows through it.
REED SWITCH - A switch whose contacts are controlled by a magnet. A magnet
closes the contacts of a normally open reed switch; it opens the contacts of a
normally closed reed switch.
SENDER - A component that is used with a temperature or pressure gauge. The
sender measures the temperature or pressure. Its resistance changes to give an
indication to the gauge of the temperature or pressure.
RELAY (Magnetic Switch) - A relay is an electrical component that is activated by
electricity. It has a coil that makes an electromagnet when current flows through it.
The electromagnet can open or close the switch part of the relay.
CIRCUIT BREAKER (C/B) - A component in an electrical circuit that will open the
circuit if too much current flows through it. This does not destroy the circuit breaker
and it can be reset to become part of the circuit again.
SOLENOID - A solenoid is an electrical component that is activated by electricity.
It has a coil that makes an electromagnet when current flows through it. The
electromagnet can open or close a valve or move a piece of metal that can do work.
325-L25 PK-14
200-L32 BK-14
325-A135 PK-14
AG-C4
111-7898
L-C12
3E-5179
AG-C4
111-7898
L-C12
3E-5179
C-C4
130-6795
*
*
*
*
*
*
*
Harness And Wire Electrical Schematic Symbols
Electrical Schematic Symbols And Definitions
9X-1123
Part Numbers For
Connector Assembly
Component
Part Number
Wire, Cable, or Harness
Assembly Identification
Circuit Number
Identification
Wire
Color
Single Wire
Connector
Wire
Gauge
2
Socket
Pin
Pin or Socket
Number
Plug
Receptacle
1
1
1
2
2
Typical representation of a
Sure-Seal connector. The plug
and receptacle contain
both pins and sockets.
Typical representation of
a Deutsch connector. The
plug contains all sockets
and the receptacle contains
all pins.
AG-C3
130-6795
Harness identification letter(s) and a
serializing code. The "C" stands for
connector and the number indicates
which connector in the harness.
Harness identification code
This example indicates wire
32 in harness "L'.
Resistor, Sender and Solenoid Specifications
Part No. Component Description Resistance (Ohms)¹
3T-0062 Solenoid: AETA Proportional 16
5T-4434 Solenoid:
Air Start
Auto Lube
42.0 ± 4.0
7T-9074 Solenoid:
Horn
Wastegate Air Shutoff
55.17 ± 5.77
9G-9988 Solenoid: AETA Four Way 24.9
109-4591 Solenoid: Wastegate Proportional 7.75
122-1134 Solenoid:
Arc Supply Valve
Brake Accum Bleed
Diff Oil Bypass
RAX Drive Pump Oil Div
41.9
125-9740 Resistor: Blower Motor Overall 2.6 ± 0.12
142-7324 Solenoid: XMSN Latch Valve 32.6 ± 1.6
145-1144 Solenoid:
Torque Converter Lockup
Transmission Clutch Pack (7)
8.5 ± 0.4
148-2350 Solenoid:
Hoist Head End - CT
Hoist Head End - PC
Hoist Pump Bypass (2)
Hoist Rod End - CT
Hoist Rod End - PC
5.5 ± 0.2
152-8340 Solenoid:
Brake Oil Diverter
Park Brake
32.6 ± 1.6
156-1113 Solenoid: Final Drive Oil Bypass 32.6 ± 1.6
156-5542 Solenoid: Steering Bleed 32.6 ± 1.6
¹ At room temperature unless otherwise noted.
Rear View
Top View
Side View
LocationsCab Harness Connector And Component
B
C
D
E
F
3
56
69
67
66
60
64
65
62
63
61
75
59
76
70
71
68
74
72
73
57
58
A
A
B
C
D
E
F
69
71
68
76
74
58
72
59
67
56
66
57
60
75
3
62
61
70
64
63
73
65
A
B
C
D
E
F
57
73
58
72
70
59
76 69
74
71
75
68
3
60
67
56
66
64
62
65
63
61
WIRES IN THE FOLLOWING
GROUPS SHALL BE TWISTED:
ONE TWIST PER 25 MM.
WIRE GROUP WIRE NAME
AE TW1 E900-AE11
AE TW1 E901-AE12
AE TW2 E906-AE13
AE TW2 E907-AE14
AH TW1 J818-AH29
AH TW1 J819-AH28
AL TW1 J803-AL60
AL TW1 J804-AL56
AL TW2 F418-AL24
AL TW2 F419-AL23
AN TW1 J803-AN72
AN TW1 J804-AN71
AN TW2 F418-AN54
AN TW2 F419-AN63
AR TW1 E902-AR22
AR TW1 E903-AR21
AT TW1 E900-AT5
AT TW1 E901-AT6
AT TW2 E906-AT7
AT TW2 E907-AT8
AU TW1 E902-AU4
AU TW1 E903-AU5
AV TW1 E900-AV12
AV TW1 E901-AV13
AV TW2 E906-AV18
AV TW2 E907-AV19
AV TW3 E902-AV16
AV TW3 E903-AV17
AW TW1 J818-AW56
AW TW1 J819-AW53
CA TW1 E900-CA22
CA TW1 E901-CA23
CA TW1 E902-CA9
CA TW1 E903-CA10
CA TW2 E906-CA24
CA TW2 E907-CA25
CF TW1 E906-CF16
CF TW1 E907-CF26
CF TW2 E900-CF25
CF TW2 E901-CF24
CF TW3 892-CF1
CF TW3 893-CF2
CF TW4 450-CF8
CF TW4 451-CF9
CF TW5 E902-CF28
CF TW5 E903-CF27
CG TW1 892-CG19
CG TW1 893-CG18
CG TW2 F418-CG8
CG TW2 F419-CG9
CG TW3 875-CG57
CG TW3 876-CG58
CG TW4 892-CG13
CG TW4 893-CG14
CH TW1 892-CH13
CH TW1 893-CH14
CN TW1 E793-CN36
CN TW1 E794-CN35
CN TW2 892-CN17
CN TW2 893-CN16
CN TW3 892-CN50
CN TW3 893-CN48
CN TW4 E793-CN44
CN TW4 E794-CN42
CN TW5 892-CN49
CN TW5 893-CN47
CN TW6 E793-CN43
CN TW6 E794-CN41
CN TW7 450-CN1
CN TW7 451-CN2
CN TW8 E908-CN3
CN TW8 E909-CN4
C TW1 892-C46
C TW1 893-C45
ET TW1 E902-ET2
ET TW1 E903-ET1
J TW1 892-J178
J TW1 893-J182
J TW2 892-J3
J TW2 893-J2
J TW3 892-J370
J TW3 893-J345
J TW4 892-J181
J TW4 893-J185
J TW5 892-J180
J TW5 893-J184
J TW6 J818-J213
J TW6 J819-J57
J TW7 892-J179
J TW7 893-J183
J TW8 892-J98
J TW8 893-J165
J TW9 450-J124
J TW9 451-J122
J TW10 E793-J234
J TW10 E794-J235
J TW11 F418-J193
J TW11 F419-J191
J TW12 875-J198
J TW12 876-J197
J TW13 F418-J338
J TW13 F419-J332
J TW14 F418-J346
J TW14 F419-J196
J TW15 J803-J115
J TW15 J804-J116
J TW16 450-J123
J TW16 451-J120
J TW17 450-J119
J TW17 451-J121
J TW18 892-J246
J TW18 893-J212
J TW19 892-J280
J TW19 893-J291
N TW1 875-N26
N TW1 876-N25
N TW2 892-N19
N TW2 893-N18
N TW3 E793-N20
N TW3 E794-N21
N TW4 F418-N28
N TW4 F419-N27
PA TW1 892-PA4
PA TW1 893-PA3
PA TW2 E793-PA22
PA TW2 E794-PA21
PA TW3 450-PA23
PA TW3 451-PA24
PA TW4 892-PA29
PA TW4 893-PA31
PA TW5 E793-PA33
PA TW5 E794-PA35
PA TW6 892-PA30
PA TW6 893-PA32
PA TW7 E793-PA34
PA TW7 E794-PA36
PA TW8 E908-PA20
PA TW8 E909-PA19
PA TW9 E793-PA132
PA TW9 E794-PA133
PA TW10 892-PA128
PA TW10 893-PA127
PA TW11 T723-PA48
PA TW11 T724-PA46
P TW1 E793-P21
P TW1 E794-P20
P TW3 E793-P42
P TW3 E794-P45
P TW4 892-P4
P TW4 893-P3
P TW6 892-P36
P TW6 893-P39
P TW7 E793-P40
P TW7 E794-P43
P TW8 892-P34
P TW8 893-P37
U TW1 J803-U15
U TW1 J804-U14
V TW1 892-V38
V TW1 893-V39
IDENT PART NO. CHG NOTE
HARNESS AS.
THIS DIAGRAM IS FOR THE 797 OHT (CAB)
(149-3022 CHG04)
COMPONENTS ARE SHOWN INSTALLED ON A FULLY OPERABLE
MACHINE WITH THE KEY AND ENGINE OFF, THE XMSN
SHIFTER IN NEUTRAL AND PARK BRAKE IN THE OFF POSITION.
BREAKER PANEL
BREAKER PANEL
RELAY PANEL
RELAY PANEL
E707-C2 GN-16
E707-C3 GN-16
E707-C4 GN-16
E707-C1 GN-16
E707-C1 GN-16
E972-C7 BU-16
E972-C8 BU-16
E972-C9 BU-16
E972-C6 BU-16
E972-C6 BU-16
E708-C12 PK-16
E708-C13 PK-16
E708-C14 PK-16
E708-C11 PK-16
E708-C11 PK-16
C413-C16 YL-16
C413-C17 YL-16
C413-C18 YL-16
C413-C15 YL-16
C413-C15 YL-16
C414-C20 BU-16
C414-C21 BU-16
C414-C22 BU-16
C414-C19 BU-16
C414-C19 BU-16
E707-C5 GN-16
E972-C10 BU-16
C415-C23 WH-16
C415-C23 WH-16
614-C33 PU-16
614-C34 PU-16
614-C39 PU-16
614-C40 PU-16
614-C41 PU-16
614-C41 PU-16
R982-C31 YL-16
R982-C30 YL-16
E710-C29 BU-16
R982-C28 YL-16
R982-C32 YL-16
R982-C27 YL-16
R982-C27 YL-16
E710-C37 BU-16
E710-C38 BU-16
E710-C36 BU-16
E710-C36 BU-16
113-C25 OR-16
113-C26 OR-16
113-C24 OR-16
113-C24 OR-16
R984-A1 GY-14
R984-A6 GY-14
R984-A2 GY-14
R317-A3 YL-14
R317-A5 YL-14
R317-A4 YL-14
R317-A39 YL-14
T317-A10 YL-14
T317-A12 YL-14
T317-A11 YL-14
T317-A24 YL-14
T984-A7 GY-14
T984-A9 GY-14
T984-A8 GY-14
128-A14 RD-14
128-A17 RD-14
128-A17 RD-14
T998-A21 BR-16
T998-A21 BR-16
127-A27 RD-14
127-A28 RD-14
127-A29 RD-14
127-A32 RD-14 127-A31 RD-14
127-A33 RD-14
127-A34 RD-14
R317-A40 YL-14
R317-A40 YL-14
127-A30 RD-14
127-A30 RD-14
T317-A25 YL-14
T317-A25 YL-14
R998-A36 BR-16
R998-A36 BR-16
128-A18 RD-14
128-A15 RD-14
T807-A13 WH-16
T807-A13 WH-16
T810-A23 BR-16
T810-A23 BR-16
R807-A26 WH-16
R807-A26 WH-16
R810-A38 BR-16
R810-A38 BR-16
X337-A42 WH-14
X337-A42 WH-14
X809-A41 BU-14
X809-A41 BU-14
591-A43 WH-16
591-A43 WH-16
119-A44 PK-16
119-A44 PK-16
200-A52 BK-14
200-A51 BK-14
200-A53 BK-14
200-A53 BK-14
J811-A45 BK-14
J811-A45 BK-14
103-A46 RD-14
103-A46 RD-14
958-A47 YL-14
958-A47 YL-14
604-A48 OR-14
604-A48 OR-14
610-A50 OR-14
610-A50 OR-14
619-A54 GN-14
619-A54 GN-14
102-A49 RD-14
102-A49 RD-14
627-A56 YL-14
627-A56 YL-14
631-A57 GY-14
631-A57 GY-14
115-A55 PK-14
115-A55 PK-14
321-A59 BR-16
321-A59 BR-16
612-A61 GY-14 612-A62 GY-14
612-A62 GY-14
612-A63 GY-14
612-A63 GY-14
121-A58 YL-14
121-A58 YL-14
H809-A64 YL-16
H809-A64 YL-16
H867-A65 YL-16
327-A66 PK-14
327-A66 PK-14
H809-A64 YL-16
H867-A65 YL-16
327-A66 PK-14
321-A59 BR-16
121-A58 YL-14
631-A57 GY-14
627-A56 YL-14
115-A55 PK-14
619-A54 GN-14
610-A50 OR-14
102-A49 RD-14
604-A48 OR-14
103-A46 RD-14
958-A47 YL-14
J811-A45 BK-14
119-A44 PK-16
591-A43 WH-16
X337-A42 WH-14
X809-A41 BU-14
R810-A38 BR-16
T810-A23 BR-16
R807-A26 WH-16
R984-A2 GY-14
T807-A13 WH-16
T984-A8 GY-14
R317-A4 YL-14
112-EL1 PU-10
112-CK15 PU-10
101-EK1 RD-10
112-CK16 PU-10
112-EN1 PU-10
PU-10
112-CK17 PU-10
112-CK24 PU-12
112-CK24 PU-12
112-CK25 PU-12
112-CK25 PU-12
112-CK26 PU-12
112-CK26 PU-12
101-EH1 RD-10
101-EJ1 RD-10
101-EG1 RD-10
101-EF1 RD-10
127-E22 RD-12
127-E22 RD-12
128-E23 RD-12
128-E23 RD-12
120-E31 YL-12
120-E31 YL-12
139-E32 OR-10
139-E32 OR-10
173-E36 RD-12
173-E36 RD-12
170-E44 RD-14
170-E44 RD-14
135-E43 BU-14
135-E43 BU-14
119-E41 PK-16
119-E41 PK-16
185-E40 YL-16
185-E40 YL-16
113-E39 OR-16
113-E39 OR-16
151-E37 GN-14151-E37 GN-14
150-E38 RD-14150-E38 RD-14
123-E34 WH-16
123-E34 WH-16
122-E35 BU-16
122-E35 BU-16
121-E30 YL-14
121-E30 YL-14
102-E26 RD-14
102-E26 RD-14
115-E27 RD-14
115-E27 RD-14
149-E28 RD-14
149-E28 RD-14
124-E29 GN-14
124-E29 GN-14
105-E24 RD-16
105-E24 RD-16
103-E25 RD-14
103-E25 RD-14
112-CK15 PU-10
112-CK16 PU-10
101-EU1 RD-10
112-EL1 PU-10
101-EK1 RD-10
113-E39 OR-16
112-EM1 PU-10
112-CK17 PU-10
101-EF1 RD-10
101-EG1 RD-10
135-F12 BU-14
135-F12 BU-14
135-F12 BU-14
200-F9 BK-14
200-F9 BK-14
200-F9 BK-14
115-F14 RD-14
115-F14 RD-14
115-F14 RD-14
627-F5 YL-14
627-F5 YL-14
627-F5 YL-14
103-F28 RD-14
103-F6 RD-14
103-F6 RD-14
602-F26 WH-16
149-F7 RD-14
149-F7 RD-14
149-F7 RD-14
623-F10 BU-14
623-F10 BU-14
623-F10 BU-14
622-F4 PU-14
622-F4 PU-14
622-F4 PU-14
607-F16 PK-14
607-F16 PK-14
OVERHEAD CONSOLE
OVERHEAD CONSOLE
607-F16 PK-14
+12V AUX
POWER CONN
INSTRUMENT PANEL
INSTRUMENT PANEL
SWITCH PANEL
SWITCH PANEL
200-K20 BK-16
200-K20 BK-16 200-K34 BK-16
200-K34 BK-16
200-K33 BK-16
200-K33 BK-16
200-K32 BK-16
200-K32 BK-16
200-K35 BK-16
200-K35 BK-16
200-K31 BK-16
R982-K44 YL-16
R982-K44 YL-16
R982-K44 YL-16
200-K38 BK-16
200-K38 BK-16
R982-K36 YL-16
R982-K36 YL-16
200-K37 BK-16
200-K37 BK-16
R982-K39 YL-16
R982-K39 YL-16
R982-K39 YL-16
R982-K71 YL-16
R982-K41 YL-16
R982-K41 YL-16
R982-K41 YL-16
R982-K43 YL-16
R982-K43 YL-16
R982-K43 YL-16
J767-K16 GY-16
J767-K16 GY-16
J811-K48 BK-18
J811-K48 BK-18
J767-K47 GY-16
J767-K47 GY-16
J767-K47 GY-16
J767-K49 GY-16
J767-K49 GY-16
J767-K49 GY-16
C569-K28 YL-16
C569-K28 YL-16
C569-K28 YL-16
520-K58 WH-16
520-K58 WH-16
515-K3 GY-16
515-K3 GY-16
515-K3 GY-16
516-K4 GN-16
516-K4 GN-16
516-K4 GN-16
517-K5 BU-16
517-K5 BU-16
517-K5 BU-16
518-K6 OR-16
518-K6 OR-16
518-K6 OR-16
124-K8 GN-14
124-K81 GN-14
124-K81 GN-14
521-K7 YL-16
521-K7 YL-16
521-K7 YL-16
521-K59 YL-16
605-K30 YL-16
605-K30 YL-16
605-K30 YL-16
H430-K21 BU-16
H430-K21 BU-16
H430-K21 BU-16
611-K22 PU-16
611-K22 PU-16
611-K22 PU-16
612-K23 GY-16
612-K23 GY-16
612-K23 GY-16
454-K24 GN-16
454-K24 GN-16
454-K24 GN-16
411-K26 PK-16
411-K26 PK-16
411-K26 PK-16
J846-K19 BR-16
J846-K19 BR-16
J846-K19
BR-16
M901-K18 YL-16
M901-K18 YL-16
M901-K18 YL-16
606-K29 GY-16
606-K29 GY-16
606-K29 GY-16
614-K14 PU-16
614-K14 PU-16 614-K52 PU-16
614-K52 PU-16
614-K50 PU-16
614-K50 PU-16
614-K50 PU-16
614-K51 PU-16
614-K51 PU-16
614-K51 PU-16
614-K56 PU-16
614-K56 PU-16
614-K56 PU-16
614-K54 PU-16
614-K55 PU-16
614-K55 PU-16
614-K55 PU-16
614-K57 PU-16
614-K57 PU-16
614-K57 PU-16
K986-K13 PK-16
K986-K13 PK-16
K986-K13 PK-16
K986-K13 PK-16
K985-K12 BR-16
K985-K12 BR-16
K985-K12 BR-16
K985-K12 BR-16
X720-K11 GN-16
X720-K11 GN-16
X720-K11 GN-16
X720-K11 GN-16
X998-K10 BR-16
X998-K10 BR-16
X998-K10 BR-16
X998-K10 BR-16
X717-K9 YL-16
X717-K9 YL-16
X717-K9 YL-16
X717-K9 YL-16
700-K15 PK-16
700-K15 PK-16
700-K15 PK-16
700-K15 PK-16
777-K2 PU-10
777-K2 PU-10
777-K2 PU-10
139-K1 OR-10
139-K1 OR-10
139-K1
CONN 36
CONN 37
OR-10
308-K67 YL-16
308-K67 YL-16
326-K68 PU-16
326-K68 PU-16
307-K69 OR-16
307-K69 OR-16
105-K70 RD-16
105-K70 RD-16
OPERATOR STATION
OPERATOR STATION
113-C35 OR-16
592-E10 BU-16
592-E10 BU-16
109-E46 RD-4
109-E46 RD-4
109-E33 RD-4
515-H2 GY-14
515-H2 GY-14 515-H3 GY-14
515-H4 GY-14
516-H19 GN-14 516-H19 GN-14
517-H20 BU-14
517-H20 BU-14
518-H5 OR-14
518-H5 OR-14
200-H13 BK-14
200-H12 BK-14
522-H7 WH-14
522-H7 WH-14
CONDITIONER GP 137-2134
LH ELECTRIC WINDOW
RH ELECTRIC WINDOW
602-F34 WH-16
103-F35 RD-14
103-F35 RD-14
518-F41 OR-16
518-F42 OR-16
518-F43 OR-16
518-F43 OR-16
518-F43 OR-16
606-F44 GY-14
606-F44 GY-14
606-F44 GY-14
539-F45 BU-16
539-F45 BU-16
539-F45 BU-16
605-F46 YL-14
605-F46 YL-14
605-F46 YL-14
540-F47 WH-16
540-F47 WH-16
540-F47 WH-16
612-F48 GY-14
612-F48 GY-14
612-F48 GY-14
608-F49 GN-14
608-F49 GN-14
608-F49 GN-14
121-F50 YL-14
121-F50 YL-14
121-F50 YL-14
614-F37 PU-16
614-F37 PU-16
614-F36 PU-16
614-F36 PU-16
R982-F52 YL-16
R982-F52 YL-16
200-F40 BK-14
614-F30 PU-16
R982-F23 YL-16
R982-F23 YL-16
103-F8 RD-14
103-F3 RD-14
102-F38 RD-14
102-F38 RD-14
102-F38 RD-14
610-F32 OR-14
610-F32 OR-14
610-F32 OR-14
614-F39 PU-14
614-F39 PU-14
614-F39 PU-14
103-F8 RD-14
R982-F20 YL-16
R982-F21 YL-16
R982-F21 YL-16
R982-F20 YL-16
TELEMETRY
DOWNLOAD PORT
CAB SERIAL
DOWNLOAD
PORT
DIAGNOSTIC CONN
120-N2 YL-16
120-N5 YL-16
200-N3 BK-16
200-N34 BK-16
200-N4 BK-16
120-N6 YL-16
103-F3 RD-14
614-F30 PU-16
614-F1 PU-16
614-F1 PU-16
KNOB AS.
1450846
C415-J13 WH-16
C415-J13 WH-16
C415-J13 WH-16
C415-J13 WH-16
C413-J11 YL-16
C413-J11 YL-16
C413-J11 YL-16
C413-J11 YL-16
C414-J12 BU-16
C414-J12 BU-16
C414-J12 BU-16
C414-J12 BU-16
E708-J10 PK-16
E708-J10 PK-16
E708-J10 PK-16
E708-J10 PK-16
E707-J9 GN-16
E707-J9 GN-16
E707-J9 GN-16
E707-J9 GN-16
170-J19 RD-14
170-J19 RD-14
170-J18 RD-14
170-J18 RD-14
170-J20 RD-14
170-J20 RD-14
170-J20 RD-14
K986-J32 PK-16
K986-J32 PK-16
K986-J32 PK-16
K986-J32 PK-16
K985-J33 BR-16
K985-J33 BR-16
K985-J33 BR-16
K985-J33 BR-16
700-J34 PK-16
700-J34 PK-16
700-J34 PK-16
700-J34 PK-16
K991-J35 OR-16
K991-J35 OR-16
K991-J35 OR-16
K991-J35 OR-16
K991-J35 OR-16
176-J37 RD-16
176-J37 RD-16
176-J38 RD-16
176-J38 RD-16
454-J41 GN-16
454-J41 GN-16
454-J41 GN-16
454-J41 GN-16
M901-J40 YL-16M901-J40 YL-16
M901-J40 YL-16
M901-J40 YL-16
K989-J44 BU-16
K989-J44 BU-16
K989-J44 BU-16
K989-J44 BU-16
K989-J44 BU-16
K988-J43 WH-16
K988-J43 WH-16
K988-J43 WH-16
K988-J43 WH-16
K988-J43 WH-16
958-J42 YL-14
958-J42 YL-14
958-J42 YL-14
958-J42 YL-14
C985-J206 BU-18
C985-J206 BU-18
417-J99 GY-18
417-J99 GY-18
417-J99 GY-18
417-J99 GY-18
F447-J100 PU-18
F447-J100 PU-18
F447-J100 PU-18
F447-J100 PU-18
M967-J101 OR-16
M967-J101 OR-16
M967-J101 OR-16
M967-J101 OR-16
859-J102 YL-18
859-J102 YL-18
859-J102 YL-18
859-J102 YL-18
858-J103 GY-18
858-J103 GY-18
858-J103 GY-18
858-J103 GY-18
447-J104 PK-18
447-J104 PK-18
447-J104 PK-18
447-J104 PK-18
M966-J105 GY-16
M966-J105 GY-16
M966-J105 GY-16
M966-J105 GY-16
861-J106 PU-18
861-J106 PU-18
861-J106 PU-18
861-J106 PU-18
860-J107 PK-18
860-J107 PK-18
860-J107 PK-18
860-J107 PK-18
A451-J108 WH-18
A451-J108 WH-18
A451-J108 WH-18
A451-J108 WH-18
C453-J109 YL-18
C453-J109 YL-18
C453-J109 YL-18
C453-J109 YL-18
403-J125 GN-18
403-J125 GN-18
403-J125 GN-18
403-J125 GN-18
403-J125 GN-18
119-J139 PK-16
119-J139 PK-16
119-J140 PK-16
119-J140 PK-16
502-J135 OR-16
502-J135 OR-16
502-J135 OR-16
501-J136 GN-16
501-J136 GN-16
501-J136 GN-16
506-J138 PU-16
506-J138 PU-16
506-J138 PU-16
119-J141 PK-16
590-J151 GY-16
590-J151 GY-16
590-J151 GY-16
518-J142 OR-16
518-J142 OR-16
518-J144 OR-16
518-J144 OR-16
518-J144 OR-16
518-J144 OR-16
611-J155 PU-14
611-J155 PU-14
611-J155 PU-14
611-J156 PU-14
611-J156 PU-14
611-J155 PU-14
611-J157 PU-14
611-J157 PU-14
611-J157 PU-14
611-J157 PU-14
119-J160 PK-16
119-J160 PK-16
119-J160 PK-16
X998-J162 BR-16
515-J169 GY-16
515-J169 GY-16
515-J169 GY-16
516-J170 GN-16
516-J170 GN-16
516-J170 GN-16
517-J171 BU-16
517-J171 BU-16
517-J171 BU-16
518-J172 OR-16
518-J172 OR-16
518-J172 OR-16
X998-J177 BR-16
X998-J177 BR-16
X998-J177 BR-16
X998-J177 BR-16
X998-J177 BR-16
J815-J214 BK-18
J815-J214 BK-18
J813-J222 BK-18
J813-J222 BK-18
J813-J222 BK-18
J813-J221 BK-18
J813-J221 BK-18
J813-J221 BK-18
J813-J323 BK-18
J813-J323 BK-18
A958-J223 WH-18
A958-J223 WH-18
A958-J223 WH-18
A958-J223 WH-18
F790-J228 BR-18
F790-J228 BR-18
F790-J228 BR-18
F790-J228 BR-18
706-J229 BR-18
706-J229 BR-18
706-J229 BR-18
706-J229 BR-18
A252-J231 BK-16
A252-J231 BK-16
A252-J230 BK-16
A252-J230 BK-16
A252-J232 BK-14
A252-J232 BK-14
J842-J241 BK-18
J842-J241 BK-18J842-J242 BK-18
J842-J242 BK-18
J842-J242 BK-18
J842-J243 BK-18
J842-J243 BK-18
J842-J243 BK-18
A251-J252 BK-16
A251-J252 BK-16
A251-J253 BK-16
A251-J253 BK-16
A251-J254 BK-16
A251-J254 BK-16
T807-J255 WH-16
T807-J255 WH-16
T807-J255 WH-16
T807-J255 WH-16
R807-J262 WH-16
R807-J262 WH-16
R807-J262 WH-16
R807-J262 WH-16
T998-J256 BR-16
T998-J256 BR-16
T998-J256 BR-16
T998-J256 BR-16
R998-J263 BR-16
R998-J263 BR-16
R998-J263 BR-16
R998-J263 BR-16
T810-J257 BR-16
T810-J257 BR-16
T810-J257 BR-16
T810-J257 BR-16
R810-J264 BR-16
R810-J264 BR-16
R810-J264 BR-16
R810-J264 BR-16
X809-J260 BU-14
X809-J260 BU-14
X809-J260 BU-14
X809-J260 BU-14
X337-J261 WH-14
X337-J261 WH-14
X337-J261 WH-14
X337-J261 WH-14
119-J160 PK-16
614-F2 PU-16
614-F24 PU-16
103-J274 RD-14
103-J274 RD-14103-J275 RD-14
103-J275 RD-14
103-J275 RD-14
103-J275 RD-14
103-J275 RD-14
149-J277 RD-14
149-J330 RD-14
149-J330 RD-14
149-J330 RD-14
149-J330 RD-14
149-J330 RD-14
627-J288 YL-14
627-J288 YL-14
627-J288 YL-14
627-J288 YL-14
627-J288 YL-14
612-J289 GY-14
612-J289 GY-14
612-J289 GY-14
612-J289 GY-14
124-J290 GN-14
124-J290 GN-14
124-J290 GN-14
124-J290 GN-14
124-J290 GN-14
124-J290 GN-14
522-J293 WH-14
522-J293 WH-14
522-J293 WH-14
614-J295 PU-14
614-J296 PU-14
614-J296 PU-14
614-J296 PU-14
614-J296 PU-14
614-J297 PU-14
614-J297 PU-14
614-J297 PU-14
614-J297 PU-14
622-J302 PU-14
622-J302 PU-14
622-J302 PU-14
622-J302 PU-14
622-J302 PU-14
623-J303 BU-14
623-J303 BU-14
623-J303 BU-14
623-J303 BU-14
623-J303 BU-14
608-J304 GN-14
608-J304 GN-14
608-J304 GN-14
608-J304 GN-14
608-J304 GN-14
607-J306 PK-14
607-J306 PK-14
607-J306 PK-14
607-J306 PK-14
607-J306 PK-14
604-J307 OR-14
604-J307 OR-14
604-J307 OR-14
604-J307 OR-14
631-J309 GY-14
631-J309 GY-14
631-J309 GY-14
631-J309 GY-14
T317-J310 YL-14
T317-J310 YL-14
T317-J310 YL-14
T317-J310 YL-14
R317-J311 YL-14
R317-J311 YL-14
R317-J311 YL-14
R317-J311 YL-14
E972-J313 BU-16
E972-J313 BU-16
E972-J313 BU-16
E972-J294 BU-16
E710-J314 BU-16
E710-J314 BU-16
E710-J314 BU-16
E710-J314 BU-16
A
C
E
F
H
J
K
L
M
N
113-AJ31 OR-18
R982-AJ3 YL-16
J879-AJ2 GN-18
R982-AJ4 YL-16
614-AJ6 PU-16
185-AJ7 YL-16 185-AJ12 YL-18
185-AJ8 YL-18
185-AJ13 YL-18
614-AJ14 PU-16
185-AJ9 YL-18
200-AJ16 BK-16 200-AJ17 BK-16
200-AJ18 BK-16
R982-AJ20 YL-16
614-AJ15 PU-16
A589-AJ25 OR-16
A590-AJ26 BU-16
614-AJ11 PU-16
R982-AJ24 YL-16
200-AJ22 BK-18
200-AJ21 BK-18
C598-AJ37 OR-16
C597-AJ36 BU-16
614-AJ15 PU-16
R982-AJ20 YL-16
R982-AJ19 YL-16
185-AJ13 YL-18
614-AJ11 PU-16
R982-AJ24 YL-16
185-AJ9 YL-18
C597-AJ36 BU-16
C598-AJ37 OR-16
A590-AJ26 BU-16
A589-AJ25 OR-16
J879-AJ2 GN-18
CENTER CONSOLE
CENTER CONSOLE
C597-M2 BU-16
C598-M1 OR-16
A589-L1 OR-16
A590-L2 BU-16 A590-J128 BU-16
A590-J128 BU-16
A590-J128 BU-16
A590-J128 BU-16
A589-J129 OR-16
A589-J129 OR-16
A589-J129 OR-16
A589-J129 OR-16
185-J130 YL-16
185-J130 YL-16
185-J130 YL-16
185-J130 YL-16
185-J130 YL-16
185-J130 YL-16
C598-J82 OR-16
C598-J82 OR-16
C598-J82 OR-16
C598-J82 OR-16
C598-J82 OR-16
C597-J81 BU-16
C597-J81 BU-16
C597-J81 BU-16
C597-J81 BU-16
C597-J81 BU-16
113-C42 OR-18
113-C42 OR-18
113-C42 OR-18
892-C46 BR-18
892-C46 BR-18
893-C45 GN-18
893-C45 GN-18
614-K53 PU-16
614-K53 PU-16
614-K42 PU-16
614-K42 PU-16
518-J143 OR-16
518-J143 OR-16
103-J312 RD-14
103-J312 RD-14
103-J312 RD-14
C569-AJ27 YL-16
135-F15 BU-14
135-F17 BU-16
135-F17 BU-16
200-F18 BK-16
200-F18 BK-16
113-F19 OR-16
113-F19 OR-16
A513-F22 PK-16
A513-F22 PK-16
614-J325 PU-14
614-J325 PU-14
614-J325 PU-14
614-J325 PU-14
135-J16 BU-14
135-J16 BU-14
135-J16 BU-14
135-J16 BU-14
135-J16 BU-14
135-J16 BU-14
AJ
200-J335 BK-14
200-J335 BK-14
200-J335 BK-14
200-J335 BK-14
200-J244 BK-14
200-J244 BK-14
200-J244 BK-14
200-J244 BK-14
200-J337 BK-14
200-J337 BK-14
200-J337 BK-14
200-J337 BK-14
200-J340 BK-16
200-J340 BK-16
200-J341 BK-16
200-J341 BK-16
200-J343 BK-16
200-J341 BK-16
200-J344 BK-14
200-J344 BK-14
200-J344 BK-14
185-J130 YL-16
J879-AJ28 GN-18
J879-AJ28 GN-18
113-AJ29 OR-16
113-AJ29 OR-16
M996-AJ30 PK-16
M996-AJ30 PK-16
113-AJ1 OR-16
J767-AJ34 GY-16
J767-AJ34 GY-16
C976-AJ32 YL-16
C976-AJ32 YL-16
F780-AJ33 PK-16
F780-AJ33 PK-16
J815-J215 BK-18
J815-J215 BK-18
J815-J215 BK-18
C985-J205 BU-18
C985-J205 BU-18
C985-J205 BU-18
C429-J54 GY-18
C429-J54 GY-18
C429-J54 GY-18
C429-J54 GY-18
G736-J56 PK-18
G736-J56 PK-18
G736-J56 PK-18
G736-J56 PK-18
J845-J55 PU-18
J845-J55 PU-18
J845-J55 PU-18
J845-J55 PU-18
C473-J45 GN-18
C473-J45 GN-18
C473-J45 GN-18
C473-J45 GN-18
769-J48 BU-18
769-J48 BU-18
769-J48 BU-18
769-J48 BU-18
770-J49 GN-18
770-J49 GN-18
770-J49 GN-18
770-J49 GN-18
C484-J51 YL-18
C484-J51 YL-18
C484-J51 YL-18
C484-J51 YL-18
J802-J52 OR-18
J802-J52 OR-18
J802-J52 OR-18
J802-J52 OR-18
J806-J53 GY-18
J806-J53 GY-18
J806-J53 GY-18
J806-J53 GY-18
J815-AM3 BK-18
J815-AM3 BK-18
J815-AM3 BK-18
J845-AM9 PU-18
J845-AM9 PU-18
J845-AM9 PU-18
A253-J202 BK-14
A253-J202 BK-14
A253-AM20 BK-14
A253-AM20 BK-14A253-AM23 BK-16
A253-AM23 BK-16
A253-AM24 BK-16
A253-AM24 BK-16
126-AM21 RD-16
126-AM21 RD-16
126-AM22 RD-16
126-AM22 RD-16
901-AM53 WH-16
901-AM53 WH-16
901-AM53 WH-16
901-AM53 WH-16
754-AM52 BU-16
754-AM52 BU-16
754-AM52 BU-16
754-AM52 BU-16
755-AM51 OR-16
755-AM51 OR-16
755-AM51 OR-16
755-AM51 OR-16
751-AM50 GN-16
751-AM50 GN-16
751-AM50 GN-16
751-AM50 GN-16
752-AM49 YL-16
752-AM49 YL-16
752-AM49 YL-16752-AM49 YL-16
J831-AM58 GY-18
J831-AM58 GY-18
J831-AM58 GY-18
J831-AM58 GY-18
J832-AM57 YL-18
J832-AM57 YL-18
J832-AM57 YL-18J832-AM57 YL-18
902-AM56 BR-16
902-AM56 BR-16
902-AM56 BR-16
902-AM56 BR-16
900-AM55 PU-16
900-AM55 PU-16
900-AM55 PU-16
900-AM55 PU-16
705-J113 PK-18
705-J113 PK-18
705-J113 PK-18
A493-J111 YL-18
A493-J111 YL-18
A493-J111 YL-18
E908-J320 BR-18
E908-J320 BR-18
E908-J320 BR-18
E909-J321 WH-18
E909-J321 WH-18
E909-J321 WH-18
A491-J110 WH-18
A491-J110 WH-18
A491-J110 WH-18
481-J112 GN-18
481-J112 GN-18
481-J112 GN-18
705-AM44 PK-18
705-AM44 PK-18
705-AM44 PK-18
J813-J220 BK-18
J813-J220 BK-18
J813-J220 BK-18
J813-J220 BK-18
J815-J216 BK-18
J815-J216 BK-18
J815-J216 BK-18
J815-J216 BK-18
C985-J47 BU-18
C985-J47 BU-18
C985-J47 BU-18
C985-J47 BU-18
J818-J213 OR-16
J818-J213 OR-16
J818-J213 OR-16
J818-J213 OR-16
J818-J213 OR-16
J812-J65 PK-18
J812-J65 PK-18
J812-J65 PK-18
J812-J65 PK-18
J812-J65 PK-18
432-J58 PK-18
432-J58 PK-18
432-J58 PK-18
432-J58 PK-18
432-J58 PK-18
J805-J60 YL-18
J805-J60 YL-18
J805-J60 YL-18
J805-J60 YL-18
J805-J60 YL-18
C467-J61 BU-18
C467-J61 BU-18
C467-J61 BU-18
C467-J61 BU-18
C467-J61 BU-18
429-J62 YL-18
429-J62 YL-18
429-J62 YL-18
429-J62 YL-18
429-J62 YL-18
C428-J63 GN-18
C428-J63 GN-18
C428-J63 GN-18
C428-J63 GN-18
C428-J63 GN-18
J810-J64 PU-18
J810-J64 PU-18
J810-J64 PU-18
J810-J64 PU-18
J810-J64 PU-18
987-J66 WH-18
987-J66 WH-18
987-J66 WH-18
987-J66 WH-18
987-J66 WH-18
J816-J317 GN-18
J816-J317 GN-18
J816-J317 GN-18
J816-J317 GN-18
J816-J317 GN-18
773-J319 GY-18
773-J319 GY-18
773-J319 GY-18
773-J319 GY-18
773-J319 GY-18
775-J322 BR-18
775-J322 BR-18
775-J322 BR-18
775-J322 BR-18
775-J322 BR-18
774-J67 YL-18
774-J67 YL-18
774-J67 YL-18
774-J67 YL-18
774-J67 YL-18
J803-J115 BR-18
J803-J115 BR-18
J803-J115 BR-18
J803-J115 BR-18
J803-J115 BR-18
J804-J116 WH-18
J804-J116 WH-18
J804-J116 WH-18
J804-J116 WH-18
J804-J116 WH-18
C466-J117 YL-18
C466-J117 YL-18
C466-J117 YL-18
C466-J117 YL-18
C466-J117 YL-18
F433-J118 PU-18
F433-J118 PU-18
F433-J118 PU-18
F433-J118 PU-18
F433-J118 PU-18
614-AJ14 PU-16
614-AJ35 PU-16 614-AJ10 PU-16
R982-AJ23 YL-16
R982-AJ23 YL-16
614-J17 PU-14
614-J17 PU-14
614-J17 PU-14
614-J17 PU-14
614-J17 PU-14
X998-K64 BR-16
X998-K65 BR-16
J811-K72 BK-18
J811-K72 BK-18
J811-K66 BK-18
J811-K66 BK-18
REAR COMPARTMENT
120-N7 YL-12
120-N7 YL-12
120-N29 YL-16
120-N29 YL-16
105-N1 RD-16
105-N9 RD-16
105-N8 RD-16
105-N8 RD-16
200-N12 BK-16
200-N13 BK-14
200-N13 BK-14
E972-N22 BU-16
E972-N22 BU-16 E972-N24 BU-16
E972-N24 BU-16
E972-N23 BU-16
E972-N23 BU-16
876-N25 OR-16
876-N25 OR-16
876-N25 OR-16
875-N26 BU-16
875-N26 BU-16
875-N26 BU-16
F419-N27 YL-16
F419-N27 YL-16
F419-N27 YL-16
F418-N28 GN-16
F418-N28 GN-16
F418-N28 GN-16
A251-N17 BK-16
A251-N17 BK-16
A251-N17 BK-16
893-N18 GN-16
893-N18 GN-16
893-N18 GN-16
892-N19 BR-16
892-N19 BR-16
892-N19 BR-16
E793-N20 BU-16
E793-N20 BU-16
E793-N20 BU-16
E794-N21 YL-16
E794-N21 YL-16
E794-N21 YL-16
C569-N14 YL-16
C569-N16 YL-16
C569-N15 YL-16
C569-N15 YL-16
A513-N10 PK-16
A513-N10 PK-16
592-N11 BU-16
592-N11 BU-16
J841-N33 YL-18
J841-N33 YL-18
J841-N33 YL-18
J840-N32 WH-18
J840-N32 WH-18
J840-N32
WH-18
636-N30 GN-18
636-N30 GN-18
636-N30 GN-18
635-N31 BU-18
635-N31 BU-18
635-N31 BU-18
C569-J78 YL-16
C569-J78 YL-16
C569-J79 YL-16
C569-J79 YL-16
C569-J79 YL-16
C569-J4 YL-16
C569-J4 YL-16
C569-J4 YL-16
105-J77 RD-16
105-J77 RD-16105-J1 RD-16
105-J1 RD-16
105-J1 RD-16
105-J76 RD-16
105-J76 RD-16
105-J76 RD-16
105-J76 RD-16
105-J76 RD-16
120-J27 YL-12
120-J27 YL-12
120-J27 YL-12
120-J27 YL-12
592-J6 BU-16
592-J6 BU-16
592-J6 BU-16
592-J6 BU-16
A513-J5 PK-16
A513-J5 PK-16
A513-J5 PK-16
A513-J5 PK-16
A513-J5 PK-16
A513-J5 PK-16
A513-J5 PK-16
630-F53 GY-14
630-F53 GY-14
630-F53 GY-14630-J80 GY-14
630-J80 GY-14
630-J80 GY-14
630-J80 GY-14
630-J80 GY-14
12V AUX
CONN
200-K37 BK-16
J879-AJ39 GN-18
200-AJ38 BK-16
612-F54 GY-14
612-F55 GY-14
121-F56 YL-14
121-F57 YL-14
614-F58 PU-16
614-F58 PU-16
R982-F60 YL-16
R982-F60 YL-16
614-F2 PU-16
614-F24 PU-16
540-J187 WH-16
540-J187 WH-16
540-J187 WH-16
540-J187 WH-16
540-J187 WH-16
539-J188 BU-16
539-J188 BU-16
539-J188 BU-16
539-J188 BU-16
539-J188 BU-16
J767-J84 GY-18
J767-J85 GY-18
J767-J83 GY-18
C976-J134 YL-16
C976-J134 YL-16
C976-J134 YL-16C976-J134 YL-16
C976-J134 YL-16
C976-J134 YL-16
C976-J134 YL-16
F780-J147 PK-16
F780-J147 PK-16
F780-J147 PK-16F780-J147 PK-16
F780-J147 PK-16
F780-J147 PK-16
F780-J147 PK-16
F419-J191 YL-16
F419-J191 YL-16
F419-J191 YL-16
F419-J332 YL-16
F418-J193 GN-16
F418-J193 GN-16
F418-J193 GN-16
F418-J338 GN-16
A251-J195 BK-18
A251-J195 BK-18
A251-J195 BK-18
876-J197 OR-16
876-J197 OR-16
876-J197 OR-16
876-J197 OR-16
875-J198 BU-16
875-J198 BU-16
875-J198 BU-16
875-J198 BU-16
200-J199 BK-14
200-J199 BK-14
200-J199 BK-14
E793-J234 BU-16
E793-J234 BU-16
E793-J234 BU-16
E793-J234 BU-16
E794-J235 YL-16
E794-J235 YL-16
E794-J235 YL-16
E794-J235 YL-16
200-J236 BK-14
200-J236 BK-14
200-J236 BK-14
200-J236 BK-14
127-J237 RD-12
127-J237 RD-12
128-J239 RD-12
128-J239 RD-12
127-J238 RD-14
127-J238 RD-14
127-J238 RD-14
128-J240 RD-14
128-J240 RD-14
128-J240 RD-14
E972-J294 BU-16
E972-J189 BU-16
E972-J189 BU-16
E972-J189 BU-16
614-J300 PU-14
614-J300 PU-14
614-J300 PU-14
614-J300 PU-14
X800-J161 OR-16
X800-J161 OR-16
X800-J161 OR-16
X912-J163 GN-16
X912-J163 GN-16
X912-J163 GN-16
M914-J354 WH-18
M914-J354 WH-18
M914-J354 WH-18
M914-J354 WH-18
619-J308 GN-14
619-J308 GN-14619-J324 GN-14
619-J324 GN-14
619-J324 GN-14
619-J324 GN-14
619-J326 GN-14
619-J326 GN-14
109-E33 RD-4
110-E49 RD-4
110-E49 RD-4
H801-AM48 PU-16
H801-AM48 PU-16
H801-AM48 PU-16
H801-AM48 PU-16
H802-AM31 GY-16
H802-AM31 GY-16
H802-AM31 GY-16
H802-AM31 GY-16
G736-AM62 PK-16
G736-AM62 PK-16
G736-AM62 PK-16
AM
J819-J57 BR-16
J819-J57 BR-16
J819-J57 BR-16
J819-J57 BR-16
J819-J57 BR-16
C985-J248 BU-16
C985-J248 BU-16
C985-J248 BU-16
C985-J248 BU-16
101-CK3
CONN 16
RD-4
101-CK4 RD-4
101-CK1 RD-10
101-CK1 RD-10
101-CK2 RD-10
101-CK2 RD-10
101-CK5 RD-10
101-CK5 RD-10
101-CK6 RD-10
101-CK6 RD-10
101-CK8 RD-10
101-CK8 RD-10
101-CK7 RD-10
101-CK7 RD-10
101-CK7 RD-10
101-CK5 RD-10
RD-10
101-CK1 RD-10
592-E10 BU-16
103-J276 RD-14
103-J276 RD-14
103-J276 RD-14
103-J276 RD-14
K992-J126 PU-16
K992-J126 PU-16
K992-J126 PU-16
K992-J126 PU-16
R982-K17 YL-16
R982-K17 YL-16
R982-K27 YL-16
R982-K27 YL-16
R982-K73 YL-16
R982-K73 YL-16
500-A67 BR-16
500-A67 BR-16
575-A19 YL-16
575-A19 YL-16
500-A67 BR-16
575-A19 YL-16
200-A22 BK-16
591-J336 WH-16
591-J336 WH-16
591-J336 WH-16
119-J259 PK-16
119-J259 PK-16
119-J259 PK-16
575-J137 YL-16
575-J137 YL-16
575-J137 YL-16
575-J137 YL-16
500-J328 BR-16
500-J328 BR-16
500-J328 BR-16
H863-K46 BU-16
H863-K46 BU-16
H863-K46 BU-16
J800-CF40 OR-16
J800-CF40 OR-16
J800-CF40 OR-16
J806-CF39 GY-18
J806-CF39 GY-18
J806-CF39 GY-18
J802-CF38 OR-18
J802-CF38 OR-18
J802-CF38 OR-18
C484-CF37 YL-18
C484-CF37 YL-18
C484-CF37 YL-18
770-CF35 GN-18
770-CF35 GN-18
770-CF35 GN-18
769-CF34 BU-18
769-CF34 BU-18
769-CF34 BU-18
C473-CF33 GN-18
C473-CF33 GN-18
C473-CF33 GN-18
J766-CF32 PU-18
J766-CF32 PU-18
J766-CF32 PU-18
C429-CF20 GY-18
C429-CF20 GY-18
C429-CF20 GY-18
C985-CF31 BU-18
C985-CF31 BU-18
C985-CF31 BU-18
J767-CF41 GY-18
J767-CF41 GY-18
J767-CF41 GY-18
J765-CF29 BU-16
J765-CF29 BU-16
J765-CF29 BU-16
J765-CF30 BU-16
J765-CF30 BU-16
J765-CF5 BU-16
J765-CF5 BU-16
E907-CF26 GY-16
E907-CF26 GY-16
E907-CF26 GY-16
E907-CF26 GY-16
E906-CF16 OR-16
E906-CF16 OR-16
E906-CF16 OR-16
E906-CF16 OR-16
E903-CF27 YL-16 E903-CF27 YL-16
E903-CF27 YL-16
E903-CF27 YL-16
E902-CF28 PU-16
E902-CF28 PU-16
E902-CF28 PU-16
E902-CF28 PU-16
428-CF15 OR-16
428-CF15 OR-16
428-CF15 OR-16428-CF15 OR-16
J823-CF23 YL-16
J823-CF23 YL-16
J823-CF23 YL-16
J823-CF23 YL-16
E901-CF24 GN-16
E901-CF24 GN-16
E901-CF24 GN-16
E901-CF24 GN-16
E900-CF25 WH-16
E900-CF25 WH-16
E900-CF25 WH-16
E900-CF25 WH-16
426-CF17 BR-16
426-CF17 BR-16
426-CF17 BR-16
426-CF17 BR-16
892-CF1 BR-18
892-CF1 BR-18
892-CF1 BR-18
893-CF2 GN-18
893-CF2 GN-18
893-CF2 GN-18
E908-CF6 BR-18
E908-CF6 BR-18
E908-CF6 BR-18
E909-CF7 WH-18
E909-CF7 WH-18
E909-CF7 WH-18
450-CF8 YL-18
450-CF8 YL-18
450-CF8 YL-18
451-CF9 BR-18
451-CF9 BR-18
451-CF9 BR-18
A491-CF11 WH-18
A491-CF11 WH-18
A491-CF11 WH-18
A493-CF18 YL-18
A493-CF18 YL-18
A493-CF18 YL-18
113-CF19 OR-18
113-CF19 OR-18
113-CF19 OR-18
481-CF22 GN-18
481-CF22 GN-18
481-CF22 GN-18
126-AM4 RD-16
126-AM4 RD-16
126-AM1 RD-16
126-AM1 RD-16
A253-AM6 BK-16
A253-AM6 BK-16
A253-AM5 BK-16
A253-AM5 BK-16
705-J113 PK-18
170-J166 RD-14
170-J166 RD-14
170-J166 RD-14
A251-J190 BK-16
A251-J190 BK-16
A251-J190 BK-16
A251-J190 BK-16
619-J326 GN-14
322-J192 GY-16
322-J192 GY-16
322-J192 GY-16
322-J192 GY-16
322-J192 GY-16
122-J194 BU-16
122-J194 BU-16
122-J194 BU-16
122-J194 BU-16
308-E47 YL-16
308-E47 YL-16
308-E47 YL-16
200-E48 BK-16
200-E48 BK-16
200-E48 BK-16
308-J258 YL-16
308-J258 YL-16
308-J299 YL-16
308-J299 YL-16
308-J299 YL-16
308-J299 YL-16
308-J299 YL-16
308-J305 YL-16
308-J305 YL-16
308-J305 YL-16
327-J318 PK-14
327-J318 PK-14
327-J372 PK-14
327-J372 PK-14
149-J277 RD-14
149-J331 PU-14149-J331 PU-14
149-J331 PU-14
149-J331 PU-14
F419-J332 YL-16
F418-J338 GN-16
F419-J196 YL-16
F419-J196 YL-16
F419-J196 YL-16
F418-J346 GN-16
F418-J346 GN-16
F418-J346 GN-16
E972-J349 BU-16
E972-J349 BU-16
E972-J349 BU-16
X717-J350 YL-16
X717-J350 YL-16
X717-J350 YL-16
X717-J350 YL-16
X720-J351 GN-16
X720-J351 GN-16
X720-J351 GN-16
X720-J351 GN-16
200-J352 BK-16
200-J352 BK-16
200-J352 BK-16
200-J352 BK-16
200-J352 BK-16
200-J353 BK-16
200-J353 BK-16
200-J353 BK-16
139-J364 OR-10
139-J364 OR-10
139-J364 OR-10
139-J364 OR-10
139-J364 OR-10
139-J364 OR-10
X998-A37 BR-16
X998-A37 BR-16
X998-J301 BR-16
X998-J301 BR-16
X998-J301 BR-16
112-CK27 PU-12
112-CK27 PU-12
125-E53 OR-12
125-E53 OR-12
R982-J355 YL-16
R982-J355 YL-16R982-J366 YL-16
R982-J366 YL-16
R982-J366 YL-16
R982-J366 YL-16
R982-J365 YL-16
R982-J365 YL-16
R982-J365 YL-16
R982-J365 YL-16
R982-J367 YL-16
R982-J367 YL-16
R982-J367 YL-16
R982-J367 YL-16
E972-C43 BU-16
E972-C43 BU-16
E972-C43 BU-16
411-J347 PK-16
411-J347 PK-16
411-J347 PK-16
411-J347 PK-16
411-J347 PK-16
E709-J362 WH-16
E709-J362 WH-16
E709-J362 WH-16
E709-J362 WH-16
J849-J369 WH-16
J849-J369 WH-16
J849-J369 WH-16
J849-J369 WH-16
TWISTED
WIRES
TWISTED
WIRES
TWISTED
WIRES
TWISTED WIRES
TWISTED WIRES
TWISTED WIRES
TWISTED WIRES
TWISTED
WIRES
109-J342 RD-4
109-J342 RD-4
109-J342 RD-4
109-J342 RD-4
110-J247 RD-4
110-J247 RD-4
110-J247 RD-4
110-J247 RD-4
T998-A21 BR-16
101-AA1 RD-00
101-AA1
105-J356 RD-16
105-J356 RD-16
105-J356 RD-16
105-J356 RD-16
105-J356 RD-16
105-J356 RD-16
327-J318 PK-14
327-J371 PK-16
327-J371 PK-16
CF
CK
CABLE AS.
AA
200-J343 BK-16
LOC
R982-F11 YL-16
R982-F11 YL-16
R982-J377 YL-16
R982-J377 YL-16
R982-J377 YL-16
R982-J377 YL-16
H428-J378 GY-16
H428-J378 GY-16
H428-J378 GY-16
H428-J378 GY-16
H428-J378 GY-16
J817-J379 WH-16
J817-J379 WH-16
J817-J379 WH-16
J817-J379 WH-16
J817-J379 WH-16
H429-J380 BU-16
H429-J380 BU-16
H429-J380 BU-16
H429-J380 BU-16
H429-J380 BU-16
G439-J381 YL-16
G439-J381 YL-16
G439-J381 YL-16
G439-J381 YL-16
J846-J382 BR-16
J846-J382 BR-16
J846-J382 BR-16
J846-J382 BR-16
J846-J382 BR-16
176-J384 RD-16
176-J384 RD-16
176-J383 RD-16
176-J383 RD-16
176-J385 RD-16
176-J385 RD-16
A252-J359 BK-16
A252-J359 BK-16
A252-J358 BK-16
A252-J358 BK-16
A252-J59 BK-16
A252-J59 BK-16
J800-J368 OR-16
J800-J368 OR-16
J800-J368 OR-16
J800-J368 OR-16
G428-CF42 BU-16
G428-CF42 BU-16
G428-CF42 BU-16
G428-CF42 BU-16
200-K25 BK-16
200-K25 BK-16
200-K25 BK-16
200-J386 BK-16
200-J386 BK-16
200-J386 BK-16
200-J386 BK-16
149-9986
149-9988
149-9993
167-3991
149-9984
167-3993
149-9987
149-9989
167-3990
167-3992
149-9980
149-9981
149-9991
03
03
02
01
03
01
03
02
04
02
01
01
02
H-8
I-6
A-4
H-4
E-11
K-13
K-10
F-4
C-4
E-8
K-6
L-7
C-7
G-12
E-7
777-J361 PU-10
777-J361 PU-10
777-J361 PU-10
777-J361 PU-10
E456-J204 WH-16
E456-J204 WH-16
E456-J204 WH-16
E456-J204 WH-16
H803-AM54 BU-18
H803-AM54 BU-18
H803-AM54 BU-18
H803-J388 BU-18
H803-J388 BU-18
H803-J388 BU-18
799-CF4 WH-16
799-CF4 WH-16 799-CF43 WH-16
799-CF43 WH-16
799-CF43 WH-16
799-CF48 WH-16
799-CF48 WH-16 799-J389 WH-16
799-J389 WH-16
799-J389 WH-16
200-H11 BK-14
200-H11 BK-14
801-J392 PK-16
801-J392 PK-16
801-J392 PK-16
801-J392 PK-16
J848-J393 BU-16
J848-J393 BU-16
J848-J393 BU-16
J848-J393 BU-16
J765-J210 BU-16
J765-J210 BU-16
J765-J210 BU-16
J765-CF46 BU-16
R988-CF47 PK-16
R988-CF47 PK-16
170-CG16 RD-16
A251-CG17 BK-16
893-CG18 GN-18
892-CG19 BR-18
113-CG20 OR-16
K983-CG12 BU-18
C453-CG11 YL-18
A451-CG10 WH-18
E456-CG7 WH-16
J842-CG2 BK-18
170-J224 RD-16
170-J224 RD-16
A251-J339 BK-16
A251-J339 BK-16
A252-J395 BK-14
A252-J395 BK-14
A253-J396 BK-14
A253-J396 BK-14
176-J398 RD-12
176-J398 RD-12
176-J398 RD-12
176-E2 RD-12
176-E2 RD-12
A253-AM12 BK-14
A253-AM12 BK-14
E972-J399 BU-16
E972-J399 BU-16 E972-CG25 BU-16
CG 02 L-14
610-J298 OR-14
610-J298 OR-14
610-J298 OR-14
610-J298 OR-14
610-J298 OR-14
F419-CG9 YL-16
F419-CG9 YL-16
F418-CG8 GN-16
F418-CG8 GN-16
TO ENGINE CONNECTOR CN-C1
(SHEET 2)(E-8)
TO ENGINE CONNECTOR CN-C2
(SHEET 2)(E-8)
TO CONNECTOR AY-C2
(SHEET 2)(E-10)
TO CONNECTOR AY-C3
(SHEET 2)(E-10)
TO CONNECTOR AN-C19
(SHEET 2)(E-11)
TO CONNECTOR CH-C1
(SHEET 2)(E-13)
TO CONNECTOR AW-C22
(SHEET 2)(E-13)
TO CONNECTOR AW-C20
(SHEET 2)(E-14)
TO TERMINAL EA-T2
(SHEET 2)(I-14)
410-F65 WH-16
410-F65 WH-16
J847-F66 GN-16
J847-F66 GN-16
J847-J376 GN-16
J847-J376 GN-16
J847-J376 GN-16
J847-J376 GN-16
J847-J376 GN-16
410-J357 WH-16
410-J357 WH-16
410-J357 WH-16
410-J357 WH-16
410-J357 WH-16
614-K76 PU-16
R982-K74 YL-16
393-K77 BR-16
393-K77 BR-16
393-K77 BR-16
393-K77 BR-16
J842-K78 BK-16
J842-K78 BK-16
J842-K78 BK-16
J842-K78
BK-16
626-K79 BU-16
626-K79 BU-16
626-K79 BU-16
626-K79 BU-16
603-F63 PK-16
603-F63 PK-16
603-F63 PK-16
603-F63 PK-16
149-F62 PU-14
149-F62 PU-14
149-F62 PU-14
149-F62 PU-14
393-J200 BR-16
393-J200 BR-16
393-J200 BR-16
393-J200 BR-16
393-J200 BR-16
626-J201 BU-16
626-J201 BU-16
626-J201 BU-16
626-J201 BU-16
626-J201 BU-16
J842-J375 BK-16
J842-J375 BK-16
J842-J375 BK-16
J842-J375 BK-16
J842-J375 BK-16
TWISTED WIRES
603-J390 PK-16
603-J390 PK-16
603-J390 PK-16
603-J390 PK-16
603-J390 PK-16
149-J391 PU-14
149-J391 PU-14
200-EC1 BK-12 200-EC2 BK-14
200-EC3 BK-14
200-EC4 BK-14
593-EC7 GN-14
593-EC8 GN-14
521-EC6 YL-14
125-EC5 OR-12
CONDENSER GP 156-3581
125-J400 OR-12
125-J400 OR-12
EC 159-2765 00 J-9
02
WIRE AS.
EF/EG/EH/EJ/EK/EV 01
EL
EM/EN
01
01
01
X721-J405 BR-18
X721-J405 BR-18
USER DEFINED
ENG SHUTDOWN
C989-J50 PU-18
C989-J50 PU-18
C989-J50 PU-18
C989-CF36 PU-18
C989-CF36 PU-18
C989-CF36 PU-18
425-CF44 PK-18
425-CF44 PK-18
425-CF44 PK-18 425-J406 PK-18
425-J406 PK-18
425-J406 PK-18
425-J406 PK-18
150-0000
158-8585
158-8586
ER 01
201-ER1 BK-16
R982-K45 YL-16
R982-K45 YL-16
R982-K45 YL-16
R982-K40 YL-16
R982-K40 YL-16
X998-K65 BR-16
614-K75 PU-16
614-K75 PU-16
614-K75 PU-16
EU 01
J764-CF45 BR-18
716-AJ5 BU-18
711-AJ40 BR-18
712-AJ41 WH-18
713-AJ42 OR-18
714-AJ43 YL-18
715-AJ44 GN-18
149-9998
140-1391
CUSTOMER
MACHINE
LOCKOUT
RELAY PANEL
CENTER CONSOLE
XMSN CAB
INSTRUMENT PANEL
XMSN CAB
BREAKER PANEL POWER
BREAKER PANEL
CONDENSER
OVERHEAD CONSOLE
A/C BLOWER
MAIN CAB
SWITCH PANEL
LH ELECTRIC WINDOW
RH ELECTRIC WINDOW
REAR COMPARTMENT
BREAKER PANEL
PWR WINDOW BKR TO WIPER BKR
BREAKER PANEL
XMSN LOCKOUT CODE PLUG
IBC BKR TO VIMS BKR
BATTERY STUD TO BREAKER PANEL
COMPONENT LIFE MONITOR
602-F27 WH-16
602-F27 WH-16
508-F29 PU-16
508-F29 PU-16
509-F25 WH-16
509-F25 WH-16
511-F33 BR-16
511-F33 BR-16
512-F31 GN-16
512-F31 GN-16
602-J203 WH-16
602-J203 WH-16
508-J409 PU-16
508-J409 PU-16
509-J410 WH-16
509-J410 WH-16
511-J411 BR-16
511-J411 BR-16
512-J412 GN-16
512-J412 GN-16
508-EW1 PU-16
508-EW1 PU-16
509-EW2 WH-16
509-EW2 WH-16
511-EW3 BR-16 511-EW3 BR-16
512-EW4 GN-16 512-EW4 GN-16
602-EW5 WH-16
200-EW6 BK-14
149-9999
158-8616
158-8617
TWISTED
WIRES
101-EV1 RD-10
126-E3 RD-14
126-E3 RD-14
126-E4 RD-14
126-E4 RD-14
126-AM2 RD-14 126-AM2 RD-14
126-AM7 RD-14
126-AM7 RD-14
J764-CF10 BR-18
J764-CF3 BR-18
FUTURE
CAN LINK
A234-CF14 BK-18
A234-CF14 BK-18
F712-CF13 GY-18
F712-CF13 GY-18
F711-CF12 GN-18
F711-CF12 GN-18
126-J450 RD-14
126-J450 RD-14
126-J450 RD-14
126-J451 RD-14
126-J451 RD-14
126-J451 RD-14
F711-J23 GN-18
F711-J23 GN-18
F712-J22 GY-18
F712-J22 GY-18
A234-J26 BK-18
A234-J26 BK-18
FUTURE
CAN LINK
FUTURE
CAN LINK
A234-J31 BK-18
A234-J31 BK-18 A234-CG23 BK-18
F712-J30 GY-18
F712-J30 GY-18 F712-CG22 GY-18
F711-J28 GN-18
F711-J28 GN-18 F711-CG21 GN-18
FUTURE
CAN LINK
F712-J91 GY-18
F712-J91 GY-18
F711-J90 GN-18
F711-J90 GN-18
A234-J94 BK-18
A234-J94 BK-18
716-J39 BU-16
716-J39 BU-16
716-J39 BU-16
716-J39 BU-16
711-J46 BR-16
711-J46 BR-16
711-J46 BR-16
711-J46 BR-16
712-J86 WH-16
712-J86 WH-16
712-J86 WH-16
712-J86 WH-16
713-J87 OR-16
713-J87 OR-16
713-J87 OR-16
713-J87 OR-16
714-J88 YL-16
714-J88 YL-16
714-J88 YL-16
714-J88 YL-16
715-J89 GN-16
715-J89 GN-16
715-J89 GN-16
715-J89 GN-16
A492-J363 OR-18
A492-J363 OR-18
A492-J363 OR-18
A492-J363 OR-18
A492-J363 OR-18
J820-J397 OR-18
J820-J397 OR-18
J820-J397 OR-18
J820-J397 OR-18
J820-J397 OR-18
J821-J24 BR-18
J821-J24 BR-18
J821-J24 BR-18
J821-J24 BR-18
J821-J24 BR-18
J824-J348 GY-18
J824-J348 GY-18
J824-J348 GY-18
J824-J348 GY-18
J824-J348 GY-18
J825-J453 PU-18
J825-J453 PU-18
J825-J453 PU-18
J825-J453 PU-18
J825-J453 PU-18
J879-J441 GN-18
J879-J441 GN-18
J879-J441 GN-18
J879-J441 GN-18
J879-J329 GN-18
J879-J329 GN-18
J879-J442 GN-18
J879-J442 GN-18
J879-J442 GN-18
J879-J442 GN-18
J879-J440 GN-18
J879-J440 GN-18
J879-J440 GN-18
J879-J440 GN-18
J826-J414 PK-18
J826-J414 PK-18
J826-J414 PK-18
J826-J414 PK-18
J826-J414 PK-18J827-J415 GN-18
J827-J415 GN-18
J827-J415 GN-18
J827-J415 GN-18
J827-J415 GN-18
J828-J416 BU-18
J828-J416 BU-18
J828-J416 BU-18
J828-J416 BU-18
J828-J416 BU-18
J829-J419 OR-18
J829-J419 OR-18
J829-J419 OR-18
J829-J419 OR-18
J829-J419 OR-18
J830-J420 BR-18
J830-J420 BR-18
J830-J420 BR-18
J830-J420 BR-18
J830-J420 BR-18
J822-J93 WH-18
J822-J93 WH-18
J822-J93 WH-18
J822-J93 WH-18
J822-J93 WH-18
H867-A60 YL-16
H867-A16 YL-16
301-J433 BU-16
301-J433 BU-16
301-J433 BU-16
301-J433 BU-16
301-J433 BU-16
H809-J426 YL-16 H809-J426 YL-16
H809-J426 YL-16
H809-J426 YL-16
H809-J426 YL-16
321-J429 BR-16
321-J429 BR-16
321-J429 BR-16
321-J429 BR-16
321-J429 BR-16
307-J424 OR-16
307-J424 OR-16
307-J424 OR-16
307-J424 OR-16
307-J424 OR-16
326-J423 PU-16
326-J423 PU-16
326-J423 PU-16
326-J423 PU-16
326-J423 PU-16
H430-J425 BU-16
H430-J425 BU-16
H430-J425 BU-16
H430-J425 BU-16
H430-J425 BU-16
H863-J432 BU-16
H863-J432 BU-16
H863-J432 BU-16
H863-J432 BU-16
H863-J432 BU-16
M996-J29 PK-16
M996-J29 PK-16
M996-J29 PK-16
M996-J29 PK-16
M996-J29 PK-16
M996-J29 PK-16
200-J449 BK-12
200-J449 BK-12
173-J436 RD-12
173-J436 RD-12
173-J436 RD-12
173-J436 RD-12
173-J158 RD-16
173-J158 RD-16
173-J418 RD-16
173-J418 RD-16
173-J428 RD-16
173-J428 RD-16
173-J431 RD-16
173-J431 RD-16
173-J435 RD-16
173-J435 RD-16
J883-J421 BU-18
J883-J421 BU-18
J883-J421 BU-18
J883-J421 BU-18
J883-CF50 BU-18
J883-CF50 BU-18
J883-CF50 BU-18
J882-J95 BR-18
J882-J95 BR-18
J882-J95 BR-18
J882-J95 BR-18
J882-CF49 BR-18
J882-CF49 BR-18
J882-CF49 BR-18
J881-J96 YL-18
J881-J96 YL-18
J881-J96 YL-18
J881-J96 YL-18
J881-CF21 YL-18
J881-CF21 YL-18
J881-CF21 YL-18
A495-J97 GY-16
A495-J97 GY-16
A495-J97 GY-16
A495-J97 GY-16
A495-J97 GY-16
J878-J186 YL-18
J878-J186 YL-18
H864-J413 GN-18
H864-J413 GN-18
H864-J413 GN-18
H865-J448 BR-18
H865-J448 BR-18
H865-J448 BR-18
H865-J448 BR-18
H864-J413 GN-18
H807-AM8 YL-16
H807-AM8 YL-16
H807-AM8 YL-16
H807-AM13 YL-16
TWISTED WIRES
176-E1 RD-12
176-E1 RD-12176-J452 RD-12
176-J452 RD-12
176-J452 RD-12
126-AM10 RD-16
126-AM10 RD-16
A253-AM11 BK-16
A253-AM11 BK-16
FUTURE
CAN LINK
CONN 47
F711-N37 GN-18
F711-N37 GN-18
F711-N37 GN-18
F712-N36 GY-18
F712-N36 GY-18
F712-N36 GY-18
A234-N35 BK-18
A234-N35 BK-18
A234-N35 BK-18
H864-J413 GN-18
H865-J448 BR-18
EW 158-8590 02 C-4 SPEAKERS
HARNESS TAG "6"
HARNESS TAG "4"
HARNESS TAG "3"
HARNESS TAG "2"
HARNESS TAG "5"
HARNESS TAG "1"
103-EW7 RD-16103-J401 RD-16
103-J401 RD-16
J767-J207 GY-18
J767-J207 GY-18
J767-J207 GY-18
J767-J208 GY-18
J767-J208 GY-18
J767-J208 GY-18
J767-J208 GY-18
J767-J207 GY-18
J767-J131 GY-18
J767-J131 GY-18
J767-J131 GY-18
J767-J131 GY-18
J767-J131 GY-18
J767-J131 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J132 GY-18
J767-J133 GY-18
J767-J133 GY-18
J767-J133 GY-18J767-J133 GY-18
J767-J133 GY-18
J767-J133 GY-18
J767-J133 GY-18
J767-J133 GY-18
J767-J133 GY-18
J767-J159 GY-18
J767-J159 GY-18
J767-J159 GY-18
J767-J159 GY-18
J767-J209 GY-18
J767-J209 GY-18
J767-J209 GY-18
J767-J209 GY-18
J767-J209 GY-18
J767-J373 GY-18
J767-J373 GY-18
J767-J373 GY-18
J767-J373 GY-18
J767-J373 GY-18
450-J119 YL-18
450-J119 YL-18
450-J119 YL-18
450-J119 YL-18
450-J124 YL-18
450-J124 YL-18
450-J124 YL-18
450-J124 YL-18
450-J123 YL-18
450-J123 YL-18
450-J123 YL-18
450-J123 YL-18
450-J123 YL-18
450-J123 YL-18
451-J120 BR-18
451-J120 BR-18
451-J120 BR-18
451-J120 BR-18
451-J120 BR-18
451-J120 BR-18
451-J121 BR-18
451-J121 BR-18
451-J121 BR-18
451-J121 BR-18
451-J122 BR-18
451-J122 BR-18
451-J122 BR-18
451-J122 BR-18
J814-J217 BK-18
J814-J217 BK-18
J814-J217 BK-18
J814-J217 BK-18
J814-J219 BK-18
J814-J219 BK-18
J814-J219 BK-18
J814-J219 BK-18
J814-J219 BK-18
J814-J219 BK-18
J814-J218 BK-18
J814-J218 BK-18
J814-J218 BK-18
J814-J218 BK-18
J814-J218 BK-18
J811-J227 BK-18
J811-J227 BK-18
J811-J227 BK-18
J811-J227 BK-18
J811-J225 BK-14
J811-J225 BK-14
J811-J225 BK-14
J811-J225 BK-14
J811-J225 BK-14
J811-J225 BK-14
J811-J226 BK-18
J811-J226 BK-18
J811-J226 BK-18
J811-J226 BK-18
J811-J226 BK-18
J811-J226 BK-18
J811-J226 BK-18
J811-J226 BK-18
TWISTED
WIRES
J765-J210 BU-16
C989-J50 PU-18
481-J112 GN-18
A493-J111 YL-18
E908-J320 BR-18
E909-J321 WH-18
A491-J110 WH-18
799-J389 WH-16
J881-J96 YL-18
J882-J95 BR-18
J883-J421 BU-18
892-J98 BR-18
892-J98 BR-18
892-J98 BR-18
892-J98 BR-18
892-J98 BR-18
893-J165 GN-18
893-J165 GN-18
893-J165 GN-18
893-J165 GN-18
893-J165 GN-18
893-J182 GN-18
893-J182 GN-18
893-J182 GN-18
893-J182 GN-18
893-J182 GN-18
893-J182 GN-18
893-J182 GN-18
892-J178 BR-18
892-J178 BR-18
892-J178 BR-18
892-J178 BR-18
892-J178 BR-18
892-J178 BR-18
892-J178 BR-18
892-J3 BR-18
892-J3 BR-18
892-J3 BR-18
892-J3 BR-18
892-J3 BR-18
892-J3 BR-18
892-J3 BR-18
893-J2 GN-18
893-J2 GN-18
893-J2 GN-18
893-J2 GN-18
893-J2 GN-18
893-J2 GN-18
893-J2 GN-18
893-J345 GN-18
893-J345 GN-18
893-J345 GN-18
893-J345 GN-18
893-J345 GN-18
893-J345 GN-18
893-J345 GN-18
892-J370 BR-18
892-J370 BR-18
892-J370 BR-18
892-J370 BR-18
892-J370 BR-18
892-J370 BR-18
892-J370 BR-18
892-J181 BR-18
892-J181 BR-18
892-J181 BR-18
892-J181 BR-18
892-J181 BR-18
892-J181 BR-18
892-J181 BR-18
893-J185 GN-18
893-J185 GN-18
893-J185 GN-18
893-J185 GN-18
893-J185 GN-18
893-J185 GN-18
893-J185 GN-18
893-J184 GN-18
893-J184 GN-18
893-J184 GN-18
893-J184 GN-18
893-J184 GN-18
893-J184 GN-18
893-J184 GN-18
893-J184 GN-18
892-J180 BR-18
892-J180 BR-18
892-J180 BR-18
892-J180 BR-18
892-J180 BR-18
892-J180 BR-18
892-J180 BR-18
892-J180 BR-18
892-J280 BR-18
892-J280 BR-18
892-J280 BR-18
892-J280 BR-18
892-J280 BR-18
892-J280 BR-18
893-J291 GN-18
893-J291 GN-18
893-J291 GN-18
893-J291 GN-18
893-J291 GN-18
893-J291 GN-18
893-J212 GN-18
893-J212 GN-18
893-J212 GN-18
893-J212 GN-18
893-J212 GN-18
893-J212 GN-18
893-J212 GN-18
892-J246 BR-18
892-J246 BR-18
892-J246 BR-18
892-J246 BR-18
892-J246 BR-18
892-J246 BR-18
892-J246 BR-18
893-J183 GN-18
893-J183 GN-18
893-J183 GN-18
893-J183 GN-18
893-J183 GN-18
893-J183 GN-18
893-J183 GN-18
892-J179 BR-18
892-J179 BR-18
892-J179 BR-18
892-J179 BR-18
892-J179 BR-18
892-J179 BR-18
892-J179 BR-18
521-J402 YL-16
521-J402 YL-16
521-J402 YL-16
521-J402 YL-16
521-J402 YL-16
521-J402 YL-16
521-J402 YL-16
521-J292 YL-16
521-J292 YL-16
521-J292 YL-16
521-J292 YL-16
521-J292 YL-16
521-J292 YL-16
521-J292 YL-16
521-J292 YL-16
521-J403 YL-14
521-J403 YL-14
521-J403 YL-14
521-J403 YL-14
521-J403 YL-14
521-J403 YL-14
521-J403 YL-14
605-J153 YL-14
605-J153 YL-14
605-J153 YL-14
605-J153 YL-14
605-J153 YL-14
605-J153 YL-14
605-J153 YL-14
606-J152 GY-14
606-J152 GY-14
606-J152 GY-14
606-J152 GY-14
606-J152 GY-14
606-J152 GY-14
606-J152 GY-14
606-J148 GY-14
606-J148 GY-14
606-J148 GY-14
606-J148 GY-14
606-J148 GY-14
606-J148 GY-14
606-J148 GY-14
606-J148 GY-14
605-J145 YL-14
605-J145 YL-14
605-J145 YL-14
605-J145 YL-14
605-J145 YL-14
605-J145 YL-14
605-J145 YL-14
605-J145 YL-14
521-J403 YL-14
521-J292 YL-16
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
605-J146 YL-14
606-J149 GY-14606-J149 GY-14
606-J149 GY-14
606-J149 GY-14
606-J149 GY-14
606-J149 GY-14
606-J149 GY-14
606-J149 GY-14
606-J149 GY-14
150-J268 RD-14
150-J268 RD-14
150-J268 RD-14
150-J268 RD-14
150-J268 RD-14
150-J268 RD-14
150-J268 RD-14
150-J267 RD-14
150-J267 RD-14
150-J267 RD-14
150-J267 RD-14
150-J267 RD-14
150-J267 RD-14
150-J267 RD-14
151-J271 GN-14
151-J271 GN-14
151-J271 GN-14
151-J271 GN-14
151-J271 GN-14
151-J271 GN-14
151-J271 GN-14
151-J270 GN-14
151-J270 GN-14
151-J270 GN-14
151-J270 GN-14
151-J270 GN-14
151-J270 GN-14
151-J270 GN-14
151-J272 GN-14
151-J272 GN-14
151-J272 GN-14
151-J272 GN-14
151-J272 GN-14
151-J272 GN-14
151-J272 GN-14
151-J272 GN-14
150-J269 RD-14150-J269 RD-14
150-J269 RD-14
150-J269 RD-14
150-J269 RD-14
150-J269 RD-14
150-J269 RD-14
150-J269 RD-14
A274-J434 BK-14
A274-J434 BK-14
A274-J434 BK-14
A274-J434 BK-14
A274-J434 BK-14
A274-J430 BK-14
A274-J430 BK-14
A274-J430 BK-14
A274-J430 BK-14
A274-J430 BK-14
A274-J427 BK-14
A274-J427 BK-14
A274-J427 BK-14
A274-J427 BK-14
A274-J427 BK-14
A274-J417 BK-14 A274-J417 BK-14
A274-J417 BK-14
A274-J417 BK-14
A274-J417 BK-14
A274-J233 BK-14
A274-J233 BK-14
A274-J233 BK-14
A274-J233 BK-14
A274-J233 BK-14
A274-J438 BK-14
A274-J438 BK-14
A274-J438 BK-14
A274-J439 BK-14
A274-J439 BK-14
A274-J439 BK-14
H867-J422 YL-16
H867-J422 YL-16
H867-J422 YL-16
H867-J422 YL-16
H867-J422 YL-16
H867-J443 YL-16 H867-J443 YL-16
H867-J443 YL-16
H867-J443 YL-16
H867-J444 YL-16
H867-J444 YL-16
H867-J444 YL-16
H867-J444 YL-16
J766-J360 PU-18
J766-J360 PU-18
J766-J360 PU-18
J766-J360 PU-18
J766-J154 PU-18
J766-J154 PU-18
J766-J154 PU-18
J766-J154 PU-18
J766-J154 PU-18
J766-J211 PU-18
J766-J211 PU-18
J766-J211 PU-18
J766-J211 PU-18
J766-J211 PU-18
121-J282 YL-14
121-J282 YL-14
121-J282 YL-14
121-J282 YL-14
J811-J225 BK-14
121-J281 YL-14
121-J281 YL-14
121-J281 YL-14
121-J281 YL-14
121-J281 YL-14
121-J281 YL-14
121-J273 YL-14
121-J273 YL-14
121-J273 YL-14
121-J273 YL-14
121-J273 YL-14
612-J315 GY-14
612-J315 GY-14
612-J315 GY-14
612-J315 GY-14
612-J287 GY-14
612-J287 GY-14
612-J287 GY-14
612-J287 GY-14
612-J287 GY-14
612-J316 GY-14
612-J316 GY-14
612-J316 GY-14
612-J316 GY-14
113-J150 OR-18
113-J150 OR-18
113-J150 OR-18
113-J150 OR-18
113-J92 OR-18
113-J92 OR-18
113-J92 OR-18
113-J92 OR-18
113-J92 OR-18
113-J327 OR-18
113-J327 OR-18
113-J327 OR-18
113-J327 OR-18
113-J327 OR-18
113-J14 OR-18
113-J14 OR-18
113-J14 OR-18
113-J14 OR-18
113-J14 OR-18
113-J164 OR-18
113-J164 OR-18
113-J164 OR-18
113-J265 OR-18
113-J265 OR-18
113-J265 OR-18
113-J265 OR-18
113-J265 OR-18
113-J265 OR-18
113-J266 OR-18
113-J266 OR-18
113-J333 OR-16
113-J333 OR-16
113-J333 OR-16
113-J333 OR-16
113-J333 OR-16
113-J333 OR-16
113-J127 OR-16
113-J127 OR-16
113-J127 OR-16
113-J127 OR-16
113-J374 OR-16
113-J374 OR-16
113-J374 OR-16
113-J374 OR-16
113-J249 OR-16
113-J249 OR-16
113-J249 OR-16
113-J249 OR-16
113-J334 OR-16
113-J334 OR-16
113-J334 OR-16
113-J334 OR-16
113-J387 OR-16
113-J387 OR-16
113-J387 OR-16
113-J387 OR-16 113-J15 OR-16
113-J15 OR-16
113-J15 OR-16
113-J15 OR-16
113-J36 OR-16
113-J36 OR-16
113-J36 OR-16
113-J36 OR-16
113-J36 OR-16
102-J278 RD-14
102-J278 RD-14
102-J278 RD-14
102-J278 RD-14
102-J278 RD-14
102-J283 RD-14
102-J283 RD-14
102-J283 RD-14
102-J283 RD-14
102-J283 RD-14
102-J283 RD-14
102-J284 RD-14
102-J284 RD-14
102-J284 RD-14
102-J284 RD-14
115-J279 RD-14
115-J279 RD-14
115-J279 RD-14
115-J279 RD-14
115-J279 RD-14
115-J285 RD-14
115-J285 RD-14
115-J285 RD-14
115-J285 RD-14
115-J285 RD-14
115-J285 RD-14
115-J286 RD-14
115-J286 RD-14
115-J286 RD-14
115-J286 RD-14
X998-J114 BR-16
X998-J114 BR-16
X998-J114 BR-16
X998-J114 BR-16
X998-J404 BR-18
X998-J404 BR-18
X998-J404 BR-18
X998-J176 BR-16
X998-J176 BR-16
X998-J176 BR-16
X998-J176 BR-16
J841-J73 YL-18
J841-J73 YL-18
J841-J73 YL-18
J841-J73 YL-18
J841-J7 YL-18
J841-J7 YL-18
J841-J7 YL-18
J841-J7 YL-18
J841-J70 YL-18
J841-J70 YL-18
J841-J70 YL-18
J841-J70 YL-18
J840-J72 WH-18
J840-J72 WH-18
J840-J72 WH-18
J840-J72 WH-18
J840-J8 WH-18
J840-J8 WH-18
J840-J8 WH-18
J840-J8 WH-18
J840-J71 WH-18
J840-J71 WH-18
J840-J71 WH-18
J840-J71 WH-18
635-J75 BU-18
635-J75 BU-18
635-J75 BU-18
635-J75 BU-18
635-J25 BU-18
635-J25 BU-18
635-J25 BU-18
635-J25 BU-18
635-J68 BU-18
635-J68 BU-18
635-J68 BU-18
635-J68 BU-18
636-J74 GN-18
636-J74 GN-18
636-J74 GN-18
636-J74 GN-18
636-J21 GN-18
636-J21 GN-18
636-J21 GN-18
636-J21 GN-18
636-J69 GN-18
636-J69 GN-18
636-J69 GN-18
636-J69 GN-18
101-FC1 RD-2
K983-J250 BU-18
K983-J250 BU-18
K983-J250 BU-18
K983-J250 BU-18
K983-J245 BU-18
K983-J245 BU-18
K983-J245 BU-18
K983-J245 BU-18
K983-J251 BU-18
K983-J251 BU-18
K983-J251 BU-18
K983-J251 BU-18
FC 167-3994 01 POWER STUD TO POWER STUD 2K-13
H807-AM13 YL-16
H807-AM14 YL-16
J884-AM15 PU-16
J884-AM15 PU-16
H807-AM14 YL-16
XMSN SHIFT
TRIGGER OUTPUT
(FOR COMMISSIONING ONLY)
TWISTED
WIRES
TWISTED WIRES
TWISTED WIRES
TWISTED WIRES
E456-CG7 WH-16
A234-CG23 BK-18
F712-CG22 GY-18
J842-CG2 BK-18
F711-CG21 GN-18
E972-CG25 BU-16
A451-CG10 WH-18
C453-CG11 YL-18
K983-CG12 BU-18
F419-CG9 YL-16
F418-CG8 GN-16
113-CG20 OR-16
892-CG19 BR-18
893-CG18 GN-18
A251-CG17 BK-16
170-CG16 RD-16
170-CG1 RD-14
170-CG1 RD-14
A251-CG3 BK-16
A251-CG3 BK-16
417-CG4 GY-18
F447-CG5 PU-18
M967-CG6 OR-16
892-CG13 BR-18
893-CG14 GN-18
801-CG15 PK-16
859-CG24 YL-18
858-CG26 GY-18
447-CG27 PK-18
170-CG29 RD-14
A251-CG30 BK-16
M966-CG31 GY-16
393-CG32 BR-16
626-CG33 BU-16
861-CG34 PU-18
860-CG35 PK-18
860-CG35 PK-18
861-CG34 PU-18
626-CG33 BU-16
393-CG32 BR-16
M966-CG31 GY-16
A251-CG30 BK-16
170-CG29 RD-14
G439-CG28 YL-16
G439-CG28 YL-16
447-CG27 PK-18
858-CG26 GY-18
859-CG24 YL-18
801-CG15 PK-16
893-CG14 GN-18
892-CG13 BR-18
M967-CG6 OR-16
F447-CG5 PU-18
417-CG4 GY-18
J846-CG37 BR-16
J846-CG37 BR-16
M914-CG38 WH-18
M914-CG38 WH-18
J847-CG40 GN-16
J847-CG40 GN-16
J840-CG42 WH-18
J840-CG42 WH-18
113-CG43 OR-16
113-CG43 OR-16
403-CG44 GN-18
403-CG44 GN-18J841-CG46 YL-18
J841-CG46 YL-18
J849-CG47 WH-16
J849-CG47 WH-16
J848-CG50 BU-16
J848-CG50 BU-16
E710-CG53 BU-16
E710-CG53 BU-16
E710-CG53 BU-16
E710-CG53 BU-16
614-CG61 PU-14
614-CG61 PU-14
614-CG61 PU-14
E972-CG60 BU-16
E972-CG60 BU-16
E972-CG60 BU-16
E707-CG59 GN-16
E707-CG59 GN-16
E707-CG59 GN-16
876-CG58 OR-16
876-CG58 OR-16
876-CG58 OR-16
875-CG57 BU-16
875-CG57 BU-16
875-CG57 BU-16
E708-CG56 PK-16
E708-CG56 PK-16
E708-CG56 PK-16
C414-CG55 BU-16
C414-CG55 BU-16
C414-CG55 BU-16
C413-CG54 YL-16
C413-CG54 YL-16
C413-CG54 YL-16
E710-CG52 BU-16 E710-CG52 BU-16
R982-CG51 YL-16
R982-CG51 YL-16
E709-CG49 WH-16
E709-CG49 WH-16
E709-CG49 WH-16
C415-CG48 WH-16
C415-CG48 WH-16
C415-CG48 WH-16
635-CG45 BU-18
635-CG45 BU-18
635-CG45 BU-18
636-CG41 GN-18
636-CG41 GN-18
636-CG41 GN-18
410-CG39 WH-16
410-CG39 WH-16
410-CG39 WH-16
411-CG36 PK-16
411-CG36 PK-16
411-CG36 PK-16
TWISTED
WIRES
TWISTED WIRES
TWISTED
WIRES
TWISTED
WIRES
TWISTED WIRES
X971-K60 OR-16
124-K8 GN-14
124-K80 GN-14
124-K80 GN-14
124-K80 GN-14
H807-AM17 YL-16
H807-AM17 YL-16
H453-AM16 GY-16
H453-AM16 GY-16
CUSTOMER
MACHINE
LOCKOUT LAMP
K878-J437 WH-16
K878-J437 WH-16
K878-J437 WH-16
K878-J437 WH-16
K878-J437 WH-16
J808-J394 BK-16
J808-J394 BK-16
J808-J394 BK-16
J808-J394 BK-16
J808-J394 BK-16
612-A20 GY-16
124-J290 GN-14
124-J290 GN-14
20A
START AID BREAKER 1
6T3644
20A
START AID BREAKER 2
6T3644
10A
KEY BREAKER
6T3642
15A
STOP TURN DOME BREAKER
6T3643
15A
HEADLAMP BREAKER
3T2662
15A
FLOODLAMP BREAKER
3T2662
15A
ACC LAMP BREAKER
3T3643
15A
AC BREAKER
3T3643
15A
BACKUP ALARM BREAKER
3T3643
20A
CONVERTER BREAKER
6T3644
20A
BRAKE RETRACT BREAKER
6T3644
15A
24V ACCESSORIES BREAKER
6T3643
10A
AIR DRYER BREAKER
6T3642
80A
ALTERNATOR BREAKER 1
9S4693
15A
ADEM MASTER BREAKER
6T3643
20A
CHASSIS CONTROL BREAKER
6T3644
15A
ADEM REAR BREAKER
6T3643
15A
ADEM FRONT BREAKER
6T3643
10A
POWER WINDOW BREAKER
6T3642
10A
WIPER BREAKER
6T3642
20A
IBC CONTROL BREAKER
6T3644
15A
12V ACC LIGHTER BREAKER
6T3643
15A
VIMS BREAKER
6T3643
MAIN RELAY
3T0376
START AID RESISTOR 1
1246704
START AID RESISTOR 2
1246704
START AID RESISTOR 3
1246704
START AID RESISTOR 4
1246704
START AID HOLD RELAY 2
3E5239
87a
87
85
86
30
+V DISPLAY
GROUND
CLOCK
DATA
LOAD
HARNESS CODE
SPEEDO TACH CLUSTER
6V6457
OR-18
BK-18
GN-18
WH-18
YL-18
BU-18
+V DISPLAY
GROUND
CLOCK
DATA
LOAD
HARNESS CODE
FOUR GAUGE CLUSTER
1595022
OR-18
BK-18
GN-18
WH-18
YL-18
BU-18
+V DISPLAY
GROUND
CLOCK
DATA
LOAD
HARNESS CODE
VIMS MESSAGE CENTER CLUSTER
1492357
OR-18
BK-18
GN-18
WH-18
YL-18
BU-18
PU-18
BR-18
+V DISPLAY
GROUND
DATA
BACKLIGHT
VIMS KEYPAD MODULE
1493254
OR-18
BK-18
WH-18
NC
1
2
C-C1
3E5176
3
4
5
6
7
8
9
10
11
12
1
2
C-C2
3E3379
3
4
5
6
1
2
C-C3
3E3379
3
4
5
6
1
2
C-C4
3E3379
3
4
5
6
1
2
C-C5
3E3373
3
4
c
C-C6
3T3158
c
C-C7
3T3158
c
C-C8
3T3158
c
C-C9
3T3158
c
C-C10
3T3158
c
C-C12
3T3158
START AID PULL IN RELAY 2
3E5239
87a
87
85
86
30
START AID HOLD RELAY 1
3E5239
87a
87
85
86
30
START AID PULL IN RELAY 1
3E5239
87a
87
85
86
30
PRELUBE RELAY
3E5239
87a
87
85
86
30
STOPLAMP RELAY
3E5239
87a
87
85
86
30
HEADLAMP RELAY
3E5239
87a
87
85
86
30
FOGLAMP RELAY
3E5239
87a
87
85
86
30
BACKUP ALARM LIGHT RELAY
3E5239
87a
87
85
86
30
STEERING BRAKE BLEED RELAY
3E5239
87a
87
85
86
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A-C1
CONN 29
3E6286
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
A-C2
9X1054
1
5
2
4
3
A-C3
9X1054
1
5
2
4
3
A-C4
9X1054
1
5
2
4
3
A-C5
9X1054
1
5
2
4
3
A-C6
9X1054
1
5
2
4
3
A-C9
9X1054
1
5
2
4
3
A-C10
9X1054
1
5
2
4
3
A-C11
9X1054
1
5
2
4
3
A-C12
9X1054
1
5
2
4
3
A-C13
9X1054
1
5
2
4
3
1
2
A-C15
1552269
1
2
A-C16
1552269
1
2
A-C17
1552269
1
2
A-C18
1552269
WIPER MOTOR RELAY
3E5239
87a
87
85
86
30
1
2
3
4
5
6
7
8
9
10
11
12
E-C1
9X0146
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
E-C2
CONN 22
CONN 23
CONN 27
8N1520
LADDER FLOOD LAMP 1
3T4411
RH DOOR SW
9D4068
BLOWER BACKLIGHT 1
1636508
BLOWER BACKLIGHT 2
1636508
1
2
K-C24
1071984
1
2
K-C25
1071984
F-C5
3E3364
1
2
F-C7
7N9738
1
2
UNUSED
FINAL DRIVE LUBE PRESS
RETARDER LEVER
REAR BK COOL FLTR BYPASS
UNUSED
CAN(HIGH)
CDL-
CDL+
INSTRUMENT RETRUN
UNUSED
+8V SUPPLY
SENSOR RETURN
+12V INSTRUMENT
LR WHEEL SPEED
RH REAR PARK BK PRESS
FRONT BK COOL FLTR BYPASS
UNUSED
CAN(LOW)
CAN(SHIELD)
ECM LOCATION CODE 0
ECM LOCATION CODE 1
ECM LOCATION CODE 2
ECM LOCATION CODE 3
UNUSED
UNUSED
UNUSED
UNUSED
DIFF LUBE PRESS LO
BRAKE OIL PRESS
PARK BRAKE (N/O) WHEN OFF
PARK BRAKE (N/C) WHEN OFF
RAD FAN SPEED +
RAD FAN SPEED -
UNUSED
UNUSED
BRAKE FILTER
FOOT BRAKE PRESS
BRAKE SYS ON
FINAL DRIVE FLTR BYPASS SW
UNUSED
UNUSED
LF BRAKE TEMP
RF BRAKE TEMP
UNUSED
ARC (N/O)
ARC (N/C)
TCS TEST
ARC PRESS
KEY SWITCH
REAR DIFF TEMP
UNUSED
LR BRAKE TEMP
RR BRAKE TEMP
ENGINE SPEED +
ENGINE SPEED -
BRAKE COOL SHAFT SPD -
BRAKE COOL SHAFT SPD +
UNUSED
UNUSED
RR WHEEL SPEED
LH REAR PARK BK PRESS
UNUSED
FAN DR FLTR BYPASS SW
DIFF OIL LEVEL
DIFF FILTER BYPASS SW
UNUSED
PARK BRAKE LOCKOUT
UNUSED
UNUSED
+ BATTERY
- BATTERY
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
PROP RET 17-20
PROP RET 13-16
RAX PUMP DR OIL DIV SOL
UNUSED
UNUSED
UNUSED
PROP RET 21-25
UNUSED
UNUSED
UNUSED
- BATTERY
+ BATTERY
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
ON/OFF RET 1-4
UNUSED
UNUSED
+24V
FINAL DRIVE OIL BYPASS SOL
BRAKE OIL DIVERT
UNUSED
UNUSED
ARC LAMP
TCS LAMP
- BATTERY
+ BATTERY
UNUSED
PROP RET
PARK BRAKE SOLENOID
ARC SUPPLY SOLENOID
PROP RET
UNUSED
UNUSED
REAR DIFF FAN SOL
- BATTERY
+ BATTERY
UNUSED
PROP RETURN
RADIATOR PUMP
BRAKE COOL PUMP
ARC CONTROL SOLENOID
SERVO BRAKE SOLENOID
RIGHT BRAKE SOLENOID
LEFT BRAKE SOLENOID
UNUSED
UNUSED
BRAKE LIGHT RELAY
- BATTERY
+ BATTERY
UNUSED
IBC CONTROL
1499995
UNUSED
LOCATION CODE 13
+ BATTERY
- BATTERY
LO STEER PRESSURE
HI STEER PRESSURE
JACKET COOLANT LEVEL
- DATALINK
+ DATALINK
UNUSED
AUTOLUBE SOLENOID
LF STRUT PRESSURE
RF STRUT PRESSURE
FUEL LEVEL
STEER TANK LEVEL
+ BATTERY
- BATTERY
AFTERCOOLER COOLANT LVL
DIMMER SW DN
DIMMER SW UP
UNUSED
LR STRUT PRESSURE
RR STRUT PRESSURE
UNUSED
UNUSED
RD PAYLOAD MONITOR LAMP
RD PAYLOAD MONITOR LAMP RET
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
ACTION LAMP
ACTION LAMP RETURN
UNUSED
UNUSED
UNUSED
UNUSED
KEY SWITCH
R-TERM
ACTION ALARM
ACTION ALARM RETURN
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
PWM RETURN
KEYPAD
BLUE SERVICE LAMP
BLUE SERVICE LAMP RETURN
UNUSED
VIMS LOCATION CODE 0
VIMS LOCATION CODE 1
PANEL LAMPS RETURN
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
GN PAYLOAD MONITOR LAMP
GN PAYLOAD MONITOR LAMP RET
UNUSED
UNUSED
SYSTEM AIR PRESS
UNUSED
UNUSED
UNUSED
UNUSED
LED LAMP DRIVER
UNUSED
UNUSED
VIMS LOCATION CODE 2
VIMS LOCATION CODE 3
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
SPI DATA
CAN(HIGH)
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
DIGITAL RETURN
SPI LOAD
CAN(LOW)
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
SPI CLOCK
CAN(SHEILD)
UNUSED
UNUSED
RS232 TXD 1
RS232 RXD 1
UNUSED
UNUSED
AUTOLUBE PRESS
UNUSED
UNUSED
UNUSED
RS232 TXD 2
RS232 RXD 2
UNUSED
UNUSED
UNUSED
STEER OIL TEMP
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
5V ANALOG RETURN
AMBIENT AIR TEMP
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
+5V ANALOG
+8V DIGITAL
+12V INSTRUMENT
INSTRUMENT RETURN
UNUSED
BACKLIGHT SENSOR
UNUSED
UNUSED
UNUSED
1499996
LOCATION CODE 7
XMSN CONTROL STATE
UNUSED
UNUSED
CAB CONTROL STATE
UNUSED
CAN (LOW)
CDL -
CDL+
INSTRUMENT RETURN
UNUSED
+8V POWER SUPPLY
SENSOR RETURN
UNUSED
UNUSED
UNUSED
GEAR SELECT STATE
UNUSED
CAN(HIGH)
CAN(SHIELD)
ECM LOCATION CODE 0
ECM LOCATION CODE 1
ECM LOCATION CODE 2
ECM LOCATION CODE 3
XMSN INPUT SPEED +
XMSN INPUT SPEED -
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
ENGINE SPEED SNSR +
ENGINE SPEED SNSR -
UNUSED
UNUSED
UNUSED
UNUSED
TC INLET FLTR BYPASS SW
UNUSED
UNUSED
UNUSED
UNUSED
T/C OIL TEMP
XMSN OIL TEMP
XMSN OUTPUT SPEED +2
XMSN CHARGE FLTR BYPASS
TC SCREEN BYPASS SW
XMSN OIL LVL SW
UNUSED
KEY SWITCH
UNUSED
UNUSED
XMSN LATCHING SNSR B
XMSN LATCHING SNSR A
XMSN OUTPUT SPEED +1
XMSN OUTPUT SPEED -2
XMSN INTERMEDIATE SPD -1
XMSN INTERMEDIATE SPD +1
UNUSED
UNUSED
XMSN LUBE OIL PRESS
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
MACHINE LOCKOUT
XMSN OUTPUT SPEED +1
UNUSED
+ BATTERY
- BATTERY
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
PROP RET 17-20
PROP RET 13-16
UNUSED
UNUSED
UNUSED
UNUSED
PROP RET 21-25
UNUSED
UNUSED
UNUSED
- BATTERY
+ BATTERY
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
XMSN SHIFT TRIGGER OUTPUT
UNUSED
UNUSED
ON/OFF RET 1 -4
UNUSED
UNUSED
UNUSED
UNUSED
XMSN 2 STAGE SOL
UNUSED
UNUSED
XMSN LATCH VALVE
UNUSED
- BATTERY
+ BATTERY
UNUSED
PROP RET 5,6,7,9
XMSN CLUTCH 7
XMSN CLUTCH 5
PROP RET 1-4
UNUSED
UNUSED
CUSTOMER MACH LOCKOUT LAMP
- BATTERY
+ BATTERY
UNUSED
PROP RET 8 &10
TC LOCKUP SOLENOID
XMSN CLUTCH 6
XMSN CLUTCH 3
XMSN CLUTCH 4
XMSN CLUTCH 1
XMSN CLUTCH 2
UNUSED
UNUSED
UNUSED
- BATTERY
+ BATTERY
UNUSED
XMSN CONTROL
1588618
LOCATION CODE 12
+24 V BATTERY IN
+24 V SWITCHED IN
GROUND
+12 V MEMORY OUT
+12 V SWITCHED OUT
GROUND
5A 24V TO 12V CONVERTER
1191733
15A 24V TO 12V CONVERTER
3E8646
+12V OUT
IGNITION
+24V IN
GROUND
HI BEAM
INTER WIPE
WIPER HIGH
HEADLAMP/TAIL
LOW BEAM
WIPER LOW
WIPE WASH TURN SW
1416579
WIPER PARK
WASH
WIPER B+
LEFT TURN
TURN SW
RIGHT TURN
BR-18
OR-18
WH-18
GY-18
YL-18
GN-18
RD-18
BU-18
RD/WH-18
PK-18
PU-18
BK-18
6
5
2
4
3
B
BLOWER SW
1570217
AC ON SW
1701304
3
2
TCS TEST SW
1701301
3
2
BRAKE RETRACT SW
1701308
3
2
THROTTLE BACKUP SW
1701302
3
2
START AID SW
1701303
3
2
AUTO RETARDER SW
1701299
3
2
1
6
5
4
LH TURN IND LAMP
1631879
BODY UP IND LAMP
1631878
HI BEAM IND LAMP
1631880
REVERSE IND LAMP
1631878
RETARDER ON IND LAMP
1631878
VIMS ACTION IND LAMP
1631876
TCS IND LAMP
1631878
RH TURN IND LAMP
1631879
CIGAR LIGHTER
1450847
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
K-C1
1130580
A
B
1
2
3
4
5
6
C
D
K-C2
3E7996
A
B
1
2
3
4
5
6
C
D
K-C3
3E7996
A
B
1
2
3
4
5
6
C
D
K-C4
3E7996
A
B
1
2
3
4
5
6
C
D
K-C5
3E7996
A
B
1
2
3
4
5
6
C
D
K-C6
3E7996
A
B
1
2
3
4
5
6
C
D
K-C7
3E7996
c
K-C8
1071984
c
K-C9
1071984
c
K-C10
1071984
c
K-C11
1071984
c
K-C12
1071984
c
K-C13
1071984
c
K-C14
1071984
c
K-C15
1071984
1
K-C17
1275485
1
K-C18
1275486
BR
OR
PU
YL
ST
ON
OFF
B
S
C
R
KEY START SW
1107887
1
2
K-C19
1552272
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
CF-C4
1471446
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
AM-C6
1607690
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
J-C3
1471446
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
J-C4
1607690
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
J-C5
1607689
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
J-C6
1471445
1
2
J-C7
3E5179
3
CONN 43
CONN 44
CONN 45
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
J-C10
3E6286
25
26
27
28
29
30
31
32
33
34
35
CONN 35
36
37
38
39
40
1
J-C11
1275486
1
J-C12
1275485
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
J-C14
7X6222
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
J-C15
1130580
1
2
3
4
5
6
7
8
9
10
11
12
J-C13
8N1519
MOTOR
BLOWER MOTOR
3E6392
WH/RD-14
BK-14
BLOWER MOTOR RESISTOR
1259740
T
THERMOSTAT SW
3E5464
2
5
1
3
4
6
LH POWER WINDOW SW
1701313
MOTOR
(DOWN)
LH WINDOW MOTOR AS
1457768
HARNESS AS.
1530198
MOTOR
(UP)
200-BK-16
A590-BU-16
A589-OR-16
A
B
1
2
3
4
5
6
C
D
AJ-C4
3E7996
1
2
L-C1
3E3361
2
5
1
3
4
6
RH POWER WINDOW SW
1701313
MOTOR
(DOWN)
RH WINDOW MOTOR AS
1457768
HARNESS AS.
1530198
MOTOR
(UP)
200-BK-16
A589-OR-16
A590-BU-16
A
B
1
2
3
4
5
6
C
D
AJ-C5
3E7996
1
2
M-C1
3E3361
GND
B+
P
T
MOTOR
L
H
BR
GY
BK
OR
GN
FRONT WIPER
1606340
MOTOR
WASHER
1270833
PAYLOAD MONITOR LAMP GN
8T9684
RD-18
BK-18
PAYLOAD MONITOR LAMP RD
8T9683
RD-18
BK-18
LH DOOR SW
9D4068
6
4
3
1
A
B
5
2
HAZARD SW
1655957
A
B
3
1
2
REAR BACKUP LAMP SW
1701317
6
4
5
A
B
1
2
3
4
5
6
C
D
F-C10
3E7996
A
B
1
2
3
4
5
6
C
D
F-C11
3E7996
RD
BK
SIGNAL
GROUND
+24V
WH
HOIST LEVER POS SENSOR
1618937
LEVER 1
GROUND
GROUND VERIFY
XMSN CANE POS SENSOR
1267896
LEVER 2
LEVER 3
+V
UNUSED
LEVER 4
LEVER 5
NEUTRAL
FLASHER
1080358
RD
BK
SIGNAL
GROUND
+BATTERY
WH
THROTTLE POS SENSOR
176-1602
ARC CONTROL VALVE
1555989
BK
BK
ARC SUPPLY VALVE
1221134
GN-18
GN-18
ARC PRESS SW
1285091
BU-18
RD-18
BK-18
2
5
3
6
RUNNING LAMP SW
1701305
A
B
1
2
3
4
5
6
C
D
F-C12
3E7996
B
A
2
3
1
LADDER LAMP SW
1701312
A
B
1
2
3
4
5
6
C
D
F-C13
3E7996
2
5
3
6
FOG LAMP SW
1701311
A
B
1
2
3
4
5
6
C
D
F-C14
3E7996
BK-18
WH-18
RD-18
CAB DOME LAMP
3E6389
EW-C2
3E3367
A
C
B
1
2
H-C2
3E3360
HORN SW
2T3360
UNUSED
UNUSED
UNUSED
SIGNAL OUT
GROUND
+V
RETARDER SW
1533717
OUT
+V
IN
INT WIPER MODULE
1437884
A
B
C
D
E
N-C7
9D3374
A
B
C
D
E
F
G
H
J
N-C8
9W1951
POWER PORT
1172311
N-C4
7N9737
1
2
N-C5
7N9738
1
2
1
2
J-C27
1552252
3
4
5
6
7
8
9
10
11
12
1
2
N-C1
3E3379
3
4
5
6
1
2
J-C31
1552273
3
4
5
6
AJ-C8
1042921
A
B
C
1
2
J-C35
1552269
1
2
J-C36
1552269
J-C39
1698670
A
B
C
CAB CONTROL STATE
UNUSED
UNUSED
XMSN CONTROL STATE
ALTERNATOR 2 R-TERM
CAN(LOW)
CDL-
CDL+
INSTRUMENT RETURN
UNUSED
+8V POWER SUPPLY
SENSOR RETURN
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
CAN(HIGH)
CAN(SHIELD)
ECM LOCATION CODE 0
ECM LOCATION CODE 1
ECM LOCATION CODE 2
ECM LOCATION CODE 3
UNUSED
UNUSED
UNUSED
UNUSED
SHIFT LEVER 1
SHIFT LEVER 2
SHIFT LEVER 3
SHIFT LEVER 4
UNUSED
UNUSED
UNUSED
UNUSED
HOIST SCREEN BYPASS SW
UNUSED
UNUSED
UNUSED
UNUSED
HOIST PRESSURE SENSOR 2
HOIST PRESSURE SENSOR 1
HOIST LEVER SENSOR
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
KEY SWITCH
UNUSED
CANE LEVER SENSOR
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
BODY POSITION SENSOR
UNUSED
UNUSED
SHIFT LEVER 5
SHIFT LEVER GROUND VERIFY
UNUSED
UNUSED
UNUSED
UNUSED
+ BATTERY
- BATTERY
HOIST CT HEAD BODY UP SOL
HOIST PC HEAD BODY UP SOL
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
PROP RET 17-20
PROP RET 13-16
UNUSED
HOIST PILOT SOLENOID
HOIST CT ROD BODY DN SOL
HOIST PC ROD BODY DN SOL
PROP RET 21-25
UNUSED
UNUSED
UNUSED
- BATTERY
+ BATTERY
HOIST PUMP BYPASS 1
HOIST PUMP BYPASS 2
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
GEAR SELECT STATE
UNUSED
UNUSED
ON/OFF RET 1-4
UNUSED
KEY SWITCH OFF
KEY SWITCH START
BODY UP DASH LAMP
UNUSED
UNUSED
UNUSED
UNUSED
ACCUM BLEED RELAY
+ BATTERY
UNUSED
PROP RET 5-8
UNUSED
UNUSED
PROP RET 1-4
UNUSED
UNUSED
BACK ALARM/LIGHT
- BATTERY
+ BATTERY
UNUSED
PROP RET 9-12
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
START RELAY
- BATTERY
+ BATTERY
UNUSED
CHASSIS CONTROL
1499994
- BATTERY
LOCATION CODE 14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
J-C32
1471446
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
J-C34
1607690
1
2
3
4
5
6
7
8
9
10
11
12
J-C45
CONN 1 CONN 2 CONN 3 CONN 4 CONN 5 CONN 6 CONN 7 CONN 8
9X7148
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
11
12
J-C47
9X1343
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
11
12
J-C51
9X7148
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
J-C53
1552269
PARK BRAKE SOL
1528340
GN-18
GN-18
FOOT BRAKE PRESS SW
1285091
BU-18
RD-18
BK-18
BRAKE SYS PRESS SW
1285091
BU-18
RD-18
BK-18
CANE LEVER LAMP
1636508
1
2
3
4
5
6
7
8
9
10
11
12
AJ-C1
3E5179
1
2
c
AJ-C2
1071984
AJ-C3
9W3089
1
2
3
4
5
6
7
8
9
10
1
2
J-C57
1552252
3
4
5
6
7
8
9
10
11
12
1
2
M-C2
3E3364
1
CONN 31
2
J-C22
1552269
1
2
L-C2
3E3364
1
2
J-C21
1552269
CONN 30
1
2
C-C14
3E3388
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C-C13
3E3388
1
2
AJ-C6
3E3364
GROUND
LH SPEAKER (+)
+ BATTERY (12V)
RH SPEAKER (+)GY/PU
RD
YL
BK
GY/BK, PU/BK
WH/GN
WH/BK, BR/BK
+ BATTERY (MEM)
LH SPEAKER (-)
RH SPEAKER (-)
ANTENNA
RADIO
1736530 1736532
+ BATTERY (24V)BU
-
+
LH SPEAKER
6T7695
-
+
RH SPEAKER
6T7695
1
2
F-C15
3E3385
3
4
5
6
7
8
1
2
J-C58
1552264
3
4
5
6
7
8
A-C7
3E5519
1
5
2
4
3
3
12
PARK BRAKE ON OFF SW
4D1836
1
2
3
4
5
6
AJ-C7
3E3382
1
N-C3
1297163
1
J-C40
1297164
VIMS ACTION ALARM
3E6328
RD
BK
1
2
F-C3
3E3361
DIMMER SW
1701316
3
2
1
A
B
1
2
3
4
5
6
C
D
F-C16
3E7996
J-C37
1698670
A
B
C
J-C55
1698670
A
B
C
J-C204
1698670
A
B
C
1
2
CONN 32
CONN 33
CONN 34
J-C69
1552273
3
4
5
6
80A
ALTERNATOR BREAKER 2
9S4693
TERMINAL STUD
9G8451
1
E-C4
1275483
1
J-C1
1275484
1
2
3
4
AM-C4
3E3376
1
2
J-C62
1552272
CONN 10
CONN 11
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
N-C2
7X6222
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
CONN 17
CONN 46
18
19
20
21
22
23
24
J-C41
9X0146
J-C54
1552269
1
2
1
2
3
4
5
6
7
8
9
10
11
12
AM-C7
9X7143
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CF-C5
7X6222
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
J-C60
9X0146
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
CF-C3
3E5179
1
2
J-C61
1552252
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
J-C50
8N1517
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
J-C86
8N1526
20A
AC CONDENSER BREAKER
6T3644
VIMS MAIN MODULE
1499997
+24V BATTERY
GROUND
LCD-
+CDL
-CDL
UNUSED
UNUSED
+ BATTERY
BACKLIGHT SENSOR
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
RS232 TXD 1
RS232 RXD 1
RS232 RXD 2
RS232 TXD 2
ACTION LAMP
BU SERVICE LAMP
GN PAYLOAD LAMP
RD PAYLOAD LAMP
ACTION ALARM
9VDC DISPLAY
SPI CLOCK
SPI DATA
SPI LOAD
KEYPAD
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
UNUSED
INST RETURN
1
2
3
4
5
6
7
N-C6
9G3676
1
2
3
4
5
6
7
N-C9
CONN 18
CONN 19
CONN 20
CONN 21
9G3670
1
2
CF-C6
3E3364
1
2
ER-C1
CONN 9
3E3361
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
CG-C1
8N1514
1
2
3
4
5
6
7
8
9
10
11
12
CG-C2
1338753
CONN 13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
CG-C3
1471445
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
CG-C4
8N1513
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
J-C84
8N1514
1
2
C-C11
3E3361
STUD AS
3T8607
1
2
3
4
5
6
7
8
9
10
11
12
CF-C1
9X7148
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
A
B
1
2
3
4
5
6
C
D
K-C16
3E7996
STROBE LAMP SW
1701318
3
2
CONDENSER RELAY
3E5239
87a
87
85
86
30
MOTOR
COND MOTOR 1
1463506
WH/RD-14
BK-14
MOTOR
COND MOTOR 2
1463506
WH/RD-14
BK-14
1
2
3
4
5
EC-C1
9X1054
1
2
EC-C2
3E3361
1
2
CONN 26
CONN 25
CONN 24
EC-C3
3E3361
1
EC-C4
1297164
1
EC-C5
1297163
1
2
EC-C6
3E3364
1
J-C18
1297164
1
J-C23
1297163
1
2
J-C33
1552269
1
2
J-C2
CONN 78
3E3364
REAR CAB GROUND BOSS 1
8X4711
REAR CAB GROUND BOSS 2
8X4711
1
2
3
4
5
6
7
8
AJ-C9
3E3388
1
2
J-C38
1552264
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
F-C9
3E5179
1
2
J-C28
1552252
3
4
5
6
7
8
9
10
11
12
1
2
F-C1
3E5176
3
4
5
6
7
8
9
10
11
12
1
2
J-C8
3E5179
3
4
5
6
7
8
9
10
11
12
1
2
J-C9
1552252
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
CONN 40
CONN 41
CONN 42
F-C2
3E5179
1
2
J-C20
3E3388
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EW-C1
3E3385
15A
XMSN CONTROL BREAKER
6T3643
CF-C9
3E3370
A
B
C
J-C24
3E3370
A
B
C
J-C25
3E3370
A
B
C
J-C30
3E3370
A
B
C
1
2
3
4
5
6
7
8
9
10
11
12
J-C42
9X1343
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
AM-C2
3E5176
CONN 14
CONN 15
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
J-C59
3E5179
N-C10
3E3370
A
B
C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
JUNCTION BLOCK
J-C16
1153082
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
JUNCTION BLOCK
J-C17
1153082
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
JUNCTION BLOCK
J-C87
1153082
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
JUNCTION BLOCK
J-C88
1153082
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
JUNCTION BLOCK
J-C89
1153082
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
JUNCTION BLOCK
J-C90
1153082
PANEL LAMP 1
1636509
PANEL LAMP 2
163-6509
PANEL LAMP 3
163-6509
PANEL LAMP 4
163-6509
PANEL LAMP 5
163-6509
PANEL LAMP 6
163-6509
1
2
J-C26
1552273
3
4
5
6
TERMINAL STUD 2
9G8451
1
2
AM-C1
3E3364
1
2
3
4
5
6
7
8
9
10
11
12
CG-C5
1338753
CONN 12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
CG-C6
1607689
1
2
AM-C8
3E3361
1
2
3
4
5
6
H-C3
3E-3381
1
2
J-C29
155-2273
3
4
5
6
CONN 38
CONN 39
1
2
A-C19
155-2269
1
2
A-C20
3E-3364
OPERATOR STATIONOPERATOR STATION
VIMS
101-CK6
112-EM1
161718 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
161718 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
F
E
D
C
B
A
K
L
J
I
H
G
F
E
D
C
B
A
K
L
J
I
H
G
WIRES THAT HAVE BATTERY VOLTAGE
WHEN THE KEY SWITCH IS OFF.
WIRES THAT HAVE BATTERY VOLTAGE
WHEN THE KEY SWITCH IS ON.
STARTING CIRCUIT.
INTEGRATED BRAKING CONTROL
CIRCUIT.
VIMS CIRCUIT.
PANEL LAMP CIRCUIT.
TURN SIGNAL AND WASHER/WIPER
CIRCUIT.
HEATER AND AIR CONDITIONER CIRCUIT.
GROUND CIRCUIT.
CHASSIS CONTROL CIRCUIT.
REAR ENGINE CONTROL CIRCUIT.
FRONT ENGINE CONTROL CIRCUIT.
START AID CIRCUIT.
MASTER ENGINE CONTROL CIRCUIT.
TRANSMISSION CONTROL CIRCUIT.
ALL DASHED LINES ARE ATTACHMENTS.
Volume 2 - ENGINE and CHASSIS
RENR2570
December 1999
797 Truck
Electrical System
©
1999 Caterpillar
All Rights Reserved
Printed in U.S.A.
5YW1-UP
VIMS (MID NO's. 49, 57, 58, 59, 60, 65, 66, 67, and 68)
CID No. Component CID No. Component
0041 8 Volt Sensor Power Supply 0558 Autolube Relay
0075 Steering Oil Temperature Sensor 0559 Boom Float Relay
0091 Throttle Position Sensor 0562 Caterpillar Monitoring System
0096 Fuel Level Sensor 0569 Oil Injection Solenoid
0098 Engine Oil Level Sensor 0580 Power Shift Pressure Sensor
0100 Engine Oil Pressure Sensor 0581 Power Shift Solenoid
0101 Crankcase Air Pressure Sensor 0590 Engine Electronic Control Module
0102 Boost Pressure Sensor 0592 Lift Raise Solenoid #2
0110 Engine Coolant Temperature Sensor 0593 Lift Lower Solenoid #2
0127 Transmission Oil Pressure Sensor 0594 Tilt Rackback Solenoid #2
0168 Electrical System Voltage 0595 Tilt Dump Solenoid #2
0171 Ambient Air Temperature Sensor 0596 Implement Electronic Control Module
0177 Transmission Oil Temperature Sensor 0600 Hydraulic Oil Temperature Sensor
0190 Engine Speed Sensor 0621 Downshift Switch
0248 CAT Data Link 0623 Directional Switch
0253 Personality Module (Engine Control) 0626 Steering/Transmission Lock Switch
0245 Electronic Control Module (ECM) 0627 Parking Brake Pressure Switch
0261 Engine Timing Calibration 0628 Quickshift Switch
0262 5 Volt Sensor Power Supply 0641 Transmission Solenoid #1
0263 8V (or 12V) Sensor Pwr Supply 0642 Transmission Solenoid #2
0267 Engine Shutdown Switch (Remote) 0643 Transmission Solenoid #3
0268 Programmable Parameters (Eng Ctrl) 0644 Transmission Solenoid #4
0269 Sensor Power Supply 0645 Transmission Solenoid #5
0271 Action Alarm 0646 Transmission Solenoid #6
0272 Turbo Outlet High Press Sensor 0650 Harness Code
0273 Turbocharger Outlet Pressure Sensor 0654 Trailer Right Brake Oil Temp Sensor
0274 Atmospheric Pressure Sensor 0655 Trailer Left Brake Oil Temp Sensor
0275 Right Turbo Inlet Press Sensor 0656 Trailer Brake Oil Cooler Inlet Temp Sen
0276 Left Turbo Inlet Press Sensor 0657 Trailer Brake Oil Cooler Temp Sensor
0277 Timing Calibration Sensor 0658 Trailer Rt Suspension Cyl Press Sensor
0278 AESC Enable Lamp 0659 Trailer Lt Suspension Cyl Press Sensor
0279 Aftercooler Coolant Temp Sensor 0670 Torque Converter Pedal Pos Sensor
0280 Gear Box Temperature Sensor 0671 Transmission Output Speed Sensor
0291 Engine Coolant Cooling Fan Solenoid 0672 Torque Converter Output Spd Sensor
0292 Hydraulic Oil Cooling Fan Solenoid 0678 Torque Converter Impeller Clutch Sol
0295 Electronic Control Module (ECM) 0679 Torque Converter Lockup Clutch Sol
0296 Transmission ECM 0700 Transmission Gear Actuator Sensor
0298 Service Brake Pedal Switch 0701 Transmission Output Speed Sensor
0324 Action (Warning) Lamp 0702 Transmission Gear Selector Switch
0341 Hyd Ctrl Valve Warm Up Sol #4 0703 Trailer Door Position Sensor
0350 Lift Linkage Position Sensor 0704 Service Brake Pressure Switch
0351 Tilt Linkage Position Sensor 0705 Body Raise Switch
0352 Lift Lever (Cab) Sensor 0706 Body Up Sensor
0353 Tilt Lever (Cab) Sensor 0707 Transmission Upshift Solenoid
0354 Lift Raise Solenoid #1 0708 Transmission Downshift Solenoid
0355 Lift Lower Solenoid #1 0709 Trans Lockup Clutch Sol
0356 Tilt Dump Solenoid #1 0710 ARC Supply Valve
0357 Tilt Rackback Solenoid #1 0711 ARC Control Valve
0358 Pilot Pressure Solenoid (Supply) 0712 ARC Lamp
0359 Lift Raise Kickout Solenoid 0713 ARC ON/OFF Switch
0360 Lift Lower Kickout Solenoid 0714 ARC Pressure Switch
0361 Tilt Kickout Solenoid 0715 Retarder Pressure Switch
0363 Machine Ride Control Actuator 0800 VIMS Main Module
0364 Lift Cylinder Head Pressure Sensor 0801 VIMS Interface Module #1
0365 Kickout Set Switch 0802 VIMS Interface Module #2
0367 Ride Control Switch 0803 VIMS Interface Module #3
0370 Boom Float Solenoid 0804 VIMS Interface Module #4
0371 Horn Solenoid (Forward) 0805 VIMS Interface Module #5
0372 Bucket/Shovel Open Solenoid 0806 VIMS Interface Module #6
0373 Bucket/Shovel Close Solenoid 0807 VIMS Interface Module #7
0374 Swing Brake Solenoid 0808 VIMS Interface Module #8
0376 Travel Alarm (Solenoid/Switch) 0809 Speedometer/Tachometer #1
0377 Travel Brake Solenoid 0810 Speedometer/Tachometer #2
0378 Machine Autolube Solenoid 0811 Gauge (Quad) Cluster #1
0379 Machine Autolube Pressure Sensor 0812 Gauge (Quad) Cluster #2
0423 Front Brake Accumulator Press Sw 0813 Gauge (Quad) Cluster #3
0424 Rear Brake Accumulator Press Sw 0814 Gauge (Quad) Cluster #4
0425 Front Brake Oil Pressure Sensor 0815 Message Center #1
0426 Rear Brake Oil Pressure Sensor 0816 Message Center #2
0427 Front Axle Oil Temperature Sensor 0817 ECM Internal Backup Battery
0428 Rear Axle Oil Temperature Sensor 0819 Display Data Link
0429 Steering Pump Oil Pressure Sensor 0820 Keypad Data Link
0430 Steering Pilot Pressure Sensor 0821 Display Power Supply (9 Volt)
0431 Steering Oil Level Switch 0822 Display Lighting Power Supply
0432 Steering Filter By-Pass Switch 0823 VIMS Service Lamp
0433 Implement Filter Switch 0824 Truck Payload Lamp #1 (Green)
0434 Hyd Pilot Oil Press Sensor 0825 Truck Payload Lamp #2 (Red)
0436 Torque Converter Oil Pressure Sensor 0856 Torque Converter Oil Temp Sensor
0438 Hyd Ctrl Valve Warm Up Sol #1 0827 Left Exhaust Temp Sensor
0439 Hyd Ctrl Valve Warm Up Sol #2 0828 Right Exhaust Temp
0440 Hyd Ctrl Valve Warm Up Sol #3 0829 Rear Aftercooler Cool Temp Sensor
0444 Start Relay 0830 Front Brake Oil Temperature Sensor
0457 Brake Oil Temperature Sensor 0833 Rear Brake Oil Temperature Sensor
0458 Tilt Cylinder Rod Pressure Sensor 0835 Differential (Axle) Oil Temp Sensor
0459 Impeller Clutch System Switch 0838 Lt Front Suspension Cyl Press Sensor
0489 Implement Select Switch 0839 Rt Front Suspension Cyl Press Sensor
0490 Implement Lockout Switch 0840 Lt Rear Suspension Cyl Press Sensor
0499 Implement Variable Hyd Oil Pump Sol 0841 Rt Rear Suspension Cyl Press Sensor
0526 Turbocharger Wastegate Valve 0849 System Air Pressure Sensor
0533 Auto Retarder Control (ARC) 0851 Gear Box Pressure Sensor
0541 Differential (Axle) Oil Pressure Sensor 0852 Brake Oil Temp Sensor (Rt Front)
0542 Engine Oil Pressure/uh/Unfiltered Sensor 0853 Brake Oil Temp Sensor (Lt Front)
0544 Engine Fan Speed Sensor 0854 Brake Oil Temp Sensor (Rt Rear)
0545 Start Aid Relay 0855 Brake Oil Temp Sensor (Lt Rear)
0546 Start Aid Hold Relay 0890 Broadcast Port (Data Link)
0548 Throttle Lock Lamp
The CID is a diagnostic code that indicates which component is faulty. The MID is a diagnostic code that indicates which electronic control module diagnosed
the fault.
Component Identifiers (CID) and Module Identifiers (MID) For
CID No. Component
0041 +8 Volt Sensor Supply
0127 Transmission Oil Pressure Sensor
0168 System Voltage
0177 Transmission Oil Temperature Sensor
0190 Engine Output Speed(EOS) Signal
0248 CAT Data Link
0268 Programmable Parameters
0533 Brake Control
0585 Transmission Output Speed I
0672 Converter Output Speed(COS)
0673 Transmission Output Speed II
0674 Transmission Intermediate Speed 1
0709 Lockup Solenoid
0826 Torque Converter Oil Temperature Sensor
0967 Machine Application
1233 Transmission Latching Pressure Sensor 1
1235 Transmission Latching Solenoid
1244 Transmission Second Stage Relief Solenoid
1273 Chassis Electronic Control Module
1401 Transmission Solenoid 1
1402 Transmission Solenoid 2
1403 Transmission Solenoid 3
1404 Transmission Solenoid 4
1405 Transmission Solenoid 5
1406 Transmission Solenoid 6
1407 Transmission Solenoid 7
1427 Machine Lockout Indicator Lamp
1428 Requested Gear Command Signal
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for
the Transmission Control (MID 081)
CID No. Component
0144 Backup Alarm Relay
0168 System Voltage
0248 CAT Data Link
0296 Transmission Electronic Control Module
0444 Start Relay
0533 Brake Control
0702 Gear Selector Lever
0733 Hoist Lever
0967 Machine Application
1175 Body Position Sensor
1236 Body Up Lamp
1237 Hoist Pump Bypass 1 Solenoid
1238 Hoist Pump Bypass 2 Solenoid
1239 Hoist Control To Tank Head Solenoid
1240 Hoist Control To Tank Rod Solenoid
1241 Hoist Pump To Control Head Solenoid
1242 Hoist Pump To Control Rod Solenoid
1243 Hoist Pilot System Enable Solenoid
1245 Accumulator Bleed Relay
1274 Machine Operation State
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for
the Chassis Control (MID 087)
CID No. Component
0001 Cylinder 1
0002 Cylinder 2
0003 Cylinder 3
0004 Cylinder 4
0005 Cylinder 5
0006 Cylinder 6
0007 Cylinder 7
0008 Cylinder 8
0009 Cylinder 9
0010 Cylinder 10
0011 Cylinder 11
0012 Cylinder 12
0091 Throttle Sensor Output
0100 Filtered Oil Pressure
0101 Crankcase Pressure Signal
0110 Coolant Temperature
0168 Battery Voltage
0190 Engine RPM Signal
0248 CAT Data Link
0253 Personality Module
0254 ECM
0261 Timing Calibration
0262 Analog Sensor Supply
0263 Digital Sensor Supply
0267 Shutdown Inputs
0268 System Parameters
0273 Turbocharger Outlet Pressure
0274 Atmospheric Pressure
0275 Right Turbocharger Inlet Pressure
0276 Left Turbocharger Inlet Pressure
0291 Engine Cooling Fan Solenoid
0296 Communicate w/Trans
0338 Prelube Pump Relay
0526 Wastegate Solenoid
0542 Unfiltered Oil Pressure Signal
0543 Filtered Oil Pressure
0544 Engine Fan Speed Sensor Signal
0545 Start Aid Relay
0546 Start Aid Hold Relay
0562 Caterpillar Monitoring System Communications
0569 Oil Renewal Solenoid
0800 CAT Data Link Communication
0827 Left Exhaust Temp Signal
0828 Right Exhaust Temp Signal
0829 Rear Aftercooler Coolant Temperature Signal
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for the
Engine Controls (MID 033,034, and 036)
CID No. Component
0041 +8 Volt Sensor Supply
0070 Operator Park Brake On/Off Switch
0168 System Voltage
0190 Engine Output Speed(EOS) Signal
0248 CAT Data Link
0269 Sensor Supply Voltage
0291 Engine Cooling Fan Solenoid
0296 Transmission Control
0544 Engine Cooling Fan Speed
0607 Left Wheel Speed Sensor
0608 Right Wheel Speed Sensor
0627 Parking Brake Switch
0681 Parking Brake Solenoid
0689 TCS Left Brake Solenoid
0690 TCS Right Brake Solenoid
0704 Brake System Pressure Switch
0710 ARC Supply Solenoid
0711 ARC Control Solenoid
0712 ARC Lamp
0713 Operator ARC On/Off Switch
0714 ARC Pressure Switch
0719 TCS Proportional Solenoid
0742 Service Brake Lamp Relay
0796 Differential High Speed Fan Solenoid
0835 Rear Differential Temperature Sensor
0852 Right Front Brake Temperature Sensor
0853 Left Front Brake Temperature Sensor
0854 Right Rear Brake Temperature Sensor
0855 Left Rear Brake Temperature Sensor
0966 TCS Lamp
0967 Machine Application
1225 Left Rear Park Brake Pressure Sensor
1226 Right Rear Park Brake Pressure Sensor
1227 Retarder Lever
1229 Brake Cooling Pump Speed
1230 Brake Cooling Pump Drive Solenoid
1231 Brake Oil Diverter Solenoid
1232 Rear Differential Lube Bypass Solenoid
1269 Operator Service Brake Pressure Switch
1271 Final Drive Lube Pressure Switch
1422 Front Engine Electronic Control Module
1437 Rear Axle Pump Diverter Solenoid Valve
The CID is a diagnostic code that indicates which component is faulty. The MID is
a diagnostic code that indicates which electronic control module diagnosed the
fault.
Component Identifiers (CID) for
the Brake Control (MID 116)
FMI No. Failure Description
0 Data valid but above normal operational range.
1 Data valid but below normal operational range.
2 Data erratic, intermittent, or incorrect.
3 Voltage above normal or shorted high.
4 Voltage below normal or shorted low.
5 Current below normal or open circuit.
6 Current above normal or grounded circuit.
7 Mechanical system not responding properly.
8 Abnormal frequency, pulse width, or period.
9 Abnormal update.
10 Abnormal rate of change.
11 Failure mode not identifiable.
12 Bad device or component.
13 Out of calibration.
14 Parameter failures.
15 Parameter failures.
16 Parameter not available.
17 Module not responding.
18 Sensor supply fault.
19 Condition not met.
20 Parameter failures.
Failure Mode Identifiers (FMI)
The FMI is a diagnostic code that indicates what type of failure has occurred.
Off Machine Switch Specification
Part No. Function Actuate Deactuate Contact Position
1900 kPa MAX 1400 ± 140 kpa B-A Normally Open
(275 psi MAX) (205 ± 20 psi) B-C Normally Closed
13800 kPa MAX 12300 ± 345 kpa 1-2 Normally Open
(2001.5 psi) (1784 ± 50 psi) 1-3 Normally Closed
Diff Lube Filter Bypass 210 ± 70 kpa Normally
Fan Drive Filter (30 ± 10 psi) Open
Final Drive Filter Bypass
275 to 1750 kpa¹ Normally ²
(40 to 255 psi) Open
ARC Pressure 551 kPa 344 ± 20 kpa B-A Normally Open
Brake System Pressure (36.3 psi) (49.9 ± 2.9 psi) A-C Normally Closed
Foot Brake Pressure
93 ± 20 kpa 70 ± 20 kpa Normally
(13.5 ± 2.9 psi) (10.2 ± 2.9 psi) Open
362 ± 29 mN (45.6 mm ID
point)
303 mN MIN Normally
(1.3 ± 0.1 oz, 1.8 in ID
point)
(1.1 oz MIN) Open
137.9 ± 13.8 kpa 82.7 kPa MIN Normally
(20.0 ± 2.0 psi) (12.0 psi) Closed
276 ± 28 kpa 79 kPa MIN Normally
(40 ± 4 psi) (26 psi) Closed
14350 kPa MAX 12350 ± 350 kpa B-A Normally Open
(2081.28 psi MAX) (1791.20 ± 50.76 psi) B-C Normally Closed
² Contact position at the contacts of the harness connector.
144-5661
156-1382
173-2679
--
--114-5333
128-5091
130-7459
138-3672
3E-7809
9X-6855
9X-7781
¹ A hysteresis band exists: with increasing pressure the closed condition can be maintained up to 2800 kpa (405 psi), with decreasing pressure the closed
condition can be maintained down to 170 kpa (25 psi).
Coolant Flow
Fuel Filter Diff
Brake Oil Filter
Steering High Press
Steering Low Press
Brake Oil Accum Pressure
Refrigerant Pressure (AC)
Diff Lube Pressure
Wire
Number
Wire
Color
Description
Wire
Number
Wire
Color
Description
Power Distribution Circuits Control Circuits Continued
101 RD Bat (+) R709 OR Injector 9 Sol
102 RD Hd Lmp R710 GY Injector 10 Sol
103 RD Aux Ckt R711 PU Injector 11 Sol
105 RD Key Sw R712 BR Injector 12 Sol
109 RD Alt Output (+) Term. R718 BU Eng Oil Low Sw
110 RD Aux Ckt R719 BR Eng Oil Very Low Sw
112 PU Main Power Rly Output R723 PK Timing Cal +
113 OR VIMS B+ Switched R724 PU Timing Cal -
115 PK Aux Ckt R725 WH Fuel Filter Sw
119 PK Aux Ckt R726 PU Injector 1 & 3 Sol Return
120 YL Aux Ckt R727 YL Injector 2 & 4 Sol Return
121 YL Back Alarm To Lamp R728 BR Injector 5 & 7 Sol Return
122 BU Aux Ckt R729 GN Injector 6 & 8 Sol Return
123 WH Aux Ckt R730 GY Injector 9 & 11 Sol Return
124 GN A/C R731 OR Injector 10 & 12 Sol Return
125 OR Aux Ckt R746 PK Turbo Outlet Press Sensor
126 RD Xmsn Ctrl R747 GY Atmospheric Press Sensor
127 RD Aux Ckt R751 YL Aftercooler Temp Sensor
128 RD Aux Ckt R795 YL Crankcase Press Sensor
135 BU Aux Ckt R796 GN Oil Press Sensor Unfiltered
139 OR Aux Ckt R797 WH Wastegate Return
149 PU Aux Ckt R798 PK Wastegate Solenoid
150 RD Bat (+) R799 BR PWM Return 1&2
151 GN Aux Ckt T701 GY Injector 1 Sol
170 RD Aux Ckt T702 PU Injector 2 Sol
173 RD Aux Ckt T703 BR Injector 3 Sol
176 RD Aux Ckt T704 GN Injector 4 Sol
185 YL Aux Ckt T705 YL Injector 5 Sol
Ground Circuits T706 GY Injector 6 Sol
200 BK Main Chassis T707 PU Injector 7 Sol
201 BK Operator Monitor Return T708 BR Injector 8 Sol
229 BK Bat (-) T709 OR Injector 9 Sol
A234 BK J1939 Shield Gnd T710 GY Injector 10 Sol
A251 BK VIMS Ser Mod #1 T711 PU Injector 11 Sol
A252 BK VIMS Ser Mod #2 T712 BR Injector 12 Sol
A253 BK VIMS Ser Mod #3 T718 BU Eng Oil Low Sw
A274 BK Power Neg T719 BR Eng Oil Very Low Sw
Basic Machine Circuits T723 PK Timing Cal +
301 BU Starter No. 1 Sol T724 PU Timing Cal -
307 OR Key SW To VIMS Sensor Module T725 WH Fuel Filter Sw
308 YL Main Power Relay Coil T726 YL Injector 1 & 3 Sol Return
321 BR Backup Alarm Lamp Travel Alarm T727 GN Injector 2 & 4 Sol Return
322 GY Warning Horn (Forward) T728 BR Injector 5 & 7 Sol Return
326 PU Key SW "C" Term. T729 GN Injector 6 & 8 Sol Return
327 PK Shutdown Solenoid T730 GY Injector 9 & 11 Sol Return
393 BR Dimmer Relay Coil T731 OR Injector 10 & 12 Sol Return
R317 YL Start Aid Relay to Start Aid Sol Front Eng. T746 PK Turbo Outlet Press Sensor
T317 YL Start Aid Relay to Start Aid Sol Rear Eng. T747 GY Atmospheric Press Sensor
X337 WH Prelube Signal from ECM to Relay T751 YL Aftercooler Temp Sensor
Monitoring Circuits T795 YL Crankcase Press Sensor
403 GN Alternator (R) Term. T796 GN Oil Press Sensor Unfiltered
410 WH Opr Mon Action Alarm T797 WH Wastegate Return
411 PK Opr Mon Master T798 PK Wastegate Solenoid
417 GY Primary Ster SW T799 BR PWM Return 1&2
425 PK Opr Mon Power Train Oil Level X717 YL Throttle Bypass
426 BR Opr Mon Power Train Oil Filter X720 GN Start Aid Switch
428 OR Opr Mon Xmsn Oil Temp X721 BR User Defined Shutdown
429 YL Opr Mon Brake Oil Temp 801 PK Auto Lube Sol Or Motor
432 PK Opr Mon Brake Press. (Oil) 858 GY Payload Mon Right Front Sensor
447 PK Fuel Level Gage 859 YL Payload Mon Left Front Sensor
450 YL Tach Sender (+) 860 PK Payload Mon Right Rear Sensor
451 BR Tach Sender (-) 861 PU Payload Mon Left Rear Sensor
454 GN Retarder Indicator Lamp 875 BU VIMS RS 232 Port Trans
481 GN Converter Temp SW To Brake Oil Temp SW 876 OR VIMS RS 232 Port Receive
A451 WH Opr Mon Steering Oil Temp 892 BR VIMS Start Mod Right (-) Port/CAT Data Link (-)
A491 WH Trans Supply SW To Torque Conv Inlet Filter SW 893 GN VIMS Start Mod Right (+) Port/CAT Data Link (+)
A492 OR Hoist Filter SW To Hoist Filter SW H801 PU Proportional Driver Return (1-4)
A493 YL Hoist Filter SW To T.C. SW H802 GY Proportional Driver Return (5-8)
A495 GY Alternator (R) Terminal #2 H803 BU Proportional Driver Return (9-12)
C413 YL VIMS Display Data H807 YL On/Off Driver Return (1-8)
C414 BU VIMS Display Load H809 YL Timer Output / Shutdown Timer Output
C415 WH VIMS Display Keydata H863 BU Proportional Driver Return (Rear Eng ECM)
C428 GN Brake Cooling Filter SW H864 GN Proportional Driver Return (Rear Eng ECM)
C429 GY Differential Oil Temp H865 BR Proportional Driver Return (Rear Eng ECM)
C453 YL Ambient Temp H867 YL On/Off Driver Return (Rear Eng ECM)
C466 YL LF Brake Oil Temp J800 OR ABL (IBC) +12 Volts
C467 BU LR Brake Oil Temp J802 OR Differential Pump Pressure Switch
C473 GN Rear Pump Press J803 BR Radiator Fan Shaft Speed +
C484 YL Rear Differential Filter Press SW J804 WH Radiator Fan Shaft Speed -
E456 WH Autolube Pressure J805 YL Brake Filter Switch
F418 GN VIMS RS232 Port 2 Trans J806 GY Rear Differential Filter Switch
F419 YL VIMS RS232 Port 2 Receive J810 PU Brake Cooling Filter
F433 PU Brake Temp J811 BK On/Off Return
F447 PU Steering HI Press SW To LO Press SW J812 PK Fan Drive Oil Filter Bypass Switch
G427 BU T/C Inlet Filter SW To Hoist Screen SW J813 BK Proportional Return
G428 BU Transmission Oil Press J814 BK Proportional Return
G439 YL Steering Oil Tank Level SW (VIMS) J815 BK Proportional Return
H428 GY Left Rear Brake Oil Pressure J816 GN Radiator Pump Drive
H429 BU Right Rear Brake Oil Pressure J817 WH Brake Cooling Pump Drive
H430 BU Body Up Indicator J818 OR Brake Cooling Mtr Speed (+)
X412 BU Coolant Flow Switch J819 BR Brake Cooling Mtr Speed (-)
Accessory Circuits J820 OR Hoist Pressure Sensor 2
500 BR Wiper - Front (Park) J821 BR Hoist Pressure Sensor 1
501 GN Wiper - Front (Low) J822 WH Hoist Position Sensor
502 OR Wiper - Front (HI) J823 YL XMSN Latching Press Sensor
506 PU Washer - Front J824 GY Hoist CT Head Prop Sol (Body Up)
508 PU Radio Speaker - Left J825 PU Hoist PC Head Prop Sol (Body Up)
509 WH Radio Speaker - Left (Commom) J826 PK Hoist Pilot System On/Off Sol
511 BR Radio Speaker - Right J827 GN Hoist CT Rod Prop Sol (Body Down)
512 GN Radio Speaker - Right (Common) J828 BU Hoist PC Rod Prop Sol (Body Down)
513 OR A/C Compressor/Refrigerant Pressure SW J829 OR Hoist Pump Bypass 1 Sol
515 GY Blower Motor (HI) J830 BR Hoist Pump Bypass 2 Sol
516 GN Blower Motor (Medium) J831 GY XMSN 2 Stage Relief Valve
517 BU Blower Motor (Low) J832 YL XMSN Latch Sol
518 OR Hazard Flasher To SW J840 WH Lamp HS Return
520 WH Opr A/C SW To Thermostat/Fuse J841 YL Lamp HS Return
521 YL A/C SW To Refrigerant SW J842 BK Digital Return
522 WH A/C Clutch To Thermostat SW J845 PU Rear Differential Bypass Sol
526 YL Wiper - Right (Park) J846 BR Lamp HS Return
527 GN Wiper - Right (Low) J847 GN VIMS Action Alarm Return
539 BU Turn Signal Indicator Basic/Right J848 BU VIMS Service Lamp Return
540 WH Turn Signal Indicator Left J849 WH VIMS ABL PWM Return
575 YL Wiper - Aux (Park) J878 YL Switch/Sensor Return #5
590 GY Wiper SW To Intermittent Module J879 GN Switch/Sensor Return #6
591 WH Intermittent Module To Wiper Motor J881 YL Xmsn Control State
592 BU DC/DC Converter Power Output J882 BR Cab Control State
593 GN Condensor Fan Relay To Motors J883 BU Gear Select State
A513 PK DC/DC Converter Memory Output R800 OR +8v Digital Sensor Power
A524 BR Temp Potentiometer Pos 2 R803 GY LH Turbo Exh Temp Sensor
A589 OR Power Window Up R804 GY RH Turbo Exh Temp Sensor
A590 BU Power Window Down R807 WH Start Aid Hold Relay
C569 YL Second DC/DC Converter Power Output R810 BR Start Aid Pull In Relay
C597 BU Right Power Window Up R814 PK RH Turbo Exh Press Sensor
C598 OR Right Power Window Down T800 OR +8v Digital Sensor Power
E501
