308C CR Excavator Hydraulic System – Boom Cylinder – Install

Installation Procedure

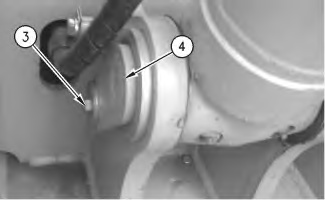

    Illustration 1 g00915839

  1. Position the boom cylinder.
  1. Install pin assembly (4) .
  1. Install bolt (3).

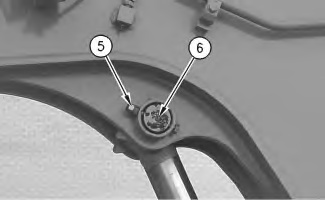

    Illustration 2 g00915840

  1. Install pin (6) .
  1. Install bolt (5) .

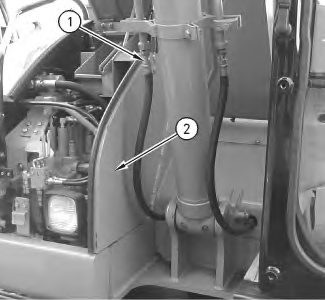

    Illustration 3 g00915838

  1. Connect hose assemblies (1) .
  1. Install cover (2) .
