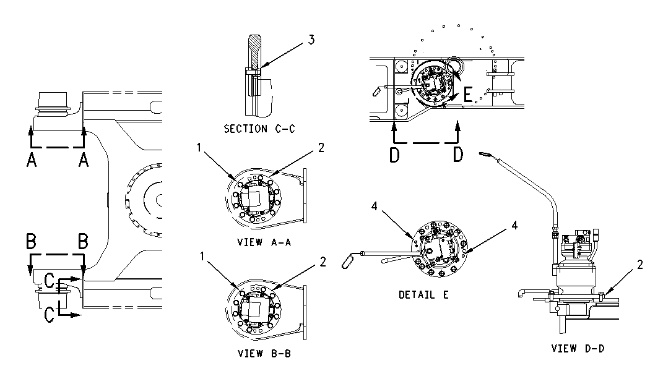

| Illustration 1 | g00858035 |
(1) Torque for twenty bolts … 270 ± 40 N·m (200 ± 30 lb ft)
(2) Clean surfaces of protective coating prior to assembly.
(3) Torque for twelve bolts … 175 ± 30 N·m (130 ± 22 lb ft)
(4) Apply 4C-5597 Anti-Seize Compound to the dowel pins prior to installation.
