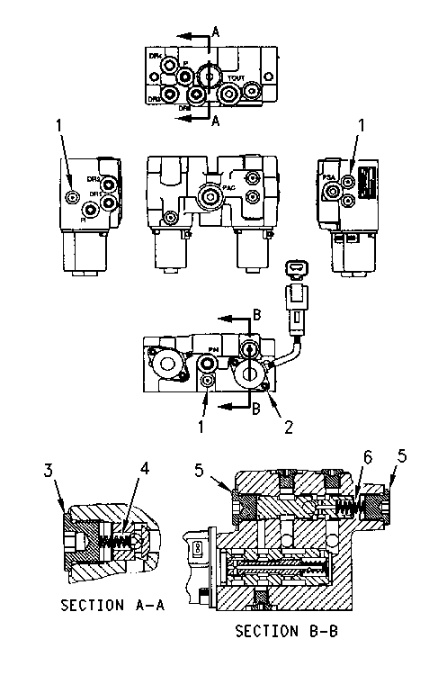

| Illustration 1 | g00750222 |
(1) Torque for thirteen plugs … 5 ± 1 N·m (3.7 ± 0.7 lb ft)
(2) Torque for four bolts … 4 ± 1 N·m (3.0 ± 0.7 lb ft)
(3) Torque for plug … 49 ± 5 N·m (36.1 ± 3.7 lb ft)
(4) 096-1598 Spring
- Free length … 17.0 mm (0.67 inch)
- Outside diameter … 6.2 mm (0.24 inch)
(5) Torque for two plugs … 31 ± 3 N·m (22.9 ± 2.2 lb ft)
(6) 177-2684 Spring
- Free length … 21.0 mm (0.83 inch)
- Outside diameter … 6.5 mm (0.26 inch)
