308C CR Excavator Hydraulic System – Travel Motor Lines

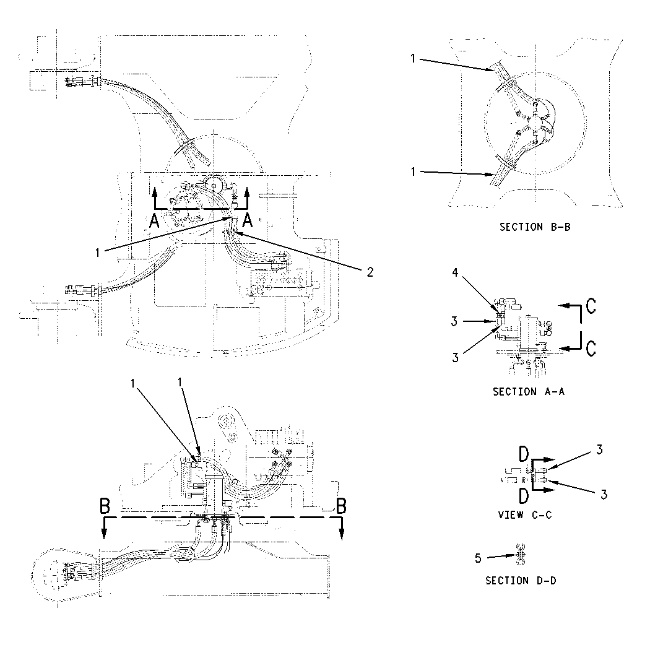

Illustration 1 g00858046

(1) Torque for eight hose assemblies … 108 ± 10 N·m (80 ± 7 lb ft)

(2) Blend corners of cutting edges of straps.

(3) Torque for four tube assemblies … 108 ± 10 N·m (80 ± 7 lb ft)

(4) Torque for one bolt … 30 ± 7 N·m (265 ± 60 lb in)

(5) Torque for one bolt … 15 ± 3 N·m (135 ± 27 lb in)
