312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Adjust Clock Mode

Adjustment Of The Clock



Illustration 1 g00687262
  1. At the above menu screen, press the “menu” key.



    Illustration 2 g00687282

  1. Select the “PREFERENCES” option. Press the “OK” key.

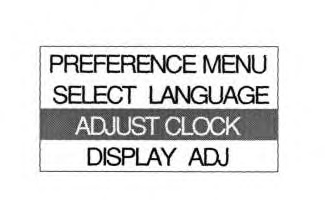

    Illustration 3 g00687410

  1. Select the “ADJUST CLOCK” option. Press the “OK” key.

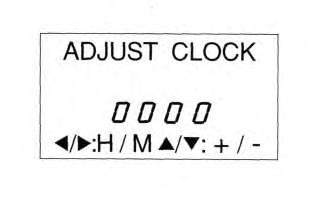

    Illustration 4 g00687421

  1. The keys for direction are used in order to adjust the time. After the time has been set, press the “setting” key.

Adjustment of the 315C Clock



Illustration 5 g00932546

When the above menu is displayed, highlight the time entry on the second line. Press the down key “(10)”. Press the OK key “(14)” when the time entry is highlighted.

Use the up/down arrow key to change the time.

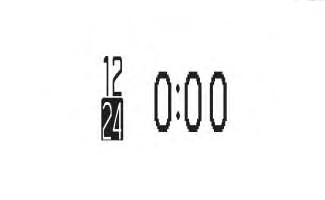

Illustration 6 g00932480

Use the left/right arrow key to change between 12 and 24 hour time. Use the up key or use the down key to change the time. Use the set key when the time is correct.
