312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Automatic Travel Speed Change Is Abnormal – Troubleshoot – CID 0598, CID 1161, and CID 1162

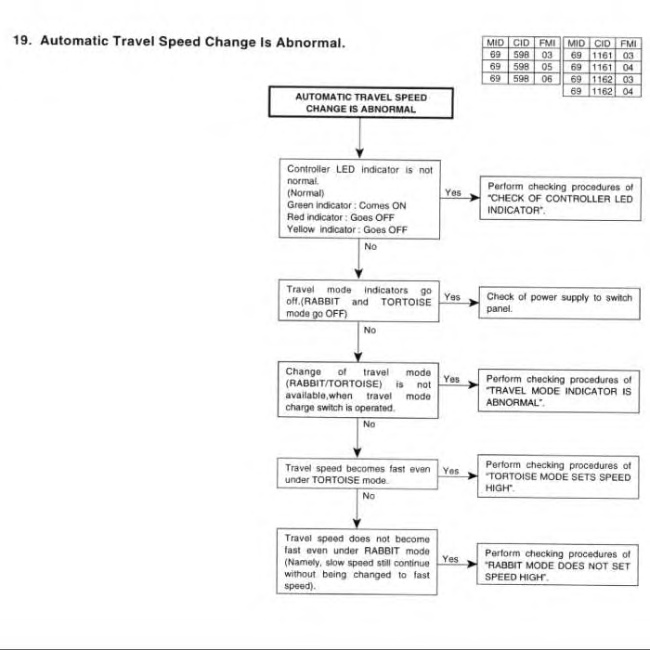

Illustration 1 g00694229

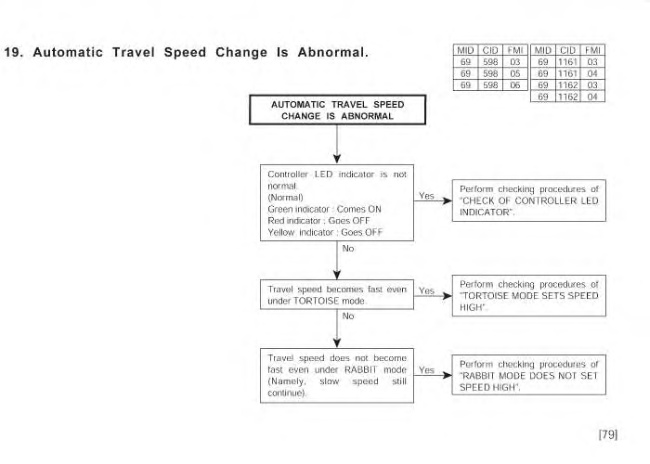

Illustration 2 g00988670

Diagram for 321C

“Check Of Power Supply To Switch Panel”

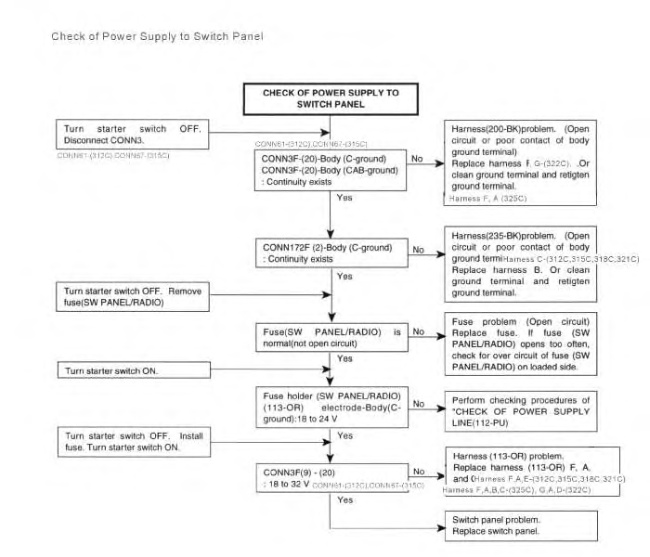

Illustration 3 g01009857

Schematic Of The Switch Panel ( 312C)

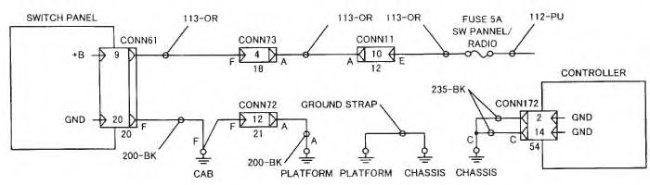

Illustration 4 g00778605

Schematic Of The Switch Panel ( 315C)

Illustration 5 g00778606

Schematic Of The Switch Panel ( 318C )

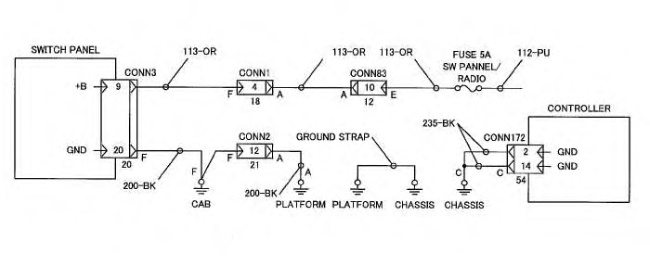

Illustration 6 g01009861

Schematic Of The Switch Panel ( 319C And 320C)

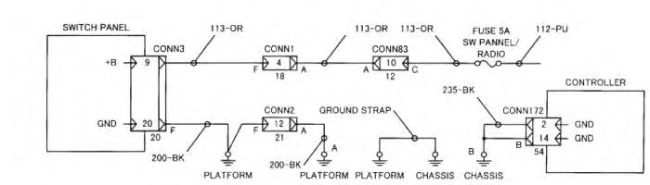

Illustration 7 g00694244

Schematic Of The Switch Panel ( 321C )

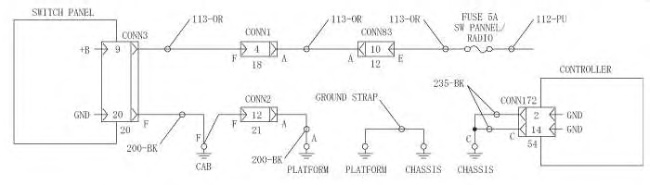

Illustration 8 g00988676

Schematic Of The Switch Panel ( 322C)

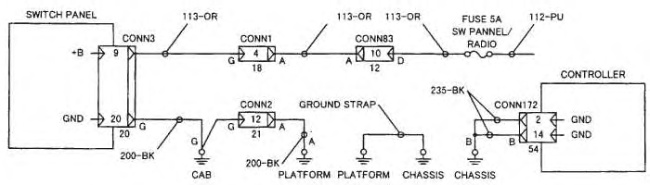

Illustration 9 g00778607

Schematic Of The Switch Panel ( 325C and 330C)

Illustration 10 g00824352
