312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Check of Governor Actuator – Troubleshoot – CID 91 – 315C, 318C, 319C, 320C, 321C, And 322C

Check of Governor Actuator for 315C, 318C, 319C, 320C, And 322C

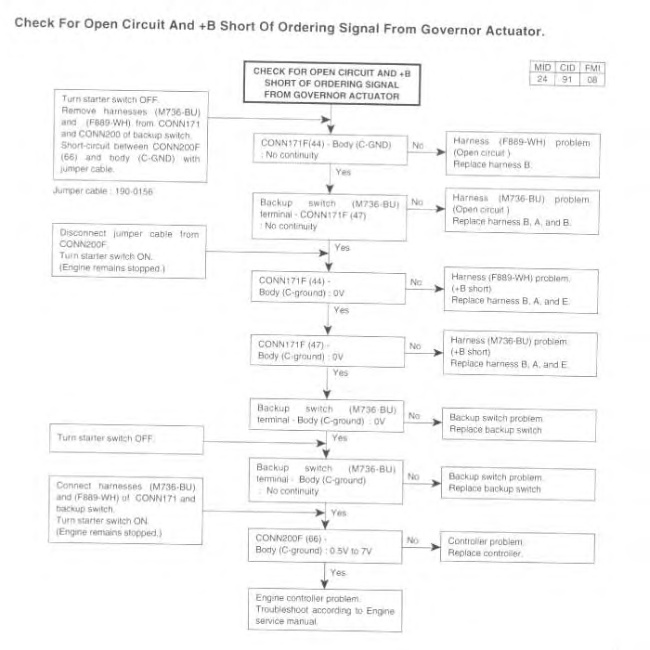

Illustration 1 g00824888

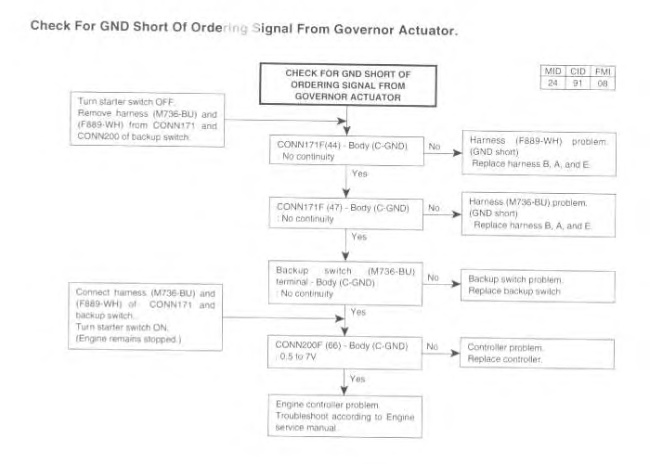

Illustration 2 g00824893

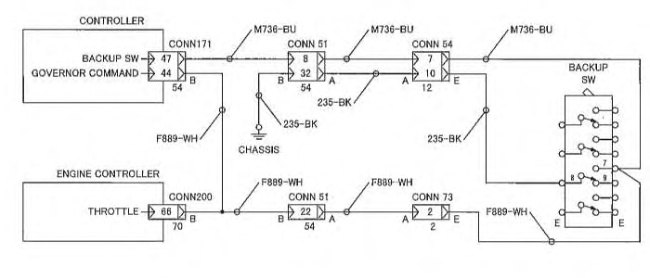

Illustration 3 g00824895

Check of Governor Actuator for 318C

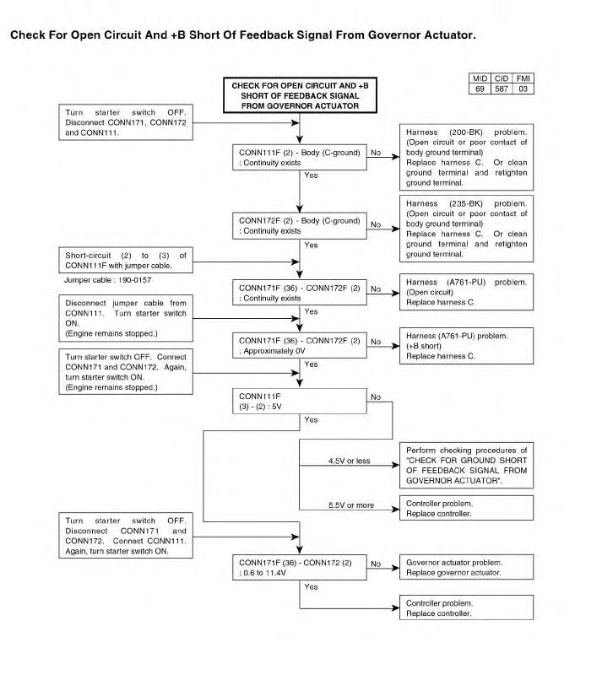

Illustration 4 g01009834

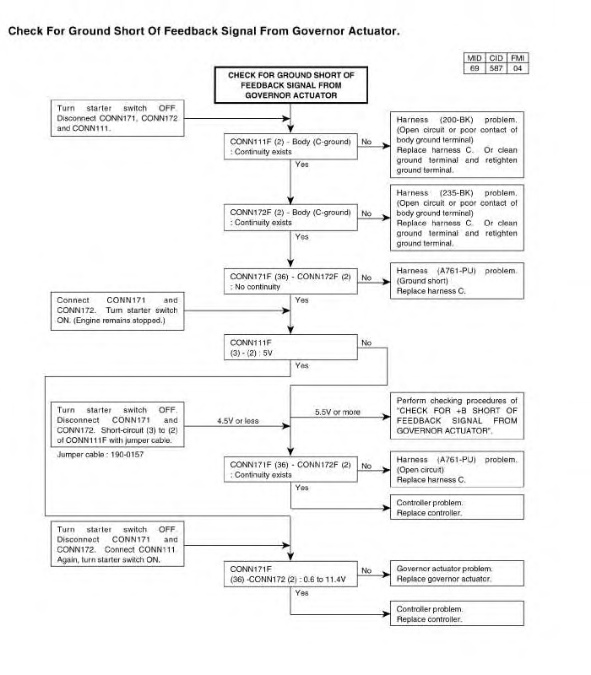

Illustration 5 g01009850

Check of Governor Actuator for 321C

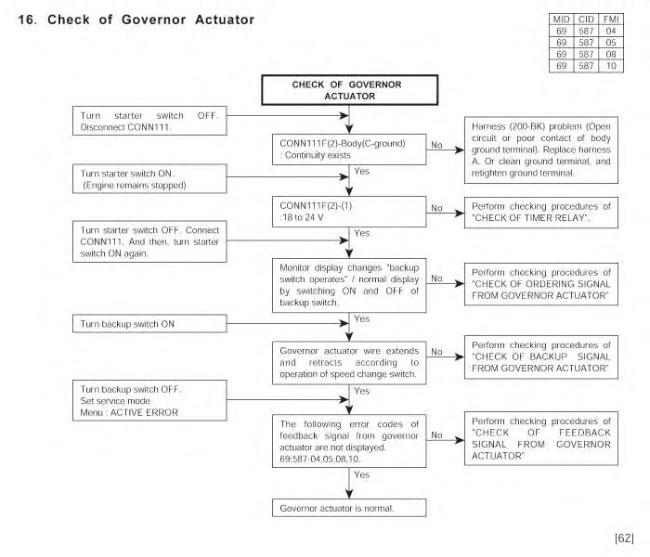

Illustration 6 g00988374

Diagram for 321C

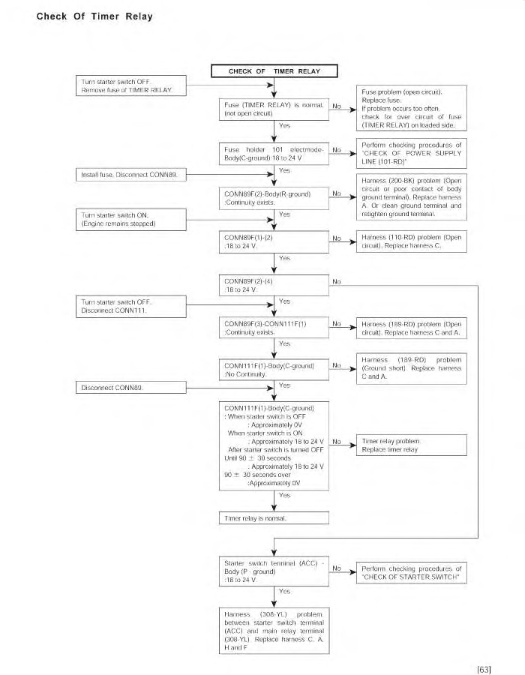

Illustration 7 g00988375

Diagram for 321C

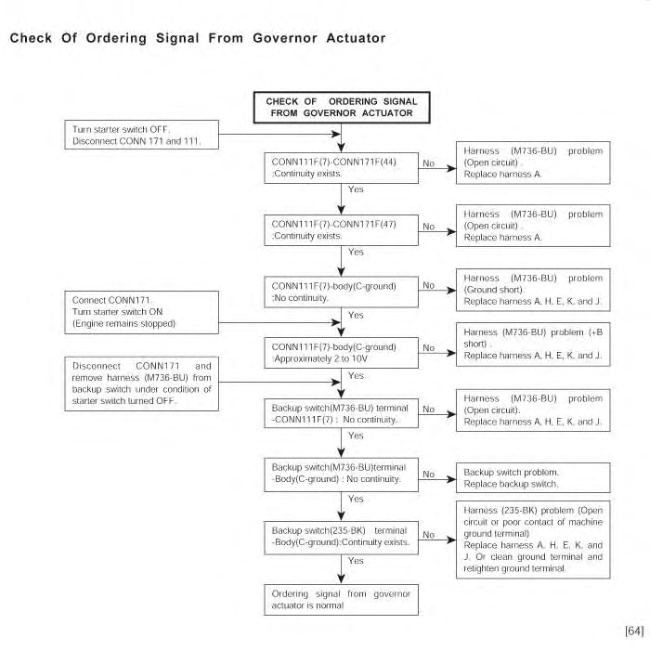

Illustration 8 g00988377

Diagram for 321C

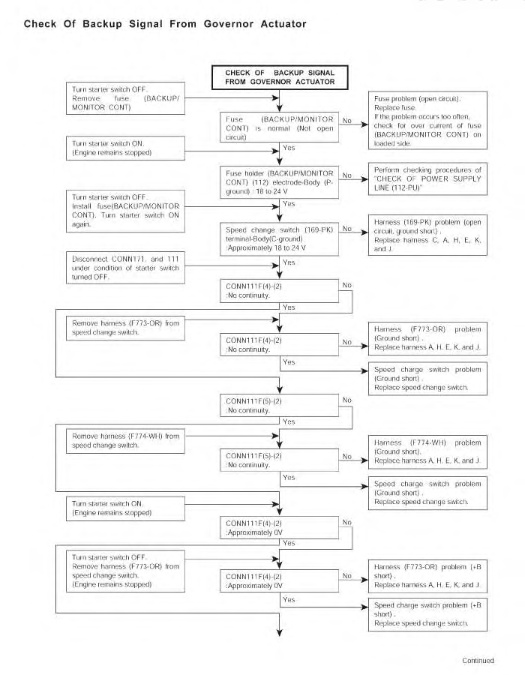

Illustration 9 g00988455



Illustration 10 g00988457

Diagram for 321C
