312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – General Information (Electronic Control System)

The engine and pump controller will monitor the machine continuously. The controller will adjust the speed of the engine and the flow of the hydraulic pump according to the machine conditions and the selections of the operator. The control system consists of the following components: engine and pump control (controller), tool electronic control, monitor panel, various switches, relays, sensors, solenoids, lamps and alarms.

The engine and pump controller communicates with the monitor panel via the CAT data link. The monitor panel will provide the following information to the operator and/or service persons: the conditions of the machine systems, diagnostic information and adjustment information. The monitor panel is also used by the operator to select operational functions.

The controller changes the output of the hydraulic pump according to the load on the machine. This process is designed to improve the rate of fuel consumption. The controller will adjust the flow of hydraulic oil to a tool according to the rate of flow that is required by the specific tool.

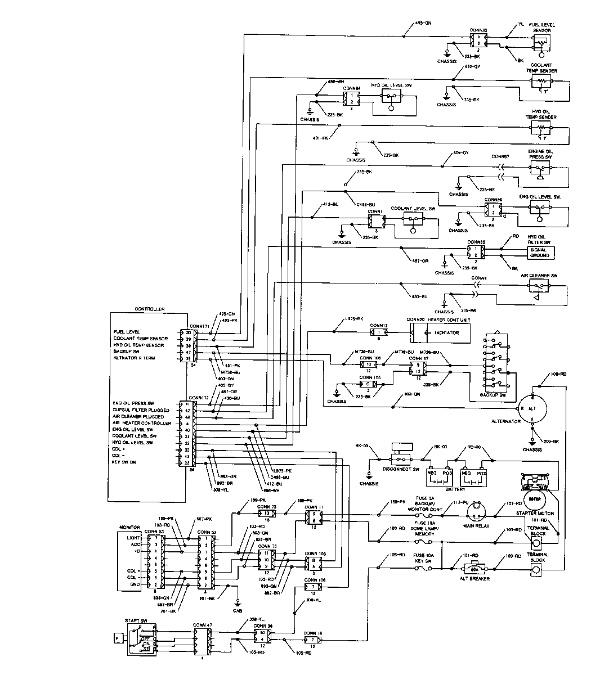

Illustration 1 g00775374

Schematic Of The Engine And Pump Control System ( 312C)

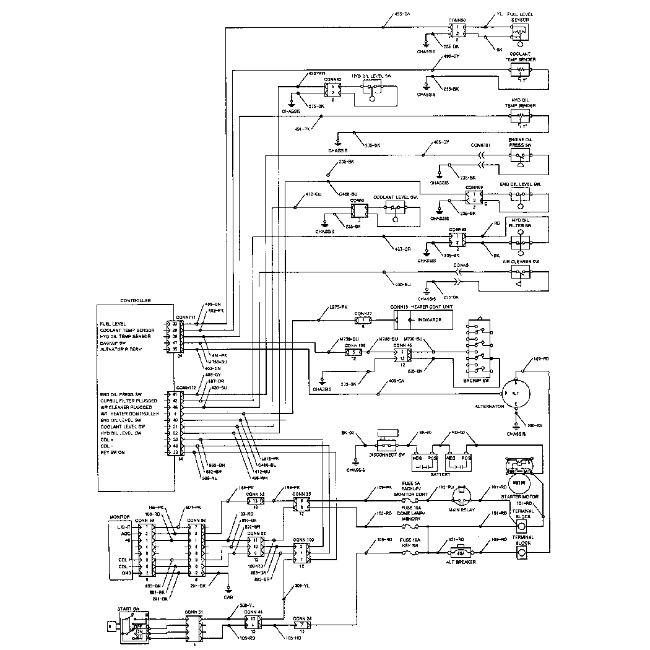

Illustration 2 g00775712

Schematic Of The Engine And Pump Control System 315C and 318C

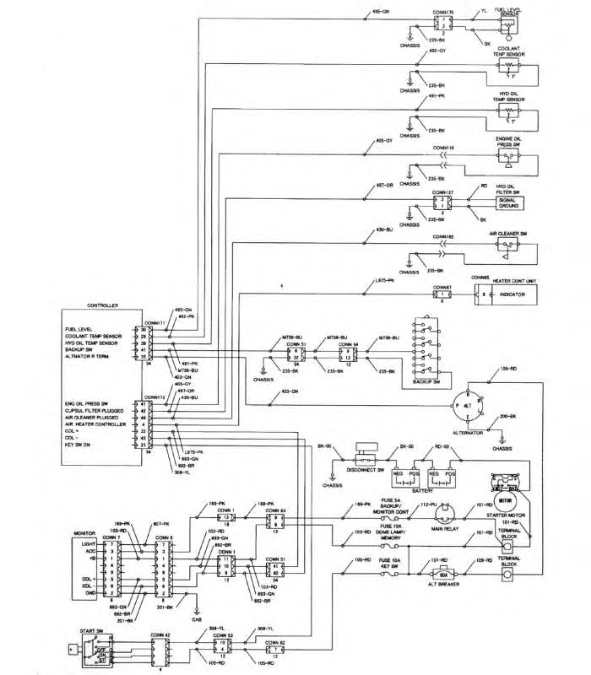

Illustration 3 g00686929

Schematic Of The Engine And Pump Control System For The 319C, 320C and 320C LRR



Illustration 4 g00986641

Schematic Of The Engine And Pump Control System of 321C

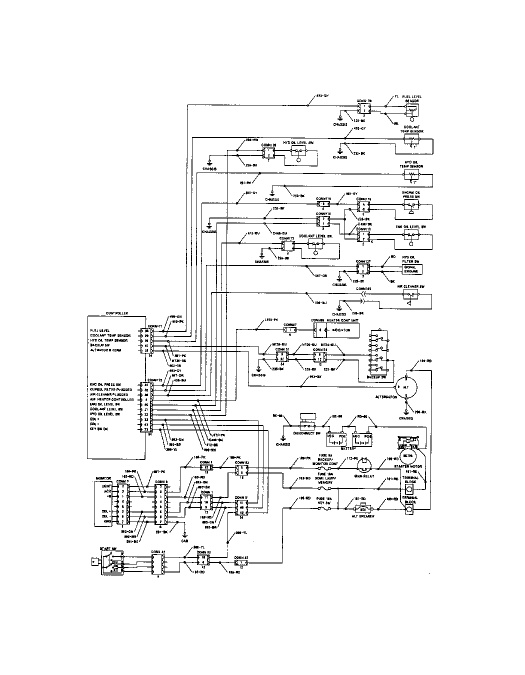

Illustration 5 g00869851

Schematic Of The Engine and Pump Control System ( 322C)

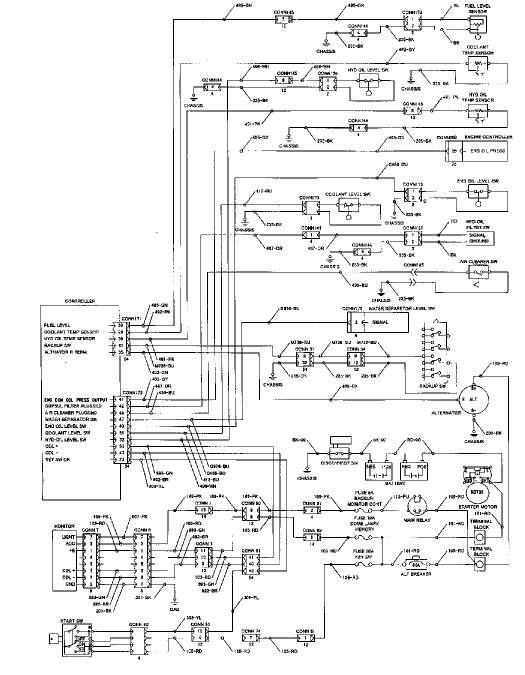

Illustration 6 g00907801

Schematic of the Engine and Pump Control System ( 325C and 330C)
