312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Low Idle Switch Does Not Work – Troubleshoot

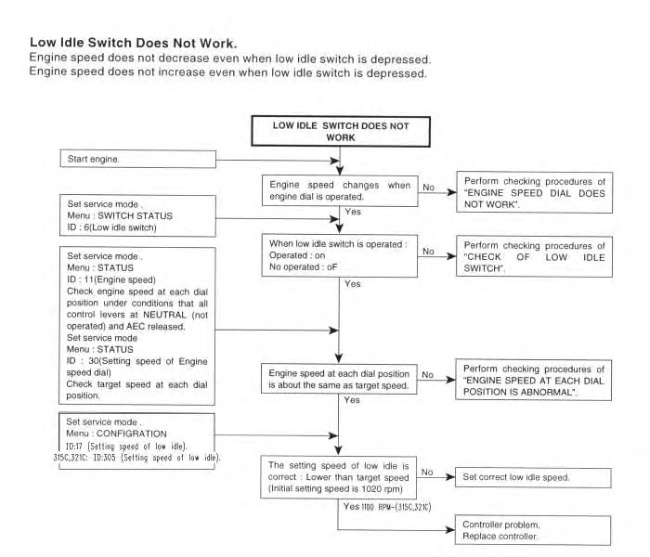

Illustration 1 g00988217

“Check Of Low Idle Switch”

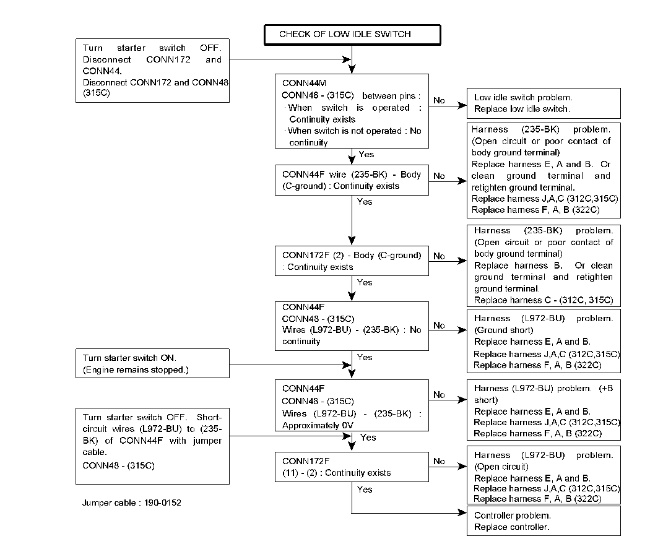

Illustration 2 g01059017

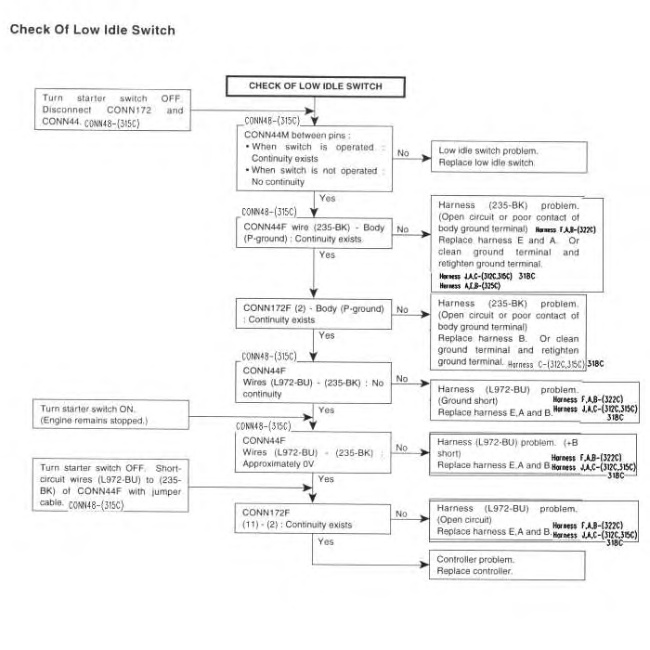

Illustration 3 g00880426



Illustration 4 g01009280

Diagram for 318C

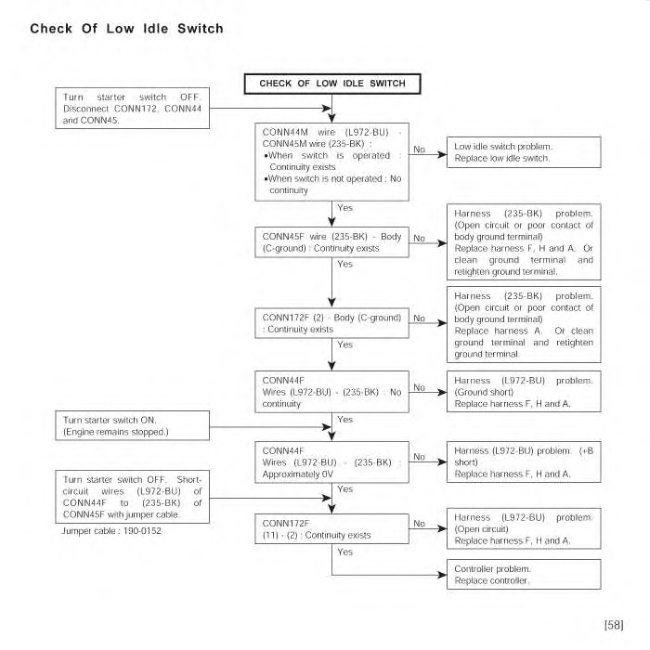

Illustration 5 g00988253

Diagram for 321C

Schematic Of Low Idle Switch For 312C



Illustration 6 g00777130

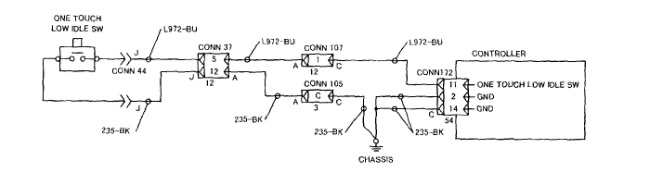

Schematic Of Low Idle Switch For 315C



Illustration 7 g00777131

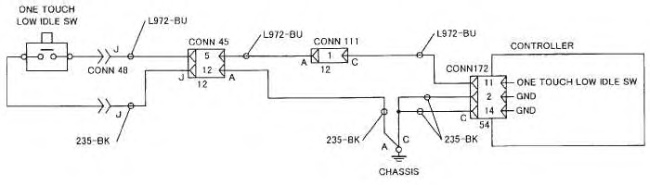

Schematic Of Low Idle Switch For 319C And 320C



Illustration 8 g00690777

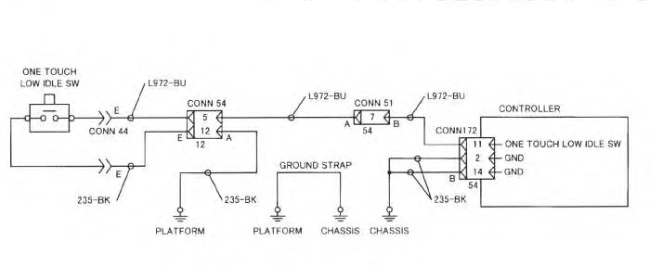

Schematic Of Low Idle Switch For 320C LRR, 325C, M325C MH, and 330C



Illustration 9 g00777132

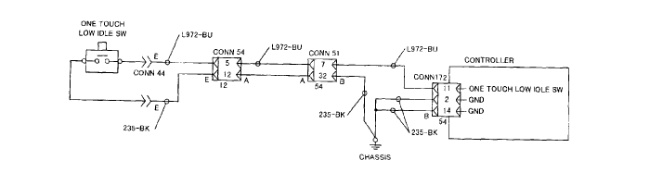

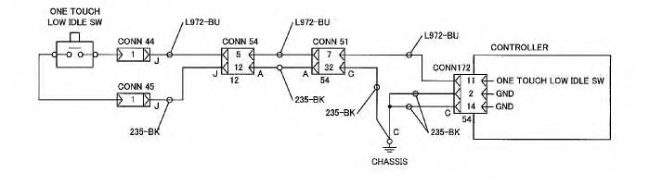

Schematic Of Low Idle Switch For 318C



Illustration 10 g01009298
