312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Using Caterpillar Electronic Technician

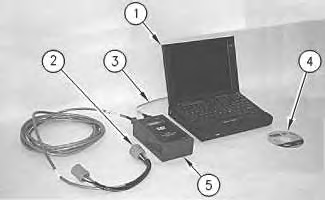

Illustration 1 g00280782

Connections for the Electronic Technician (ET)

The components that are needed to use CAT Electronic Technician to determine diagnostic codes are listed here:

(1) An IBM-COMPATIBLE personal computer with an installed current version of Caterpillar Electronic Technician software

(2) 139-4166 Data Link Cable or 7X-1570 Data Link Cable

(3) 7X-1425 Cable and 4C-6805 Adapter

(4) Special Publication, JEBD3003, Special Publication, JERD2124, Special Publication, JERD2129; Caterpillar Electronic Technician software

(5) 7X-1700 Communication Adapter Tool with Special Publication, NEXG4323, “Communications Adapter Software”

Note: Caterpillar Electronic Technician (ET) is a software program that can be used on an IBM compatible personal computer.

In order to use the Caterpillar Electronic Technician (ET), order the following materials: Special Publication, JERD2124, “ET Single Use Program License”, Special Publication, JEHP1026, “Information and Requirements Sheet”, 7X-1425 Data Link Cable and the Data Subscription and Special Publication, JERD2142, “Data Subscription”. The Special Publication, JEHP1026, “Information and Requirements Sheet” lists the required hardware and the features of the ET.

The Electronic Technician (ET) is not required in order to determine the diagnostic codes and the ET is not required in order to clear the diagnostic codes. However, the process of determining the diagnostic codes is easier and faster by using the ET. The ET can also display information on the history of a diagnostic code and the parameter status of diagnostic codes. These features allow the ET to be a useful tool for troubleshooting.

The ET connects to the machine diagnostic connector and the ET communicates with the electronic control modules over the data link. For more information and the locations of the connectors, see Testing and Adjusting, “Electrical Components and Connector Locations” and the Electrical System Schematic in your machine’s Service Manual.

Connect the ET to the machine. Turn the key start switch to the RUN position. Start the ET. The ET will initiate communications with the electronic control modules on the machine. The ET will list the available electronic control modules on the machine after communication has been established. Choose the menu item “Engine And Pump”. Use the ET in order to determine the diagnostic codes. Follow the troubleshooting procedures that correspond to the diagnostic codes. See Troubleshooting Procedures.

Status Groups For Electronic Technician

Summary Of The Status Groups

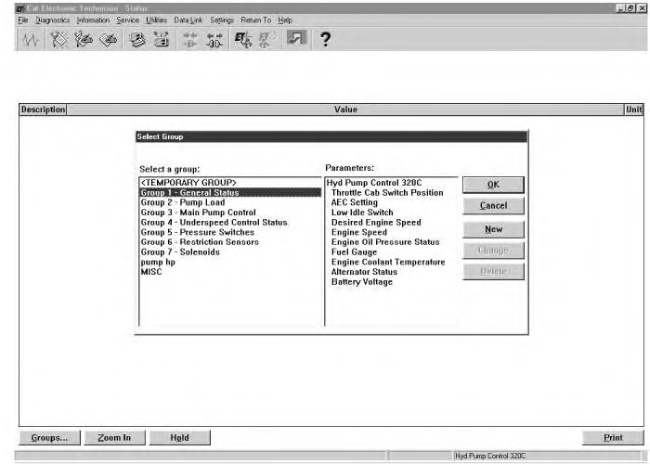

Illustration 2 g00805194

Typical display of the status groups

The following illustrations are only typical examples of status groups. Groups may vary from one machine to another machine.


Calibrations By Using The Electronic Technician

Calibration For The Automatic Governor Actuator

The ET can be used to perform the calibration procedure for the governor actuator. See the following illustrations for the example.

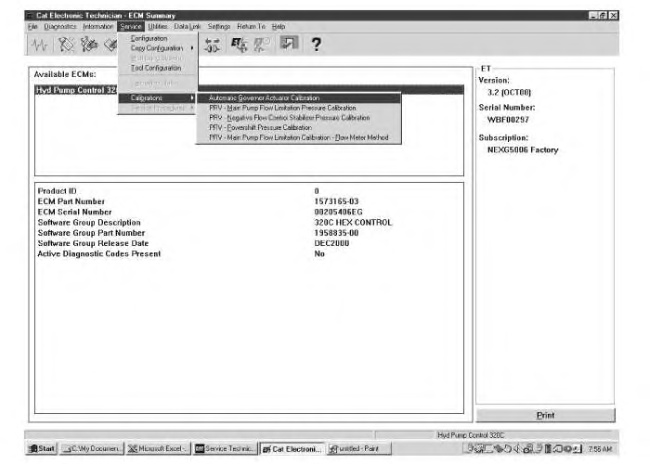

Illustration 3 g00805774

ET screen for the calibration of the automatic governor actuator

Calibration For The Proportional Reducing Valve

The ET can be used to perform the calibration procedure for the proportional reducing valve. See the following illustration for the example.

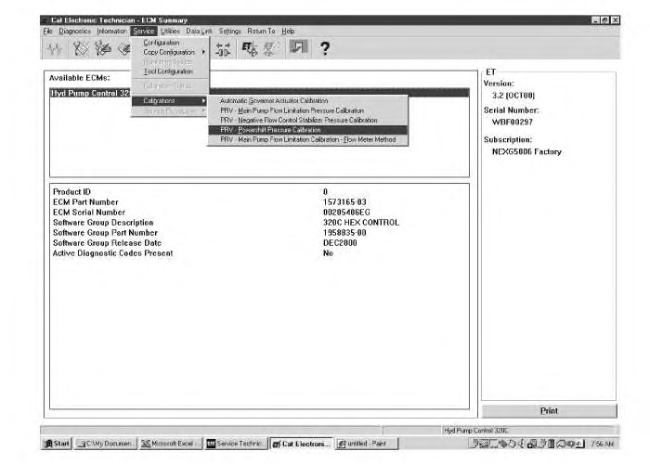

Illustration 4 g00805775

ET screen for the calibration of the proportional reducing valve

Diagnostic Tests

“Engine Speed Test”

The ET can be used to perform the “engine speed test”. See the following illustration for the example.

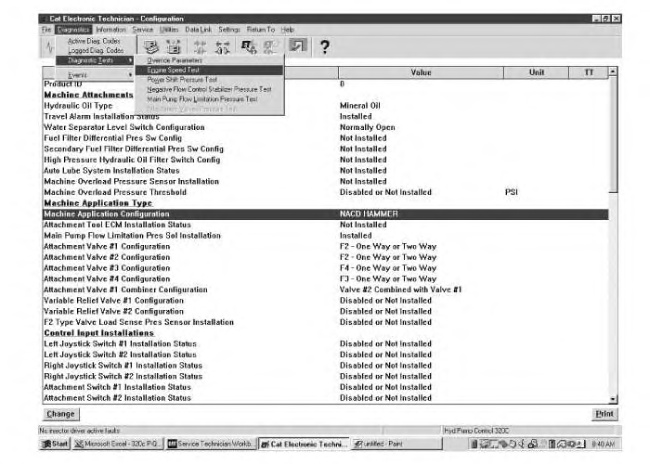

Illustration 5 g00805776

ET screen for the engine speed test

“Power Shift Pressure Test”

The ET can be used to perform the “power shift pressure test”. See the following illustration for the example.

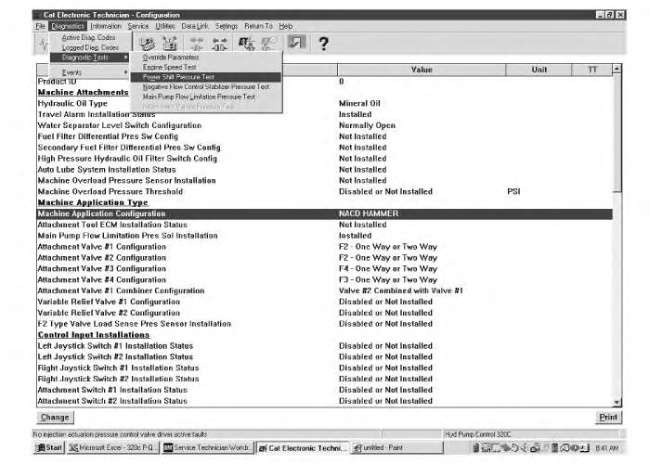

Illustration 6 g00805777

ET screen for the power shift pressure test
