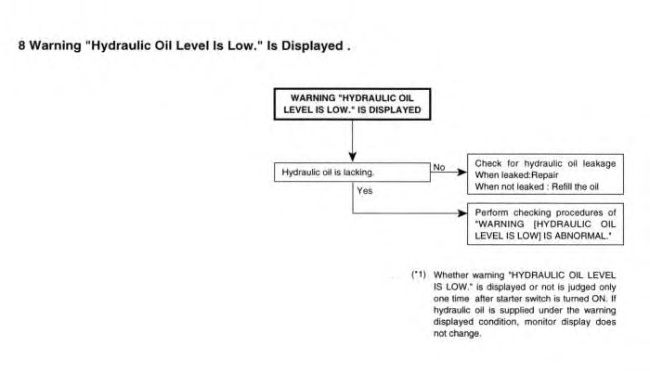

| Illustration 1 | g00693028 |
“Warning “Hydraulic Oil Level Is Low” Is Abnormal”
|
|
|
|
|
|

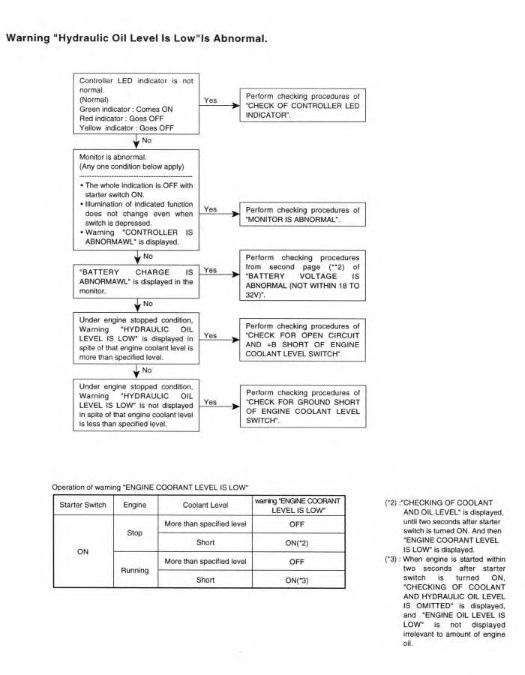

| Illustration 2 | g00693034 |
“Check For Open Circuit And +B Short For Hydraulic Oil Level Switch”
|
|
|
|
|
|

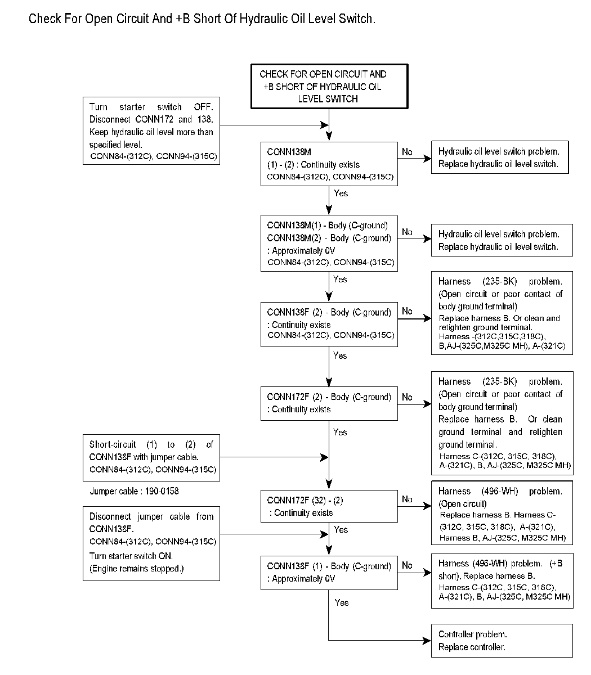

| Illustration 3 | g01060436 |
Schematic Of The Hydraulic Oil Level Switch ( 312C)
|
|
|
|
|
|

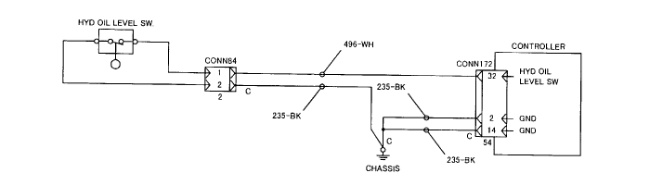

| Illustration 4 | g00777108 |
Schematic Of The Hydraulic Oil Level Switch ( 315C)
|
|
|
|
|
|

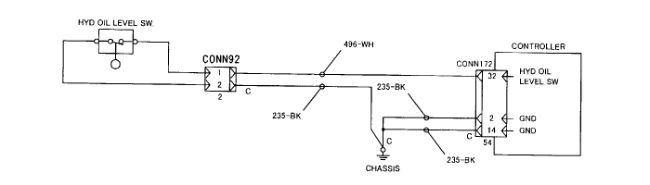

| Illustration 5 | g00777877 |
Schematic Of The Hydraulic Oil Level Switch ( 319C, 320C, 320C LRR and 322C)
|
|
|
|
|
|

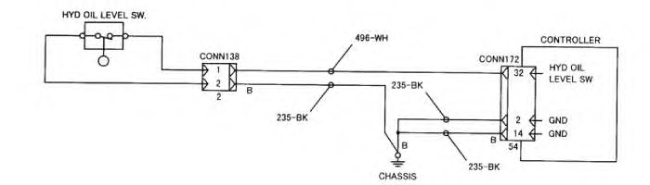

| Illustration 6 | g00693081 |
Schematic Of The Hydraulic Oil Level Switch ( 318C)
|
|
|
|
|
|
| Illustration 7 | g01008360 |

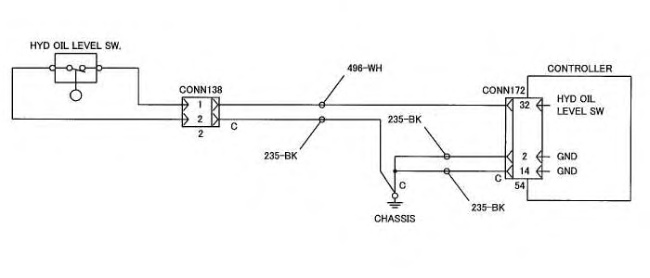

Schematic Of The Hydraulic Oil Level Switch ( 321C)
|
|
|
|
|
|

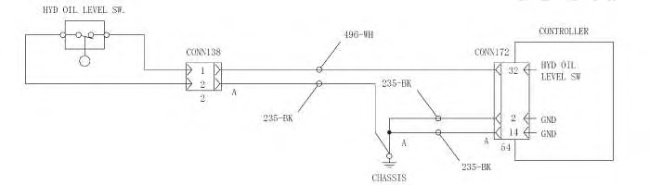

| Illustration 8 | g00987610 |
Schematic Of The Hydraulic Oil Level Switch ( 325C, M325C MH, and 330C)
|
|
|
|
|
|
| Illustration 9 | g00823510 |

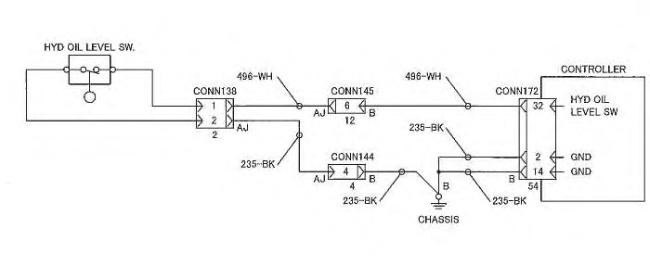

“Check For Ground Short Of Hydraulic Oil Level Switch”
|
|
|
|
|
|

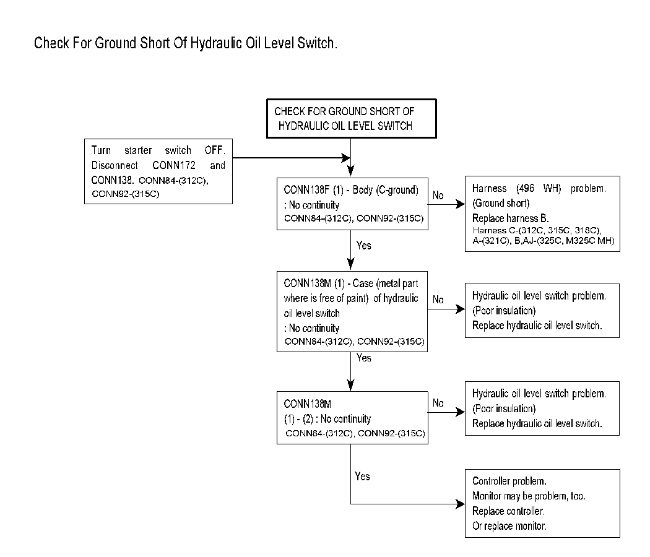

| Illustration 10 | g01060610 |
