312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Warning “Engine Oil Level Is Low” Is Displayed – Troubleshoot

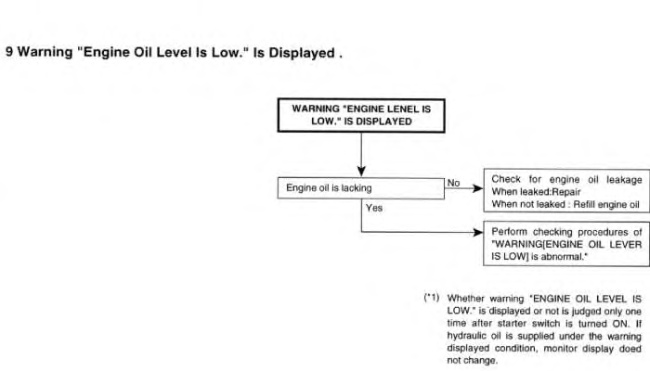

Illustration 1 g00693146

“Warning “Engine Oil Level Is Low” Is Abnormal”

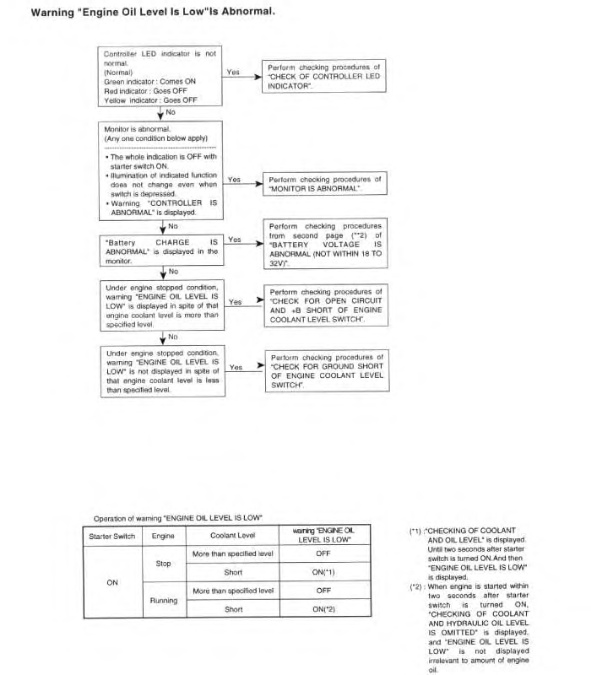

Illustration 2 g00693149

“Check For Open Circuit And +B Short Of Engine Oil Level Switch” ( 312C And 315C)

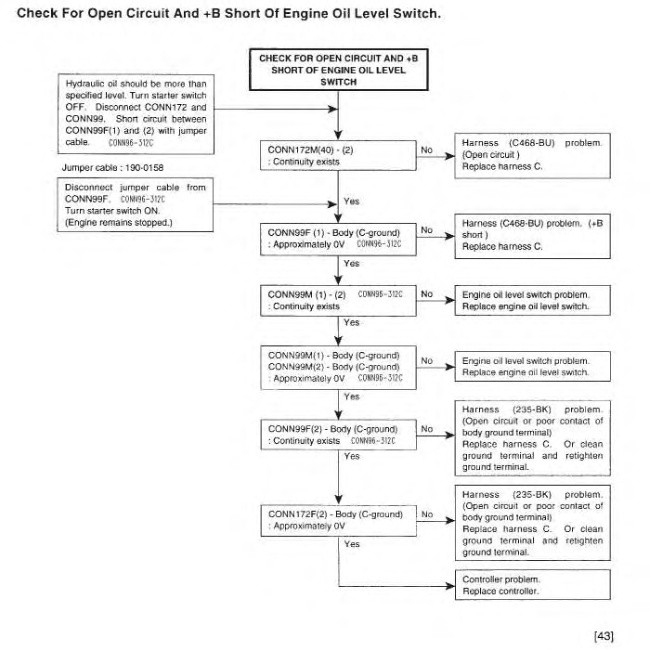

Illustration 3 g00777878

Diagram for 312C and 315C

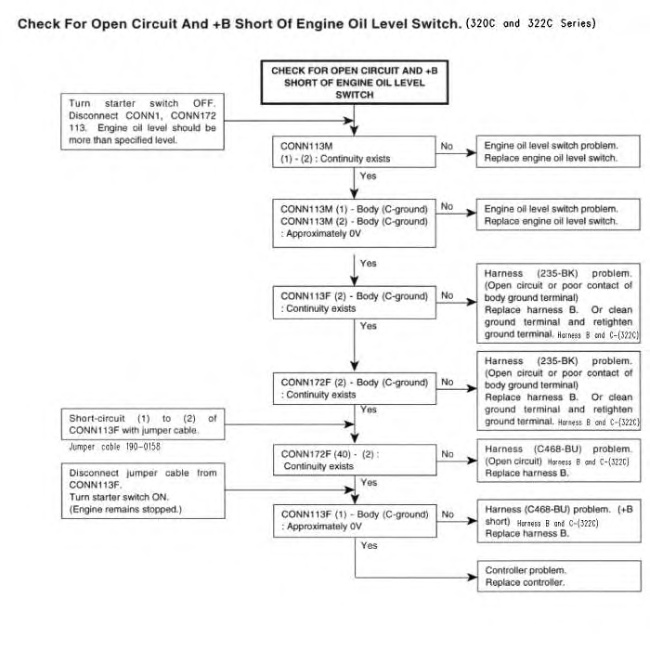

“Check For Open Circuit And +B Short Of Engine Oil Level Switch” ( 319C, 320C And 322C)



Illustration 4 g00772478

Diagram for 319C, 320C and 322C

“Check For Open Circuit And +B Short Of Engine Oil Level Switch” ( 321C)

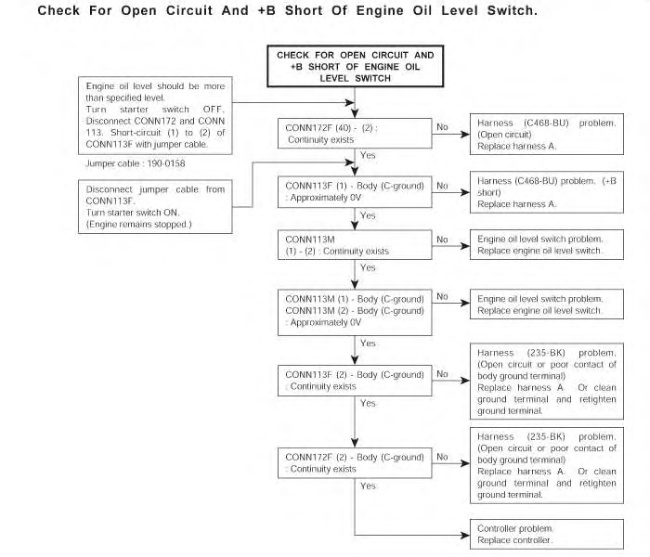

Illustration 5 g00987664

Diagram for 321C

“Check For Open Circuit And +B Short Of Engine Oil Level Switch” ( 318C, 325C, M325C MH, and 330C)

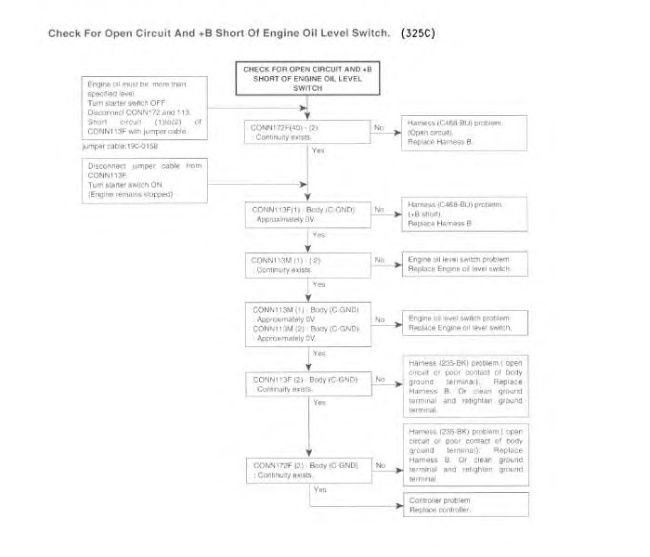

Illustration 6 g00823529

Schematic Of The Engine Oil Level Switch ( 312C)



Illustration 7 g00777110

Schematic Of The Engine Oil Level Switch ( 315C)

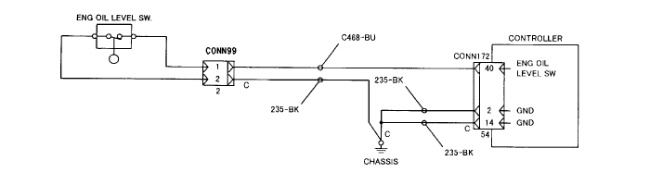

Illustration 8 g00778240

Schematic Of The Engine Oil Level Switch ( 319C, 320C, 320C LRR, 325C, M325C MH, and 330C)

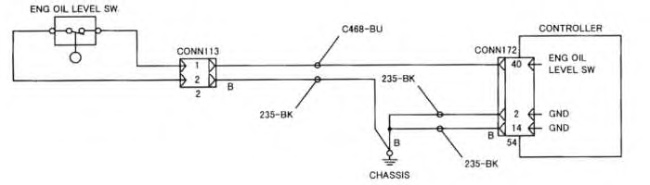

Illustration 9 g00693176

Schematic Of The Engine Oil Level Switch ( 318C)

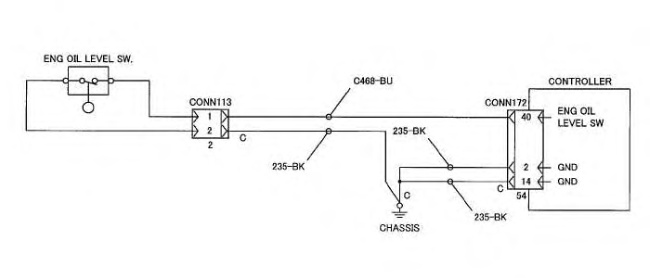

Illustration 10 g01008523
