312C, 315C, 318C, 319C, 320C, 321C, 322C, 325C, 330C and M325C Excavators and 325C MHPU and 330C MHPU Mobile Hydraulic Power Units Engine and Pump Control – V2 – Warning “Return Filter Is Clogged” Is Displayed – Troubleshoot



Illustration 1 g00693214

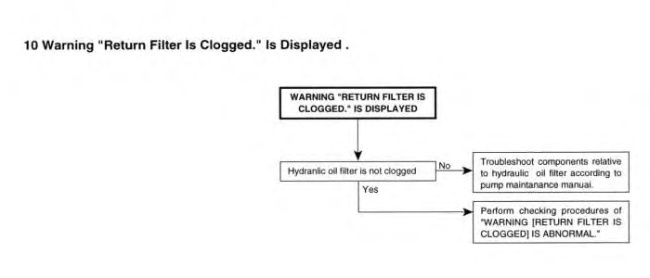

“Warning “Return Filter Is Clogged” Is Abnormal” ( 312C And 315C)



Illustration 2 g00778242

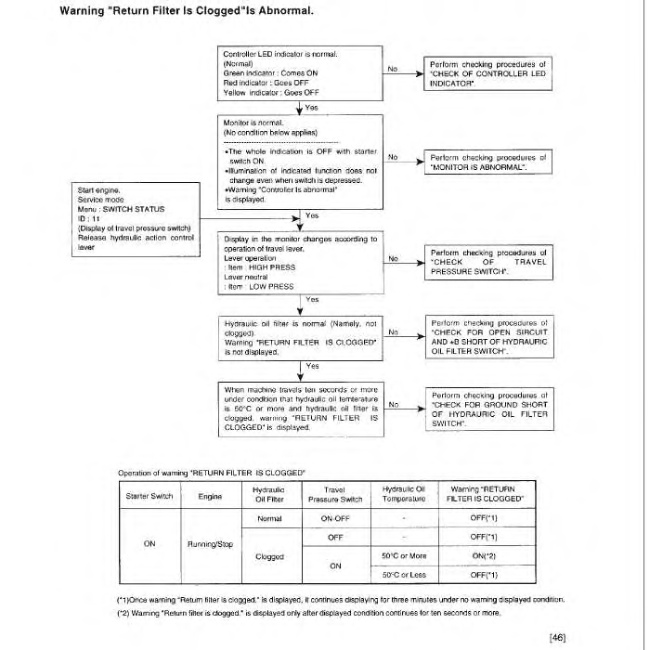

“Warning “Return Filter Is Clogged” Is Abnormal” ( 318C, 319C, 320C, 321C, 322C, 325C, and 330C)

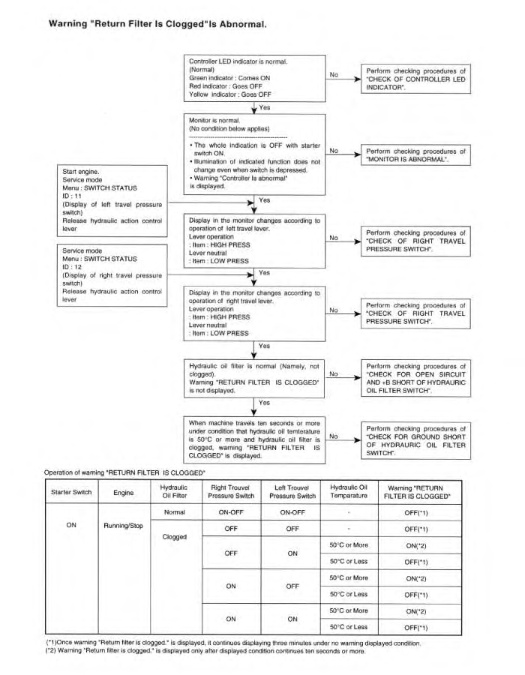

Illustration 3 g00693222

Diagram for 318C, 319C, 320C series, 321C, 322C, 325C, M325C MH, and 330C

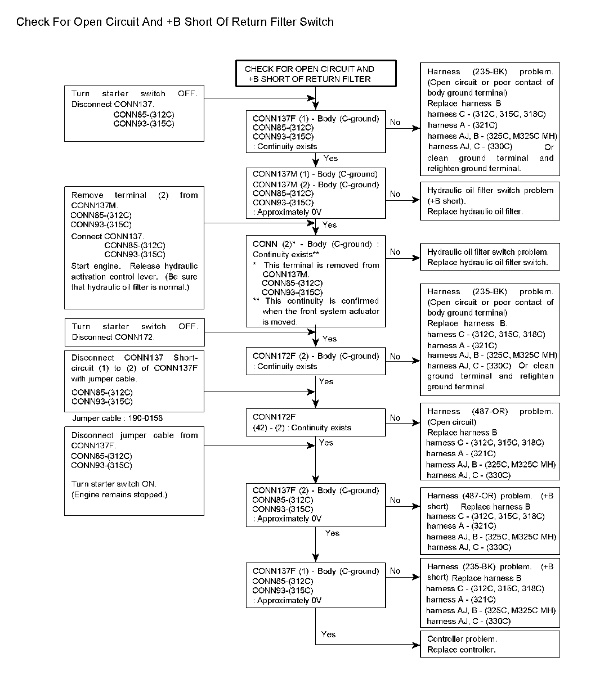

“Check For Open Circuit And +B Short Of Return Filter Switch”



Illustration 4 g01060315

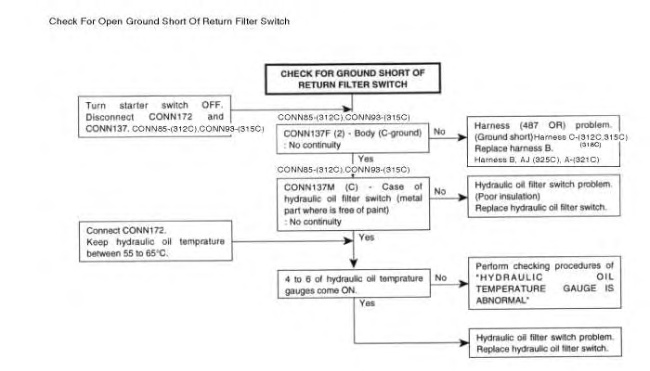

“Check For Open Ground Short Of Return Filter Switch”



Illustration 5 g01008689

Schematic Of The Return Filter Switch ( 312C)



Illustration 6 g00777111

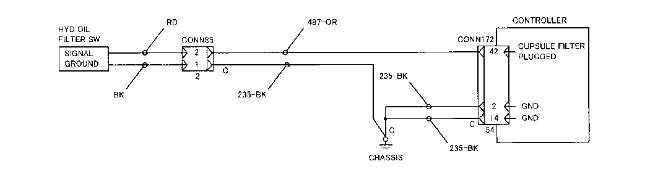

Schematic Of The Return Filter Switch ( 315C)



Illustration 7 g00777112

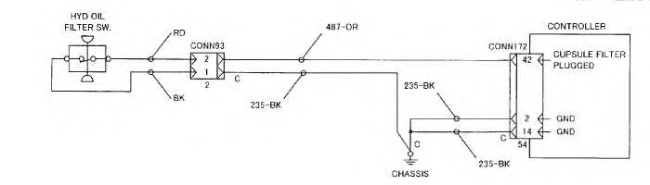

Schematic Of The Return Filter Switch ( 319C, 320C, 320C LRR, and 322C)



Illustration 8 g00693243

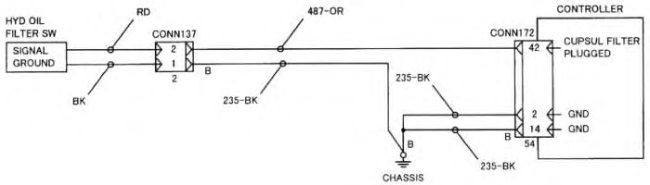

Schematic Of The Return Filter Switch ( 318C)

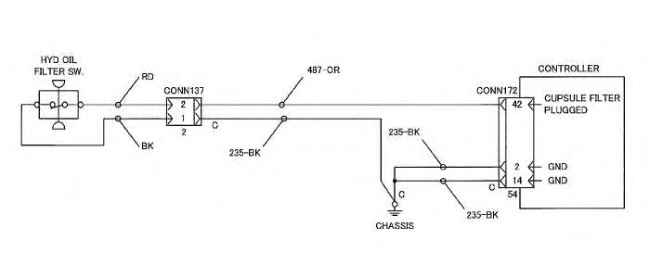

Illustration 9 g01008681

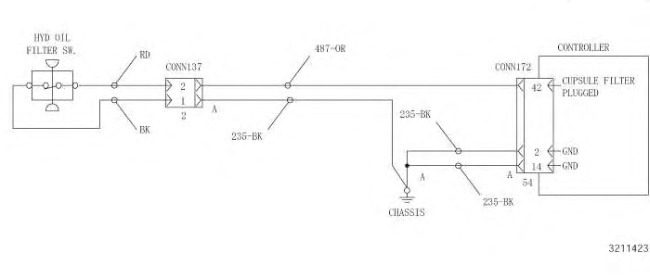

Schematic Of The Return Filter Switch ( 321C)



Illustration 10 g00987691
