320C and 322C Excavators Attachment Hydraulic System – Bucket Cylinder Lines

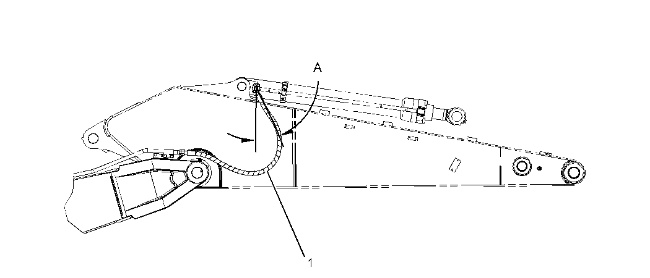

Illustration 1 g03410627

Right side view

Table 1
Specification for 187-5693 Bucket Cylinder Lines Gp
Item     Qty     Part     Specification description
A     –     –     Orient the hose assemblies the angle of 30 ± 3 degrees.
1     2     4I-8785 Hose As     Torque to
160 ± 16 N·m (118 ± 12 lb ft).
