320C and 322C Excavators Attachment Hydraulic System – Travel Motor Lines

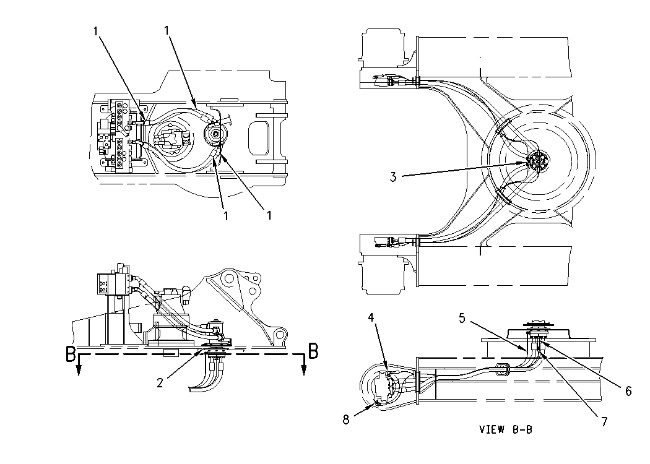

Illustration 1 g00676502

(1) Torque for four hose assemblies … 190 ± 20 N·m (140 ± 15 lb ft)

(2) Apply 9S-3263 Thread Lock between the mating surfaces of the swivel and the cover of the frame assembly under the carriage.

(3) Torque for tee … 40 ± 5 N·m (30 ± 4 lb ft)

(4) Torque for two elbows … 80 ± 7 N·m (59 ± 5 lb ft)

(5) Torque for two hose assemblies … 40 ± 5 N·m (30 ± 4 lb ft)

(6) Torque for tee … 80 ± 7 N·m (59 ± 5 lb ft)

(7) Torque for two hose assemblies … 80 ± 7 N·m (59 ± 5 lb ft)

(8) Torque for two elbows … 40 ± 5 N·m (30 ± 4 lb ft)
