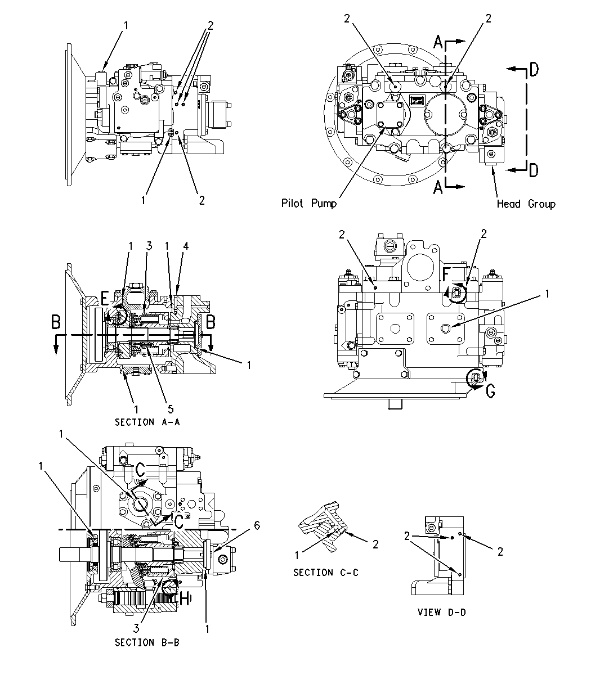

| Illustration 1 | g00877778 |
|
|
| NOTICE |
|---|
|
The main pumps must be filled with hydraulic oil before operation or damage will result. Add hydraulic oil through the drain ports of the left pump (idle side) and the right pump (drive side). |
|
|
Bench Test
SAE 10W oil … 50° ± 5°C (122° ± 9°F)
Pump rotation should be clockwise.
Type of pump … Axial piston (variable displacement)
At the following pressure settings, measure the output flow.
- Output flow … 200 + 2 – 1 L/min (52.8 + 0.5 – 0.3 US gpm)
- Pump delivery pressure … 9800 kPa (1425 psi)
- Power shift pressure … 0 kPa (0 psi)
- Pump speed … 1800 rpm
- Minimum output flow … 163 L/min (43.1 US gpm)
- Pump delivery pressure … 15700 kPa (2300 psi)
- Power shift pressure … 1270 kPa (185 psi)
- Pump speed … 1800 rpm
Main Pump
(1) Apply a small amount of lubricating oil to the seals.
(2) Torque for 38 plugs … 13 ± 2 N·m (115 ± 18 lb in)
(3) Align the port locations for both barrels during assembly.
(4) Torque for three plugs … 25 ± 3 N·m (18 ± 2 lb ft)
(5) 18 118-4057 Springs
- Free length … 35.9 mm (1.41 inch)
- Outside diameter … 9.5 mm (0.37 inch)
(6) Torque for two bolts … 44 ± 4 N·m (32 ± 3 lb ft)

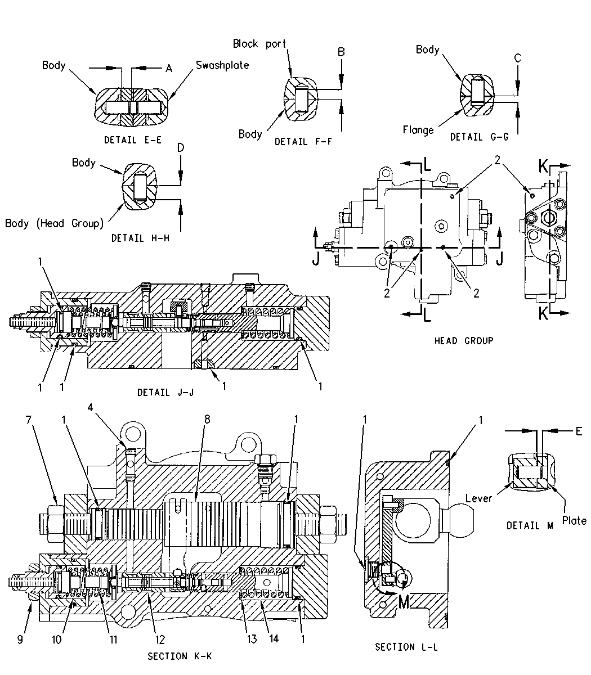

Head Group
|
|
|
|
|
|
| Illustration 2 | g00877807 |
(7) Torque for two nuts … 177 ± 15 N·m (130 ± 11 lb ft)
(8) Apply 155-0695 Thread Lock Compound to the threads of piston.
- Torque … 350 ± 30 N·m (260 ± 20 lb ft)
(9) Torque for one nut … 98 ± 9.8 N·m (70 ± 7 lb ft)
(10) One 200-3244 Spring
- Free length … 47.2 mm (1.86 inch)
- Outside diameter … 27.5 mm (1.08 inch)
(11) One 200-3245 Spring
- Free length … 34.0 mm (1.34 inch)
- Outside diameter … 18.4 mm (0.72 inch)
(12) One 099-3671 Spring
- Free length … 26.5 mm (1.04 inch)
- Outside diameter … 16.0 mm (0.63 inch)
Use the following shims (13) to attain the correct dimension.
(13) Thickness of shim
- 099-3670 Shim … 1.95 mm (0.077 inch)
- 099-6128 Shim … 1.90 mm (0.075 inch)
- 099-6127 Shim … 1.85 mm (0.073 inch)
- 099-6126 Shim … 1.80 mm (0.071 inch)
- 099-6125 Shim … 1.75 mm (0.069 inch)
- 099-6124 Shim … 1.70 mm (0.067 inch)
- 099-6123 Shim … 1.65 mm (0.065 inch)
- 099-6122 Shim … 1.60 mm (0.063 inch)
- 099-6121 Shim … 1.55 mm (0.061 inch)
- 099-6120 Shim … 1.50 mm (0.059 inch)
- 099-6119 Shim … 1.45 mm (0.057 inch)
- 099-6118 Shim … 1.40 mm (0.055 inch)
- 099-6117 Shim … 1.35 mm (0.053 inch)
- 099-6115 Shim … 1.30 mm (0.051 inch)
- 099-6113 Shim … 1.25 mm (0.049 inch)
- 099-6112 Shim … 1.20 mm (0.047 inch)
- 099-6111 Shim … 1.15 mm (0.045 inch)
- 099-6110 Shim … 1.10 mm (0.043 inch)
- 099-6109 Shim … 1.05 mm (0.041 inch)
- 099-3669 Shim … 1.00 mm (0.039 inch)
(14) One 200-3246 Spring
- Free length … 43.4 mm (1.71 inch)
- Outside diameter … 28.5 mm (1.12 inch)
Dimension (A) … 3.8 + 0.00 – 0.40 mm (0.15 + 0.00 – 0.016 inch)
Dimension (B) … 9.0 + 0.00 – 2.2 mm (0.35 + 0.00 – 0.09 inch)
Dimension (C) … 6.0 + 0.00 – 2.2 mm (0.24 + 0.00 – 0.09 inch)
Dimension (D) … 5.80 + 0.00 – 0.25 mm (0.228 + 0.00 – 0.010 inch)
Dimension (E) … 2.60 + 0.00 – 0.25 mm (0.102 + 0.00 – 0.010 inch)
Pilot Pump
Type of pump … Gear pump
Rated speed … 1800 rpm
Output flow … 49 L/min (12.9 US gpm)
