330D, 336D, 336D2, 340D and 340D2 Excavators Machine System Specifications – Pilot Lines – Control valve

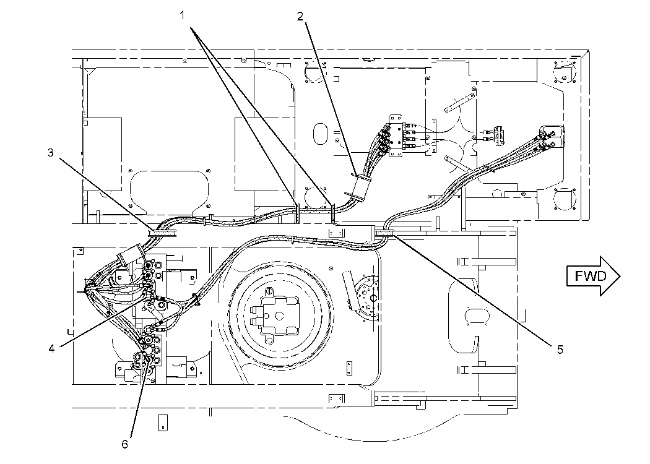

Illustration 1 g02548836

Top view

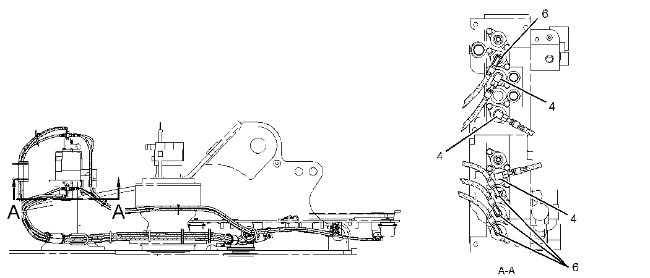

Illustration 2 g02548903

Right side view

Table 1
Specification for 248-9842 Pilot Lines Gp
Item     Qty     Part     Specification Description
1     2     337-1205 Grommet     Apply Loctite spray adhesive to grommets and adhere to the swing frame.
2     14     7K-1181 Cable Strap     Sharp corners at the cutting edge of each cable strap shall not be allowed.
3     1     176-4708 Grommet     Apply Loctite spray adhesive to the grommet and adhere to the swing frame.
4     6     148-8378 Elbow As     Torque to
29 ± 2 N·m (257 ± 18 lb in).
5     1     176-4746 Grommet     Apply Loctite spray adhesive to the grommet and adhere to the swing frame.
6     6     148-8435 Tee As     Torque to
29 ± 2 N·m (257 ± 18 lb in).
