330D, 336D and 340D Excavators Hydraulic System – Fan Motor Speed (Hydraulic Oil Cooler) – Test and Adjust – Reversible Fan (if equipped)

Table 1
Required Tools
Part Number     Description     Qty
9U-7400     Multitach Tool Group     1
  1. Position the machine on level ground.
  1. Stop the engine.
  1. Install a multitach onto the fan. This will be used in order to monitor the fan speed.
  1. Start the engine.
  1. Place the machine controls at the following settings: AEC switch OFF and engine speed dial “10”.
  1. Increase the hydraulic oil temperature to 55° ± 5°C (131° ± 9°F).

    Note: Ensure that the hydraulic activation control lever is in the LOCKED position.

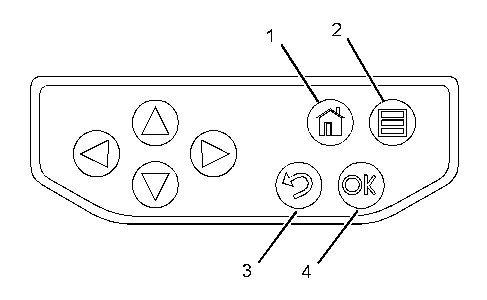

    Illustration 1 g01119002

    Keypad on monitor

    (1) Home key

    (2) Menu key

    (3) Cancel key

    (4) OK key

  1. Press menu key (2) on the keypad.

    Table 2

        MAIN MENU

            SERVICE






  1. Use the right arrow key to highlight the “SERVICE” menu. Press OK key (4) .
  1. Enter the password “FFF2” and press OK key (4).

    Table 3

        SERVICE
        MAINTENANCE
        PASSWORD CHANGE
        DIAGNOSTIC
        ECM INFO
        STATUS
        CALIBRATIONS


  1. Use the up/down arrow keys to select “MAINTENANCE”. Press OK key (4).

    Table 4

        MAINTENANCE
        REVERSE FAN
        FLTR/FLUID INFO
        RECOMMEND INTERVAL
        WORK HOUR INFO




  1. Use the up/down arrow keys to select “REVERSE FAN”. Press OK key (4) .
  1. Follow the instructions in the monitor.
  1. Ensure that the reverse fan performs the following procedure:

    • The fan speed decreases and the engine goes to high idle.

    • After 30 seconds, the fan reverses.

    • After one minute, the engine and reverse fan speed return to max speed. Ensure that the reverse fan speed is 1500 rpm.

    • Stop the reverse fan by pressing the down arrow key. Ensure that the fan resumes normal rotation and speed.
