Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 10

Systems Operation Troubleshooting Testing and Adjusting
10 KENR8601
Systems Operation Section
GSC+P Serial N um ber
g00394402

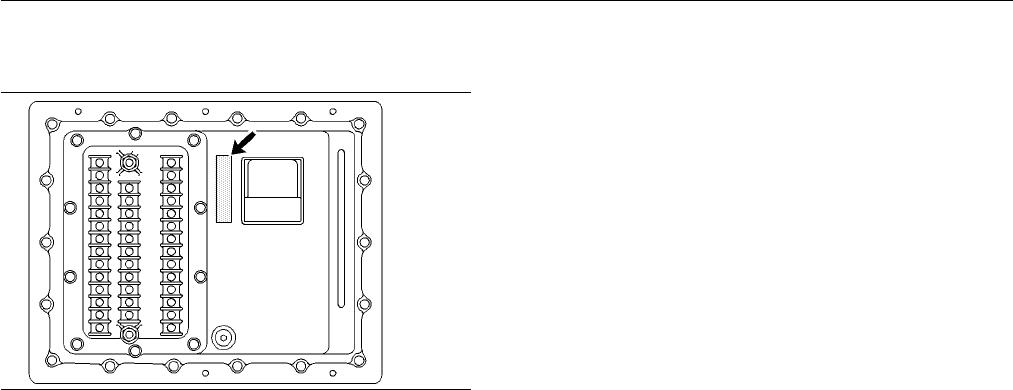

Illustration 7
Location Of GSC+P Serial Number
Rear View Of G S C+P
The serial number of the GSC+P is a ten digit number
which is unique for each GSC+P. The preceding
illustration shows the location of the serial numb er on
the back of the GSC+P. The serial n umber is also
shown to service personnel when the GSC+P is in
option OP2-2. The serial number which is shown on
the display and the actual serial number will always
match. Refer to Sy stems Operation, “AC Fac tory
Calibration Setpoint Viewing OP2-2”.
Fault Indicators
The ten fault indicators are used in order to show
a fault that is present. The ten fault indicators are
also used to describe a fault that is present. The
fault indicators are divided into four groups. The four
groups are the fault alarm indicator (4), the spare
fault indicators (2), the fault shutdown indicator (3)
and the dedicated shutdow n indicators (1).
The yellow fault alarm indicator (4) FLASHES when
the GSC+P detects a fault that is an alarm fault.
The alarm fault does not cause the engine status to
change. The engine is able to start. The engine will
continue operating, only if the engine is running at
the time of the alarm fault. Fault alarm indicator (4)
is accompanied by an alarm fault code that is shown
on upper display (5) when the alarm codes key is
pressed.
The red fau lt s hutdown indicator (3) FLASHES when
the GSC+P detects a fault that is a shutdown fault.
The engine is shutdown if the engine is running and
theengineisnotallowedtostart.Faultshutdown
indicator (3) is accompanied by a fault c ode that is
immediately shown on the upper display (5).
The yellow spare f au lt indicators (2) FLA SH when the
conditions that are associated with that spare fault
are active. The three spare faults can be programmed
to show coolant loss, oil temperature, spare fault
condition or no ass ign ment. Th e sp a re f au lt co ndition
may be a customer generated switch input. Refer
to Systems Operation, “SP Fault Codes” for more
information. The yellow fault alarm indicator (4) or the
red fault shutdown indicator (3) will accompany the
spare fault indicators (2). The spare fault indicators
will tell whether the spare fault input is programmed
to be an alarm condition or a shutdown condition.
The “Spare Fault” indicators have alternate functions
on the GSC+P during synchronization functions.
Spare 1 becomes the voltage indicator. This indicator
will illu minate when the difference between the
bus voltage and the oncoming generator voltage
are within acceptable limits. Spare 2 becomes the
frequency indicator. This indicator will illuminate
when the frequency difference between the bus
and the oncoming generator are within acceptable
limits. Spare 3 becomes the phase match indicator.
This indicator illumina tes when the phase difference
between the b us and the oncoming generator are
within acceptable limits. When the G SC+P is not
performing paralleling functions, the Spare Fault
indicators retain norma l f unction as explain ed
in Systems Operation, “Spare Input/Output
Programming OP6”.
The red dedicated shutdown indicators (1) represent
the following shutdown faults: low oil pre ssure,
emergency stop, high water temperature, engin e
overspeed and engine overcrank. When the GSC+P
detects a fault in one of these areas, the dedicated
shutdown indicator (that corresponds to the fault)
FLASHES. The engine is shutdown if the engine
is running, and the engine is not allowed to start.
No fault codes are associated with the dedicated
shutdown indicators because each indicator has a
descriptive label.
Many of the dedicated shutdown faults depend on
certain setpoin ts in the G SC+P. Refer to Systems
Operation, “Setpoint Programming OP5” for m ore
information. To restart the engine after a shutdown,
refer to Systems Operation, “Shutdown Mode”.
The conditions that are required to activate the
dedicated fault shutdowns are in the following
list. The results of each dedicated fault are in the
following list.
