Electronic Modular Control Panel II+ Paralleling (EMCP II+P) Page 154

Systems Operation Troubleshooting Testing and Adjusting
154 KENR8601
Troubleshooting Section
•
NOT OK – The fuses are blown .
Repair: Replace the fuses.
STOP.
Te st Step 2 . CHECK THE VOLTAGE
OFTHEINPUTSTOTHEBUS
TRANSFORME R BOX (BTB +)
g00603288

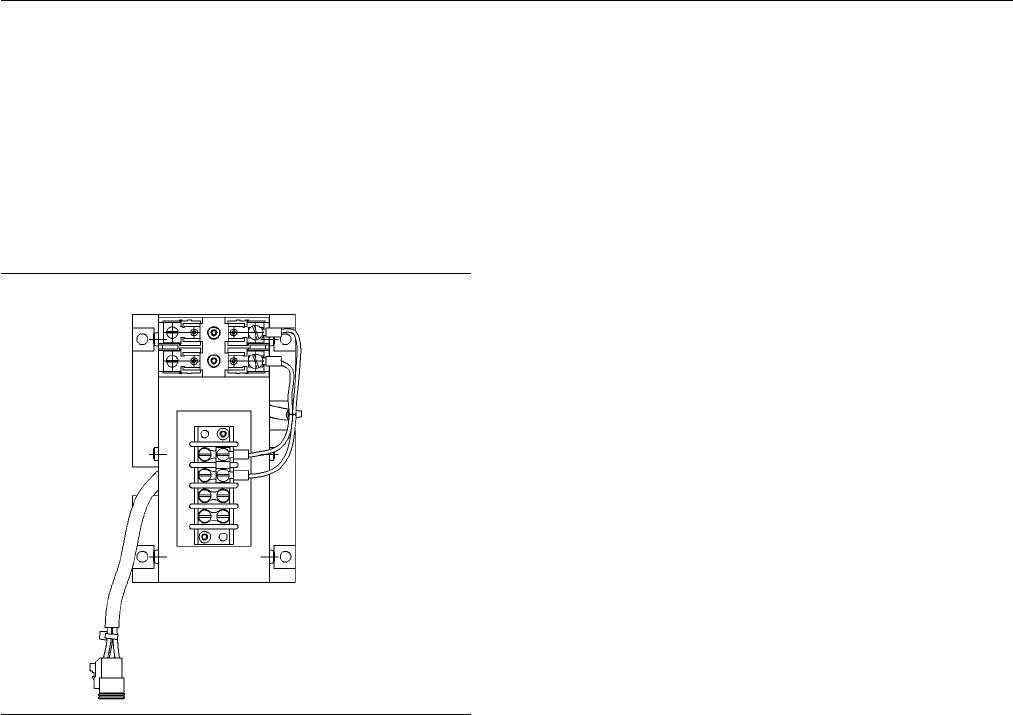

Illustrat
ion 81
Bus transformer box
A. Turn th e ECS to “ S TOP”.
B. Locate the
input wires of the BTB +.
C. Start the engine and run the engine at rated speed.
D. Close the breaker in order to energize the bus.
E. Measure th
e voltage from phase A to phase C.
Expected Result:
The voltage should be the normal operating voltage.
Results:
•
OK – The voltage is the normal operating voltage.
Proceed to
Test Step 3.
•
NOT OK – The v oltage is NOT the normal
operatin
g voltage.
Repair: There is no voltage on phase C. Use
the System Schematic for the BTB + and the AC
schematic in Testing And Adjusting, “Schematics
And W iring Diagrams” section to troubleshoot the
wiring and find the exact cause of the diagnostic.
STOP.
Tes t Step 3. CHECK THE VOLTAGE ON
THEOUTPUTOFTHEBTB+.
A. Stop the engine. Turn the ECS to “STOP”.
B. Install cable probes on connector pins A and B of
three terminal connector “J1” on the BTB+.
C. Start the engine and run the engine at rated speed.
D. Close the breaker in order to energize the bus.
E. Measure the voltage between connector pins A
and B of “J1”.
Expected Result:
The voltage should be equal to the voltage measured
in Test Step 2 divided by 15 ± 2% (14.7 to 15.3).
Results:
•
OK – The voltage is correct. Proceed to Test Step
4.
•
NOT OK – The voltage is NOT correct. The BTB+
has failed.
Repair: The BTB + has failed. Replace the BTB +.
Refer to Testing and Adjusting, “EMPC Electronic
Control (Bus Transformer Box) - Replace”.
STOP.
Test Step 4. CHECK THE INPUT WIRES
OF THE GSC+P FROM THE BTB +.
A. Stop the engine. Turn the ECS to “STOP”.
B. Locate the input wires on pin 17, and pin 18 of
the GSC+P from the BTB +. Install cable probes
on these pins.
C. Start the engine and run the engine at rated speed.
D. Close the breaker in order to energize the bus.
E. Meas ure the voltage between the GSC+P
connector pin 17 and pin 18.
