TH360B Telehandler Operation and Maintenance Manual Page 130

Operation and Maintenance Manual
128 31200243
Maintenance Section

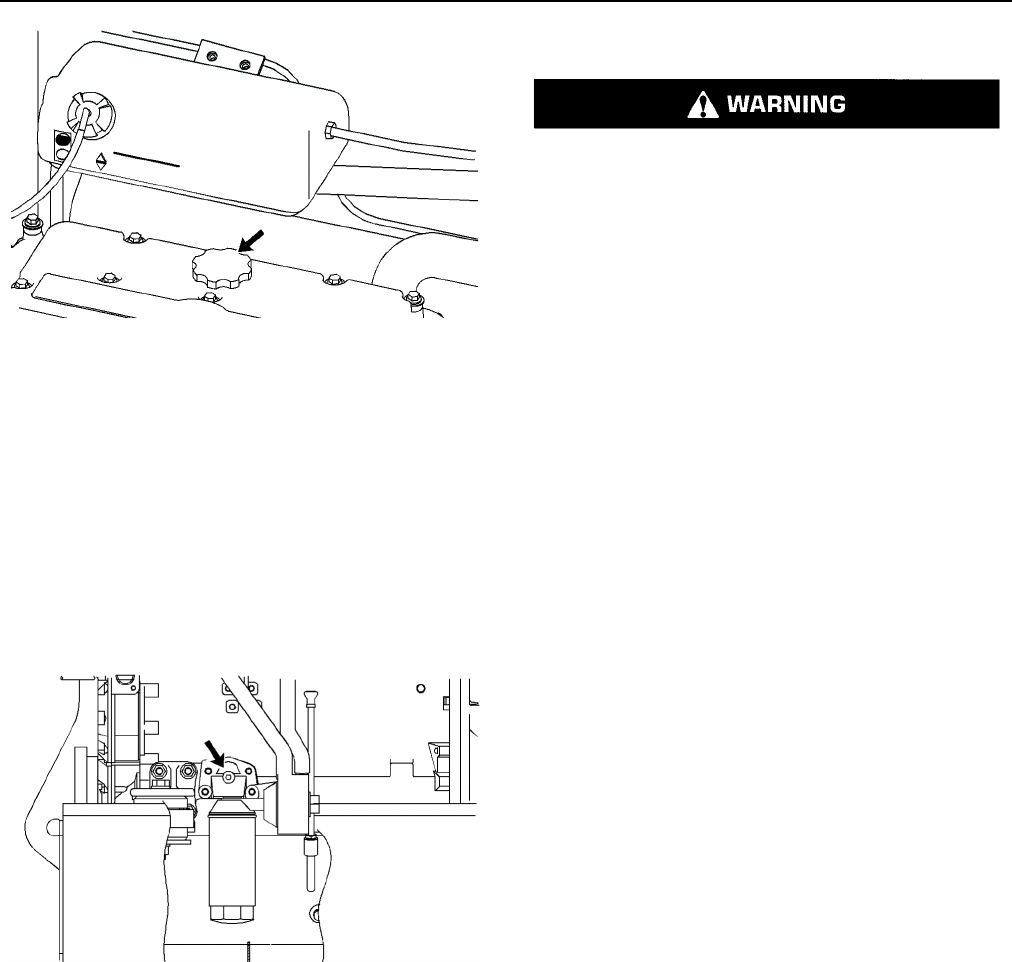

Illustration 244 g01081071
3. Clean the oil filler cap. Remove the oil filler cap. If
necessary, add oil.
4. Install the oil filler cap.
5. Close the engine enclosure.
Engine Oil Sample - Obtain
Park the machine on level ground. Fully retract and
fully lower the boom. Move the transmission control to
the NEUTRAL position and ensure that the parking
brake is engaged.
Illustration 246 g01057330
The oil sampling valve for the engine oil is located on
the engine oil filter base.
Refer to the appropriate Service Manual for more
information about obtaining a sample of the engine oil.
Use SOS Oil Analysis in order to monitor the
condition of your engine.
Engine Oil and Filter - Change
Hot oil and hot components can cause personal injury.
Do not allow hot oil or hot components to contact skin.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, testing,
adjusting and repair of the product. Be prepared to collect
the fluid with suitable containers before opening any
compartment or disassembling any component
containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar
Dealer Service Tool Catalog" for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
Note: Change the engine oil and the filter after every
500 hours. This is the normal interval provided that the
following conditions are met:
• Only genuine Caterpillar filters must be used.
• Only Caterpillar Multigrade Diesel Engine Oil (DEO)
to specification CG-4 or an equivalent must be used.
Refer to Operation and Maintenance Manual,
"Lubricant Viscosities" and the appropriate Service
Manual for more detailed
lubricant information.
• Working conditions must be clean and applications
must be light. Obtain an SOS oil sample at the first
250 hours in order to determine if the oil change
interval can be decreased.
• The sulfur content of the fuel must be between
0.05% to 0.5%. If a higher percentage of sulfur is
present in the fuel, the engine oil and the filter will
need to be changed more often. 0.5% to 1.0% of
sulfur content will require the engine oil and the filter
to be changed after every 250 hours. 1.0% to 1.5%
of sulfur content will require the engine oil and the
filter to be changed after every 125 hours.
1. Before you drain the engine oil, park the machine
on a level surface and engage the parking brake.
The engine oil should be warm before you drain the
oil. Stop the engine.
2. Open the engine access door.
