TH360B Telehandler Operation and Maintenance Manual Page 15

Operation and Maintenance Manual
31200243 13
Safety Section

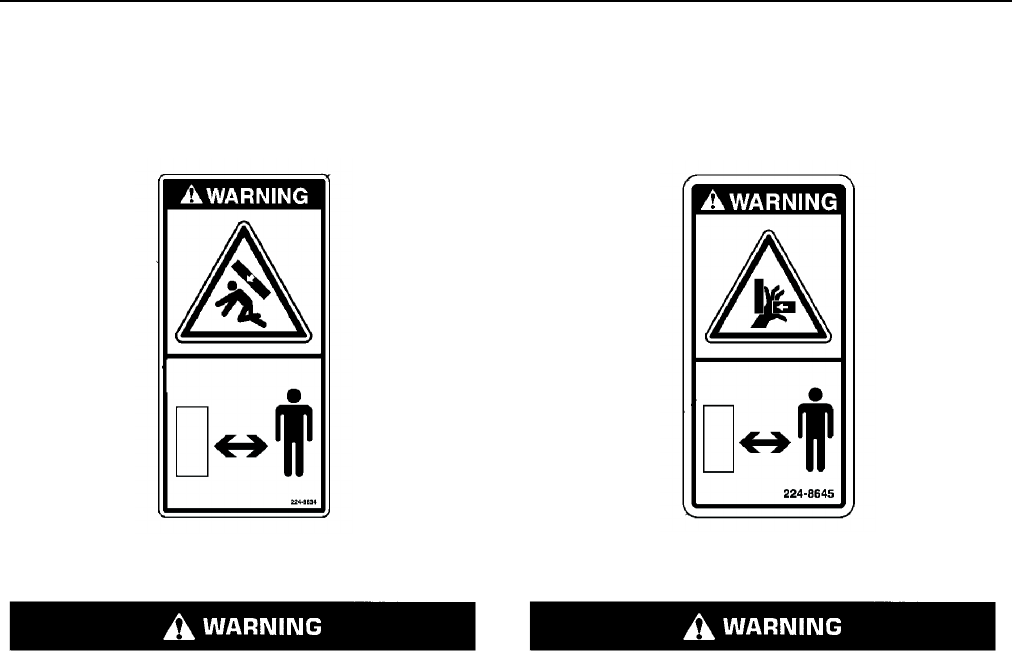

Crushing Hazard (7)
The message is positioned on the underside of the
stabilizer beam on both sides of the machine.
g00930659
A crushing hazard exists when raising or lowering the
stabilizers. Ensure that personnel stand clear when the
stabilizers are being raised or lowered. Operating the
stabilizers when personnel are nearby could result in
personal injury or death.
No Hands (8)
The message is positioned on the top of stabilizer
cylinders on both sides of the machine.
g00930870
A crushing hazard exists when raising or lowering the
stabilizers. Ensure that personnel stand clear when the
stabilizers are being raised or lowered. Operating the
stabilizers when personnel are nearby could result in
personal injury or death.
