TH360B Telehandler Operation and Maintenance Manual Page 48

Operation and Maintenance Manual
46 31200243
Operation Section
Air Suspension (If Equipped)

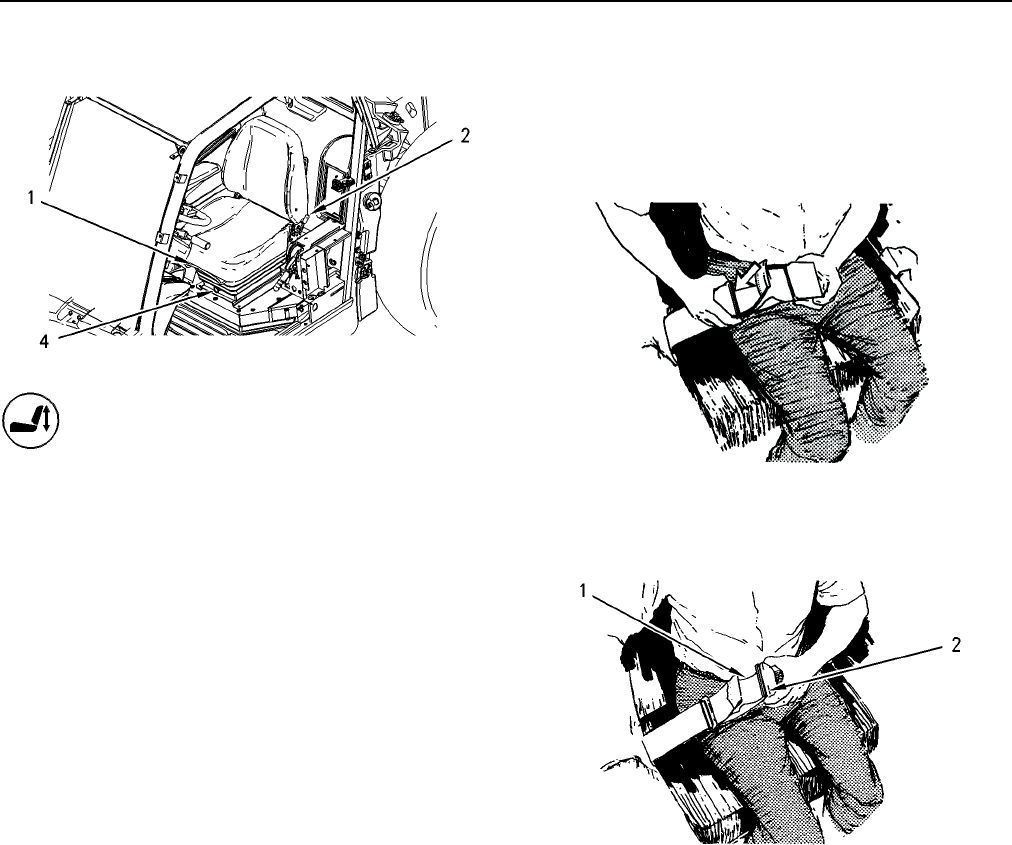

Illustration 53 g00950464
Weight Adjustment Switch (4) - Adjust the
seat height with the weight adjustment switch.
The seat height must be set while the operator
is seated. Adjust the seat height until the indicator is in
the green zone.
Note: The indicator can be anywhere within the green
zone. This allows a range of seat heights for a
particular operator.
When you have adjusted the seat, ensure that all the
controls for the seat are locked in order to prevent
unexpected movement.
Storage Compartment
A storage compartment is located on the back of the
operator seat. This may be used for storing documents
or other small objects.
Seat Belt
Note: This machine was equipped with a seat belt
when the machine was shipped from the manufacturer.
At the time of installation, the seat belt and the
instructions for installation of the seat belt meet the
SAE J386 standards. See your Caterpillar dealer for all
replacement parts.
Always check the condition of the seat belt and the
condition of the mounting hardware before you operate
the machine.
Seat Belt Adjustment for Non-Retractable
Seat Belts
Adjust both ends of the seat belt. The seat belt should be
snug but comfortable.
Lengthening the Seat Belt
Illustration 54 g00100709
1. Unfasten the seat belt.
Illustration 55 g00932817
2. To remove the slack in outer loop (1), rotate buckle
(2). This will free the lock bar. This permits the seat
belt to move through the buckle.
3. Remove the slack from the outer belt loop by
pulling on the buckle.
4. Loosen the other half of the seat belt in the same
manner. If the seat belt does not fit snugly with the
buckle in the center, readjust the seat belt.
