the original position. When the locking mechanism is
engaged, return pin (6) to the original position.
In order to connect the attachment for towing, remove pin
(8). Align the machine and the tow eye for the
attachment. Reverse the machine with assistance in
order to ensure an easy connection.
Secure pin (8) with spring pin (9).

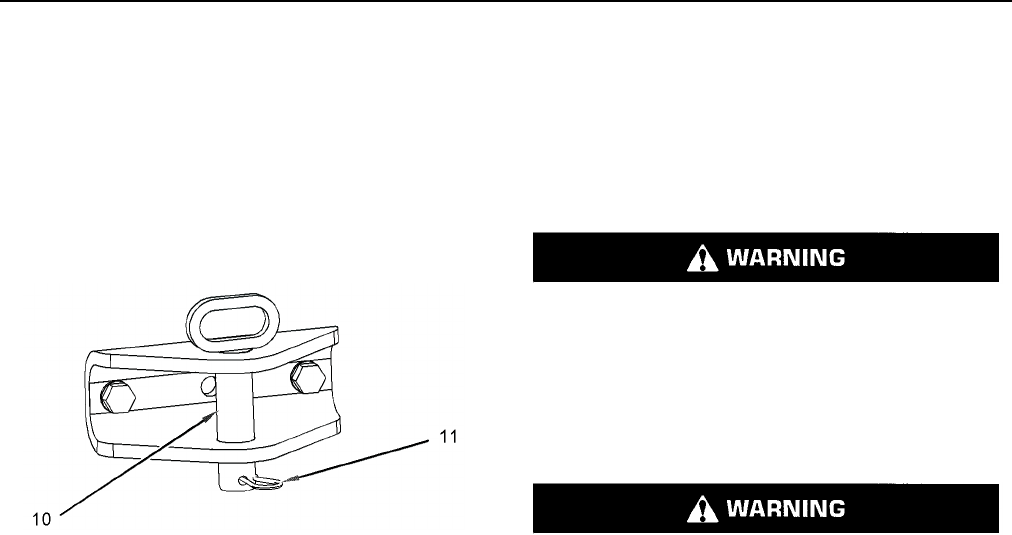

Retrieval Hitch
Illustration 170 g01068549
In order to connect the attachment for towing, remove pin
(10). Align the machine and the tow eye of the
attachment. Reverse the machine with assistance in
order to ensure an easy connection.
Secure pin (10) with spring pin (11).
Note: The retrieval hitch is only suitable for off-
highway use.
Engine Starting (Alternate
Methods)
Engine Starting with Jump Start
Cables
Never "hotwire" or short across the starter terminals!
Hotwiring or shorting across the starter terminals
could bypass the engine neutral start system, damage
the electrical system, and result in unexpected
machine motion or behavior. This could cause
personal injury or death.
Failure to properly service the batteries may cause
personal injury.
Prevent sparks near the batteries. They could cause
vapors to explode. Do not allow the jump start cable
ends to contact each other or the machine.
Do not smoke when checking battery electrolyte levels.
Electrolyte is an acid and can cause personal injury if
it contacts the skin or eyes.
Always wear eye protection when starting a machine
with jump start cables.
Improper jump start procedures can cause an
explosion resulting in personal injury.
When using jumper cables, always connect the
positive (+) jumper cable to the positive (+) battery
terminal first. Next, connect the negative (-) jumper
cable to the frame away from the batteries. Follow the
procedure in the Operation and Maintenance Manual.
Jump start only with an energy source of the same
voltage as the stalled machine.
Turn off all lights and accessories on the stalled
machine. Otherwise, they will operate when the energy
source is connected.
NOTICE
When starting from another machine, make sure that
the machines do not touch. This could prevent damage
to engine bearings and electrical circuits.
Severely discharged maintenance free batteries do not
fully recharge from the alternator after jump starting.
The batteries must be charged to proper voltage with a
battery charger. Many batteries thought to be unusable
are still rechargeable.
