Window Washer Reservoir -Fill
NOTICE
Use Caterpillar nonfreezing window washer solvent or
a commercially available windshield washer fluid in
order to prevent freezing of the windshield washer
system.

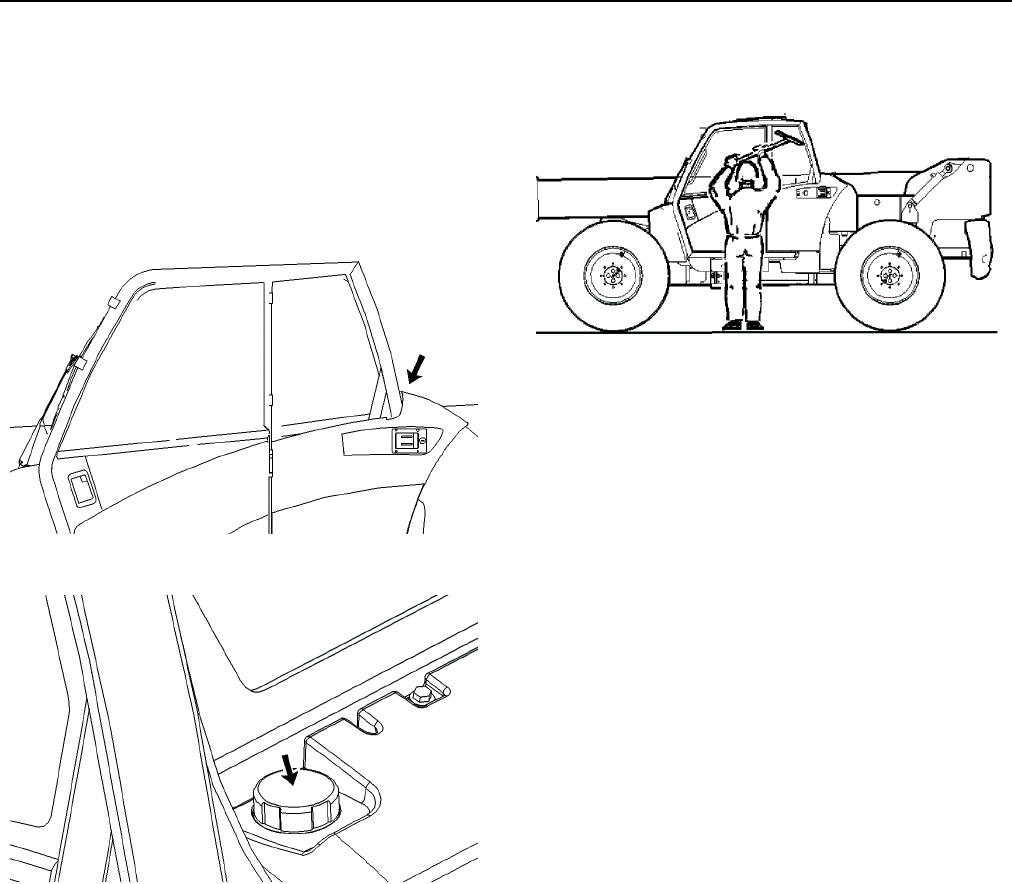

Illustration 302 g00951404
Illustration 303 g00950813
1. Remove the filler cap.
2. Fill the tank with the appropriate window washer
solvent.
3. Install the filler cap.
Window Wiper -Inspect/
Replace
Inspect the condition of the wiper blades. Replace the
wiper blades if the wiper blades are worn or damaged
or if streaking occurs.
Windows - Clean
Illustration 304 g00856748
Use commercially available window cleaning solutions
to clean the windows. Stand on the ground in order to
clean the outside windows, unless handholds are
available.
Work Tool - Inspect/Replace
In order to help minimize unexpected, costly repairs
and downtime, inspections need to be carried out on a
regular basis. The interval between the inspections
depends on the age of the work tool and the severity of
the operating conditions.
More frequent inspections will be required of older
work tools and work tools that are used in particularly
severe operating conditions.
To perform a proper inspection, the work tool must be
thoroughly cleaned. It is impossible to inspect the work
tool properly if the work tool is dirty.
Early detection and repair of faults will ensure
continued operation of the work tool. Also, early
detection and repair will improve the availability of the
work tool. Repair of faults will also reduce the risk of
accidents.
The work tool should only be repaired by a qualified
Caterpillar dealer in accordance with the manufacturers
recommendations. However, if you decide to carry out
your own repairs, consult your Caterpillar dealer for the
recommended repair techniques.
Inspect the work tool before the work tool is attached to
the machine.
Forks
Forks can wear out. The cumulative effects of age,
abrasion, corrosion, overloading, and misuse can
severely weaken forks.
More frequent inspections will be required of older
work tools and work tools that are used in particularly
severe operating conditions or in a rental fleet.
