TH360B Telehandler Operation and Maintenance Manual Page 26

Operation and Maintenance Manual
24 31200243
Safety Section
Machine Security System (9)
If equipped, this message is located on the left side of
the steering column ahead of the engine start switch.

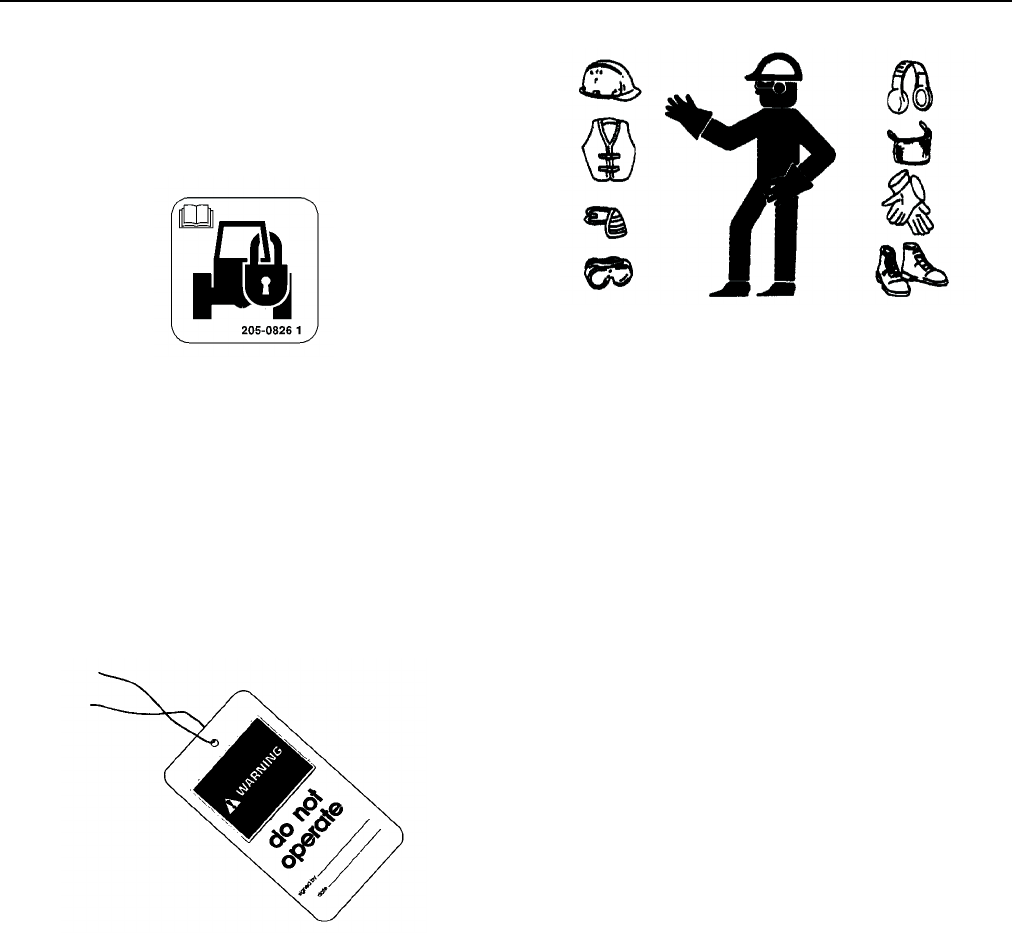

Illustration 18 g00951606
This machine is equipped with a security system. Read
the Operation and Maintenance Manual before you
operate the machine.
General Hazard Information
Illustration 19 g00104545
Attach a "Do Not Operate" warning tag or a similar
warning tag to the start switch or to the controls before
you service the equipment or before you repair the
equipment. These warning tags are available from your
Caterpillar dealer.
Know the width of your equipment in order to maintain
proper clearance when you operate the equipment
near fences or near boundary obstacles.
Be aware of high voltage power lines and power
cables that are buried. If the machine comes in contact
with these hazards, serious injury or death will occur
from electrocution.
Illustration 20 g00702020
Wear a hard hat, protective glasses, and other
protective equipment, as required.
Do not wear loose clothing or jewelry that can snag on
controls or on other parts of the equipment.
Make sure that all protective guards and all covers are
secured in place on the equipment.
Keep the equipment free from foreign material.
Remove debris, oil, tools, and other items from the
deck, from walkways, and from steps.
Secure all loose items such as lunch boxes, tools, and
other items that are not a part of the equipment.
Know the appropriate work site hand signals and the
personnel that are authorized to give the hand signals.
Accept hand signals from one person only.
Do not smoke when you service an air conditioner.
Also, do not smoke if refrigerant gas may be present.
Inhaling the fumes that are released from a flame that
contacts air conditioner refrigerant can cause bodily
harm or death. Inhaling gas from air conditioner
refrigerant through a lighted cigarette can cause bodily
harm or death.
Never put maintenance fluids into glass containers.
Drain all liquids into a suitable container.
Obey all local regulations for the disposal of liquids.
Use all cleaning solutions with care. Report all
necessary repairs.
Do not allow unauthorized personnel on the
equipment.
Unless you are instructed otherwise, perform
maintenance with the equipment in the servicing
position. Refer to Operation and Maintenance Manual
for the procedure for placing the equipment in the
servicing position.
