TH360B Telehandler Operation and Maintenance Manual Page 73

Operation and Maintenance Manual
31200243 71
Operation Section

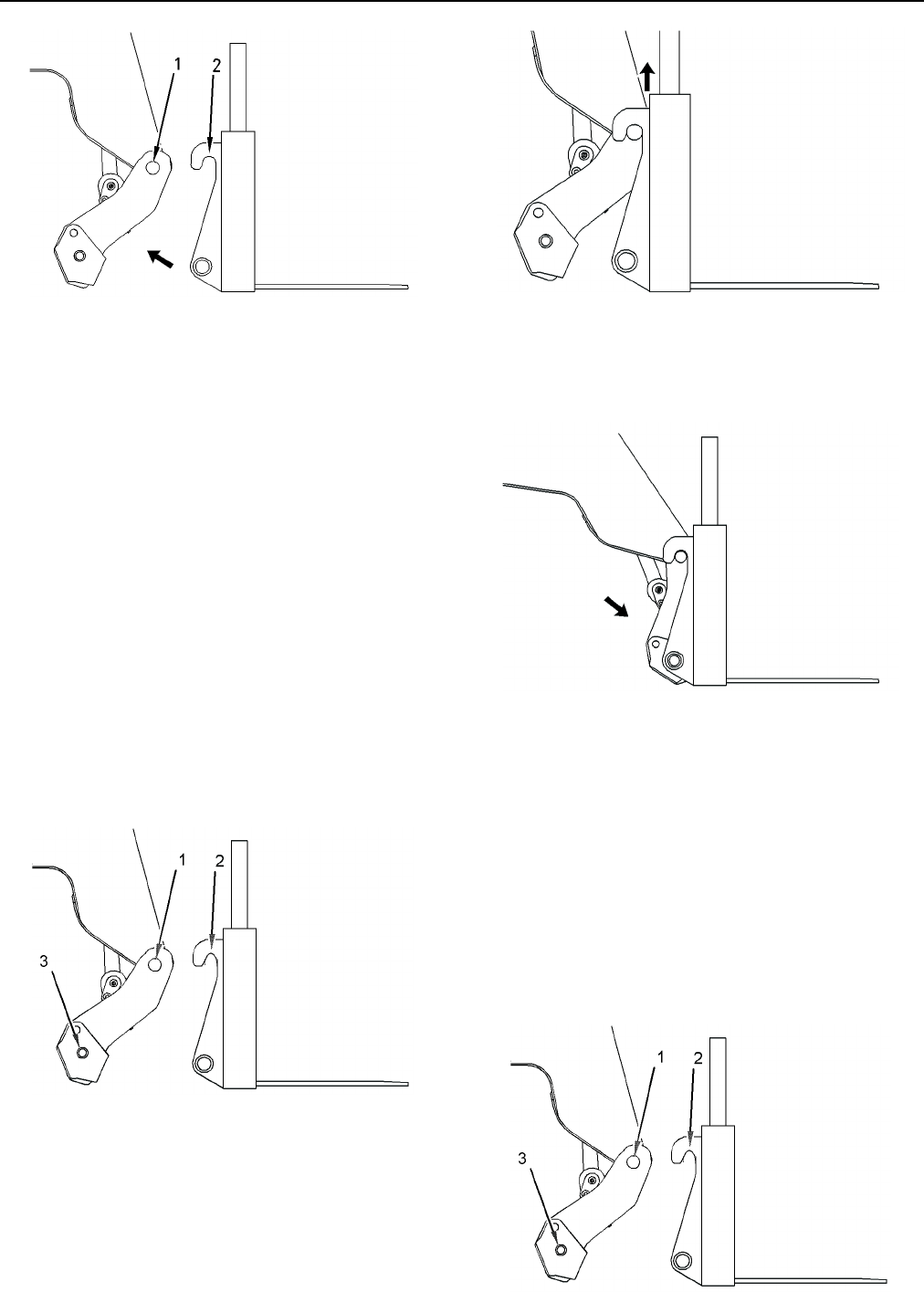

Illustration 100 g00975363
4. Lower the boom and tilt the quick coupler forward
until the carriage is on the ground. If necessary,
block the carriage in order to prevent the carriage
from moving when the carriage is disengaged from
the quick coupler. Lower the boom until tubes (1)
are disengaged from hooks (2). Retract the boom
until the quick coupler is clear of the carriage.
Manual Quick Coupler
Your machine may be equipped with a manual quick
coupler.
Illustrations in the following procedure show a carriage
which is equipped with forks. The procedure is
applicable to all work tools with the same types of
mounting points.
Installation Procedure
1. Lower and extend the boom approximately 2 m
(6.6 ft) so that the quick coupler can be seen from
the cab. Position the quick coupler in line with the
carriage.
Illustration 101 g01060117
2. Remove the retaining clip from pin (3). Remove the
pin.
3. Tilt the quick coupler forward until the quick
coupler tubes (1) are below the level of hooks (2).
Illustration 102 g00975278
4. Extend the boom slowly until the quick coupler
tubes contact the carriage. Raise the boom until the
quick coupler tubes are engaged with the hooks.
Illustration 103 g00975332
5. Tilt back the quick coupler until the lower part of the
carriage is in contact with the quick coupler.
6. Install pin (3) and the retaining clip.
7. Install auxiliary hydraulic hoses or control cables to
the machine (if equipped).
Removal Procedure
1. Extend the boom approximately 2 m (6.6 ft) so that
the carriage is just clear of the ground and visible
from the cab. Tilt back the quick coupler. Disconnect
the hydraulic lines or cables for the carriage from
the boom head (if equipped).
Illustration 104 g01060117
