Programming Cat Electronic Truck Engine Page 71

Programming
Page 70

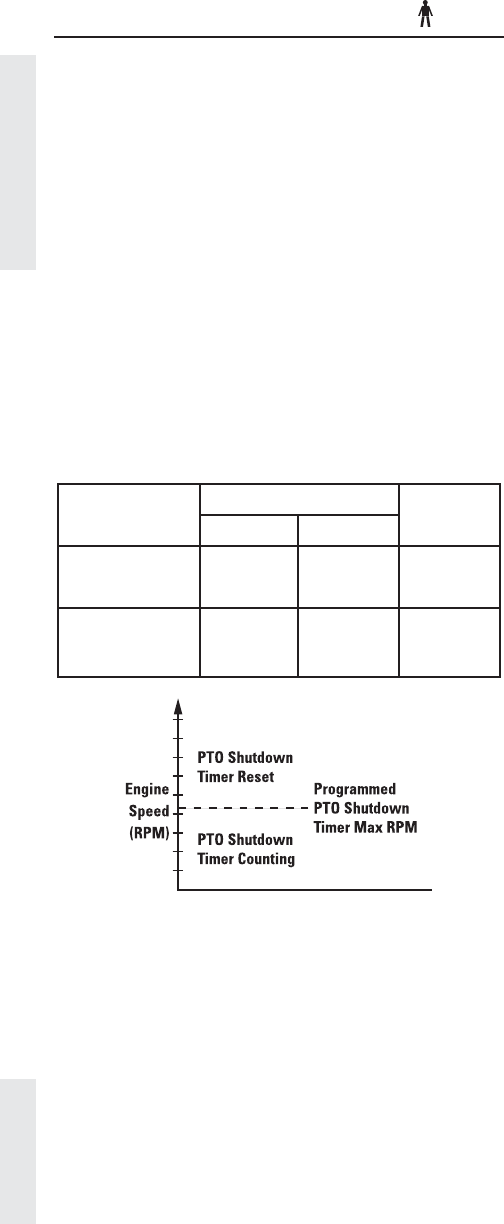

PTO Shutdown Timer Maximum RPM
Description:
PTO Shutdown Timer Maximum RPM can be used
to reset the PTO Shutdown Timer. Programming this
parameter to maximum RPM disables this feature and
will not allow the PTO Shutdown Timer to be overridden
by increasing engine RPM. If programmed to a value
below maximum RPM, the timer will be reset whenever
engine RPM exceeds this programmed value.
Note: The PTO Confi guration must be programmed to
Cab Switches, Remote Switches, Remote Throttle, or
Remote Throttle & J1939 Speed Command before this
parameter can be programmed.
Available:
All heavy-duty on-highway engines covered in this
handbook
Range:
Engine
Range
Cat
Default
Minimum Maximum
EPA’07 and newer
C7 & C9
700 rpm 2640 rpm 2640 rpm
EPA’07 and newer
C13 & C15, all other
engines
600 rpm 2120 rpm 2120 rpm
Advantages:
Allows increased fl exibility to user.
Disadvantages:
None
Recommendations:
✔ Program to the RPM value required for the
application.
