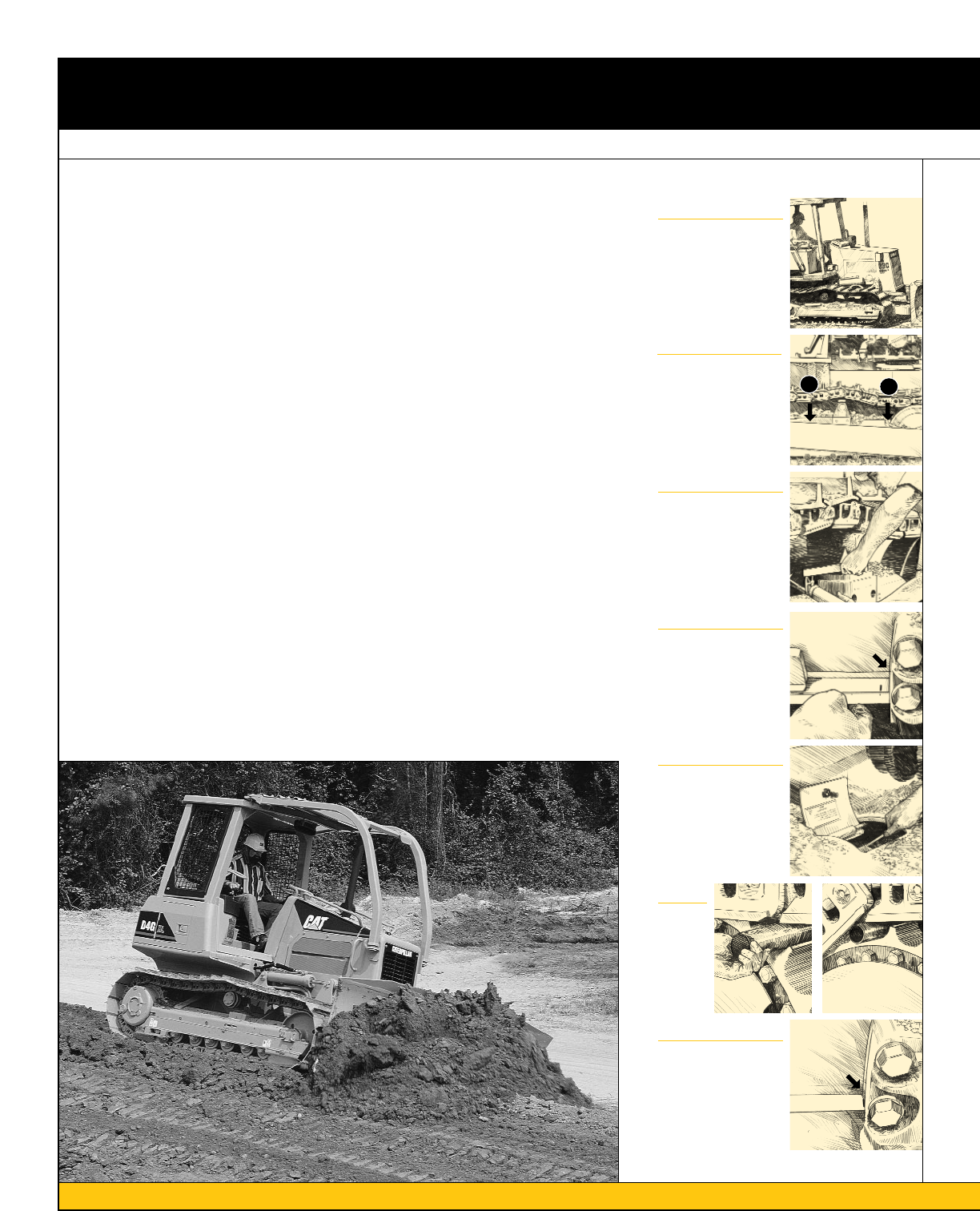

Track Adjustment Procedures
10
Low Sprocket Tractors and Loaders
1.
Move the machine forward and let
it coast to a stop without applying the
brakes. Then park the machine and
turn off the engine.
Place a tight line over the grouser tips
from the sprocket to the front idler.
Track sag should be about 2 inches
or 50 millimeters. If your track
requires adjustment, complete
the following steps.
2.
Connect the grease gun to the fitting
at the track adjustment mechanism
“A” located under the inspection plate.
“B” is the front idler bearing assembly.
3.
Add grease to extend the hydraulic
track adjuster until the idler is at
maximum forward position. The
relief valve should remain closed.
After adding grease, the track should
be almost straight between the front
carrier roller and idler.
4.
On machines with one carrier roller
per side, place a mark on the track
roller frame .4 inch or 10 millimeters
behind the rear edge of the front idler
bearing assembly “B.”
On machines with more than one
carrier roller per side, mark the track
roller frame .5 inch or 13 millimeters
behind the rear edge of the assembly.
5.
Open the hydraulic relief valve.
6.
Place a track pin or drawbar pin
between the sprocket teeth near the
link assembly.
7.
Travel in reverse until the idler
backs up at least .5 inch or 13
millimeters. Move the machine
forward until the pin is free of
the track, then remove the pin.
8.
Close the hydraulic relief valve.
Using the grease gun, extend the
hydraulic track adjuster until the
rear edge of the idler bearing
assembly aligns with the mark
on the roller frame.
The resulting sag should be about
2 inches or 50 millimeters. Operate
the machine in forward and reverse,
then reinspect track adjustment.
