Cat Undercarriage Management Guide Page 11

Management Guide
11

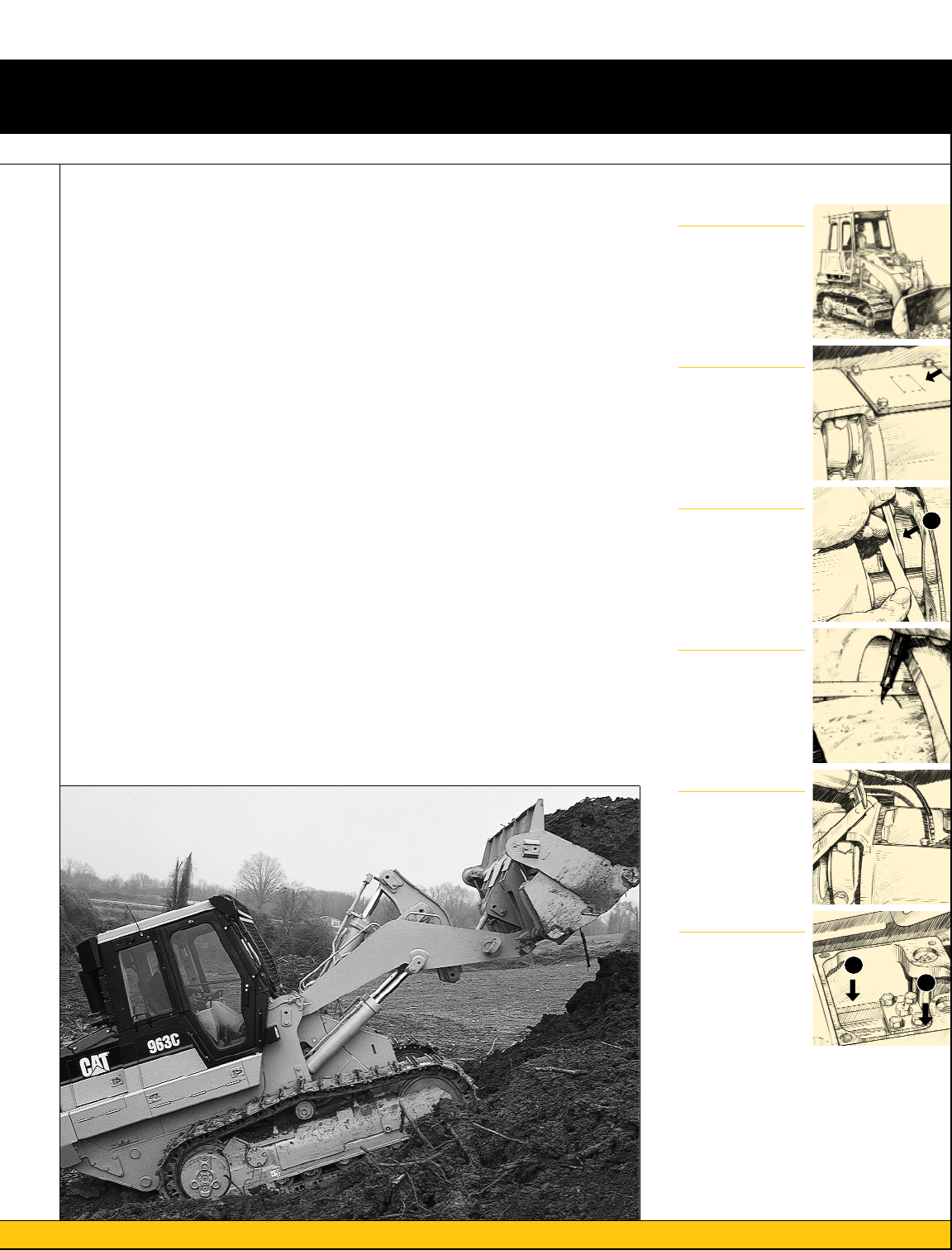

Hydrostatic Loaders
1.
Move the machine forward and let
it slowly come to a stop. Then park
the machine and turn off the engine.
Place a tight line over the grouser
tips from the sprocket to the
front idler.
Measure the distance from the line
to the grouser tips at the lowest point
of sag. Proper track tension is about
2 inches or 50 millimeters.
2.
If the track requires adjustment,
remove the cover for the adjusting
mechanism.
Connect the grease gun to the fitting.
Add grease to move the idler forward
until the track is tight.
3.
Using a straight edge, make a
mark on the rod even with the recoil
housing “A.”
4.
Place a second mark on the rod
.4 inch or 10 millimeter from the
first mark, in the direction of the
idler. On the 973, place the mark on
the rod .5 inch or 13 millimeters in
the direction of the idler.
5.
Open the relief valve and let the
idler drift back until the second mark
is behind the recoil housing. Then
close the relief valve.
Using a grease gun, move the idler
forward until the second mark is
even with the recoil housing. The
resulting sag should be about
2 inches or 50 millimeters.
Operate the machine in forward and
reverse, then reinspect the track.
6.
As wear increases on the track link
and rolling components, the distance
between the piston “B” and recoil
housing “C” will increase. Consult a
Caterpillar Service Manual or contact
us when the distance exceeds:
• 2 inches or 50 millimeters on 943
and 953 Track Loaders
• 2.36 inches or 60 millimeters on
963 and 973 Track Loaders
3
2
1
4
5
6
A
B
C
