Cat Undercarriage Management Guide Page 6

Management Guide
Operating and Maintenance Tips
6
Factors Affecting Wear
One of the best ways to protect your
machine against unnecessary wear is
to make sure it is used properly. All
of the following cause additional
wear on the components of your
undercarriage:

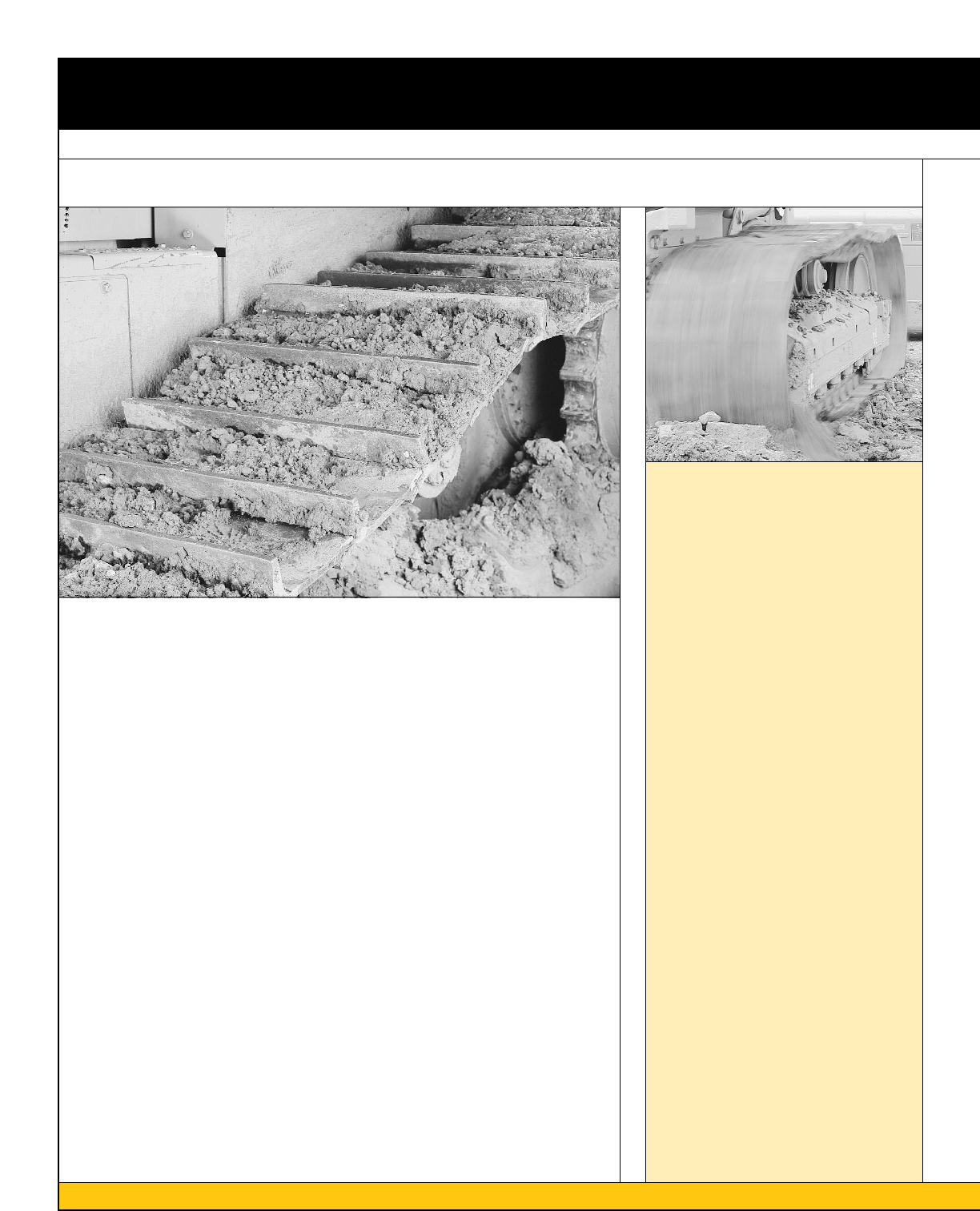

• Slipping the track reduces
production and increases wear
on all undercarriage components,
especially on grouser bars.
• Avoid unnecessary reverse
operation
Non-productive reverse operation
compounds bushing and sprocket
wear. If the machine must be
taxied from one location to
another, reverse operation will
cause more bushing wear
regardless of speed.
• Operating the machine at a non-
productive high speed may cause
link, tractor roller, and idler tread
wear. Wear increases
proportionally to speed.
• Always turning the machine in
one direction may cause link side
rail/track roller flange and idler
flange wear. Wear increases on
one side of the machine because
of the greater horsepower and
distance traveled.
Always use the narrowest shoe possible
Control the operation of your machine
Use narrow shoes which still
provide adequate flotation for your
application. Using wider shoes than
required by your application can
lead to:
• Increased bushing and
sprocket wear
Turning resistance, loads,
and weight increase with wider
shoes, especially in rough
underfoot conditions. This added
stress causes faster wear rates for
bushings and sprockets.
• Increased link, track roller, idler
tread, and flange wear
Using shoes that are too wide
increases the interference between
these surfaces, causing them to
wear faster.
• Loosening of pins, bushings, and
shoe hardware
Leverage forces increase with
wider shoes. In high impact or
especially rough terrain, greater
leverage forces may lead to
premature loosening of bolted
and pressed-fit components.
• Reduction of track joint life
Bending forces are exaggerated
when using wide shoes in high
impact applications, causing
pressed track joints to “open up.”
This may lead to loss of lubricant,
internal wear, and replacement or
reconditioning of track joints
sooner than expected.
• Shoe breakage
Severe turning resistance in
extreme conditions and bending
forces may cause wide shoes to
break.
Your parts and service representative
can help determine the best shoe
width for your underfoot conditions.
